Cyclades AlterPath OnBoard

For upgrade information call 1-800-638-2638.

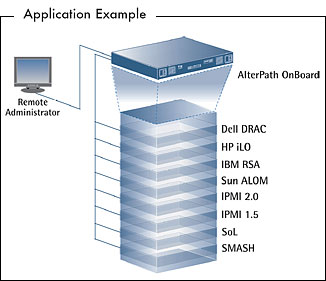

The Cyclades AlterPath OnBoard is a service processor manager that consolidates IP connections, user access and server health information while simplifying out-of-band management of next-generation servers with service processor technologies. With multiple Ethernet ports, the AlterPath OnBoard connects point-to-point with Ethernet-based service processors such as HP iLO, IPMI, Sun ALOM, Dell DRAC, IBM RSA and blade servers. By consolidating service processor Ethernet ports, the AlterPath OnBoard requires only one external IP address for all connected devices, reducing provisioning costs associated with service processors. The AlterPath OnBoard reduces costs even further by routing the service processor traffic through a less expensive out-of-band network that eliminates the use of switch ports on the production network.


The AlterPath OnBoard offers a standard security schema for external access and providing proxy and conversion services to ensure that connected servers are isolated and protected from the external production network. The AlterPath OnBoard allows enterprise-class authentication, authorization and auditing (AAA) security and encryption, and extends this functionality to all servers. By providing a combination of proxy services, translation services, virtual private networks and dynamic access control, users are ensured a secure connection. Furthermore, the AlterPath OnBoard provides controlled access to services in each server's service processor after all authentication and authorization has taken place.

The AlterPath OnBoard provides a standardized feature set for out-of-band management of servers from multiple vendors by extracting the native service processor interface for configuration, KVM, console and power control, and displaying the information in an easy-to-understand format. Server administrators need only learn the simple AlterPath OnBoard interface and not other server management interfaces.

The AlterPath OnBoard adds value by extending the functionality of service processors. Features such as data logging, event detection and notification, SNMP proxy, graphing and alarms for sensors and shared access to management ports are standard on the AlterPath OnBoard.

Cyclades AlterPath OnBoard Applications:

• Manage HP iLO, IBM RSA, Dell DRAC, IPMI, Sun ALOM and others from a single user interface
• Centralize authentication, logging, health monitoring and control of servers
• Provide the security needed to effectively manage service processors remotely

Cyclades AlterPAth OnBoard Benefits:

• Reduce the cost of deploying, monitoring and troubleshooting servers by reducing the number of IP addresses and Ethernet switch ports required for service processors
• Decrease the time to access, monitor and control servers by using a single login and user interface to service processors
• Eliminate security concerns associated with remote management of service processors
• Restrict user access to specific service processor features: power, sensors, console, Web


Cyclades AlterPath OnBoard Specifications:

• Operating System - Linux

• Security

• SSHv1 and SSHv2
• Local, RADIUS, TACACS+, LDAP, NIS, Active
• Directory/NTLM and Kerberos authentication
• Token-based strong authentication (SecurID)
• Local fallback user authentication (remote failure)
• Group authorization from authentication servers
• System event logs
• VPN through PPTP or IPSec

• User Interface

  • Web Management Interface (HTTP/HTTPS)
  • Configuration wizard for first time Web users
  • Command line interface (Linux Shell)
  • OnBoard type commands
  • SNMP
  • Security profiles for quick settings of security features
  • NTP for time server synchronization
  • Optional integrated power management with the AlterPath PM
  • Supports service processor management software from most server vendors

• Service Processor Management

  • Simultaneous access to multiple service processors
  • Support for service processor console redirection (remote KVM)
  • Serial console over LAN
  • Restricted user access to power, sensors, console, event logs or native Web
  • DHCP for dynamic IP address assignment
  • Supports proprietary service processors



CPU Memory Power		Freescale Power QUICC III @ 633 Mhz
		256 MB DDRAM/128 MB compact flash
		Universal AC, single or dual 100–240 VAC, 50/60 Hz, 1.4 A max Dual DC, 36–75 VDC, max input current 5 A
Interfaces		40/24 Ethernet 10/100 BT on RJ-45 1 RS-232 console on RJ-45 1 RS-232 DTE on RJ-45 for power manager or external modem 1 10/100/1000 BT Ethernet on RJ-45 for primary user connections 1 10/100 BT Ethernet on RJ-45 for user connections or failover from primary
Operating Temperature Storage Temperature		50°F to 122°F (10°C to 50°C)
		-40°F to 185°F /-40°C to 85 °C
Humidity		5% to 90% non-condensing
Physical		17 x 10.5 x 1.75 in (43.18 x 26.25 x 4.45 cm) Weight: 9 lb / 4 kg
Certification		FCC Part 15 Class A CE: EN55022 Class A and EN55024 Class A CSA C-Tick ICES-003



Cyclades AlterPath OnBoard Family	Part Numberr	List Price
Cyclades AlterPath OnBoard 1024 SAC 24-port service processor manager, single AC power	ATP8124	$2,995.00
Cyclades AlterPath OnBoard 1040 SAC 40-port service processor manager, single AC power	ATP8140	$3,995.00
Cyclades AlterPath OnBoard 1024 DAC 24-port service processor manager, dual AC power	ATP8224	$3,395.00
Cyclades AlterPath OnBoard 1040 DAC 40-port service processor manager, dual AC power	ATP8240	$4,395.00
Cables and Adapters
