Minicom Smart IP: Raise Productivity, Reduce Costs

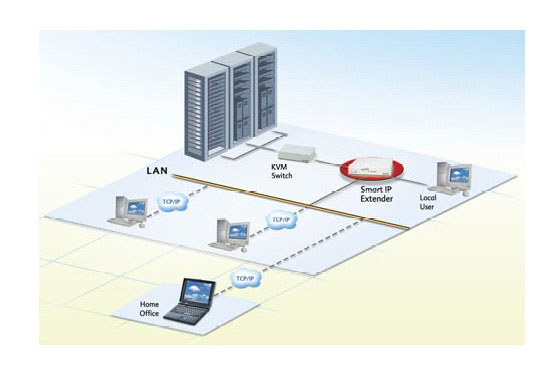

The Smart IP Extender extends your keyboard, video and mouse to
provide sophisticated remote KVM access via IP to servers. Working
from their desks, homes, or any location in the world, network
administrators can manage, configure, troubleshoot and reboot remote
servers. With the Smart IP Extender, businesses can increase the
productivity of their IT staff while saving the costs of downtime,
travel, and expensive service calls.
Minicom Smart IP Secure Data Protection
The industry's most secure encryption guards your corporate data
through every kind of remote access, to efficiently prevent hacking
and security breaches.
Minicom Smart IP (rear view)
Minicom Smart IP Browser-Based Access
Featuring integrated system management, the Smart IP Extender fits
easily into existing IT environments. And its browser-based
functionality avoids the need to install proprietary software on
client or server.
Minicom Smart IP BIOS-level, Multi-Platform
The Smart IP Extender lets you connect directly to servers on the
BIOS level, and is compatible with all major KVM switching systems.
Together with the Minicom Phantom, it can remotely access and control
mixed environments, including PS/2,SUN,and USB devices.
Minicom Smart IP Choose Access via Internet, LAN, or Modem
The Smart IP Extender gives you convenient access using standard
TCP/IP connections to mission-critical servers through the Internet or
LAN. And if the network is down, you can reach remote servers via DSL,
ISDN, modem, or back-up LAN.
Minicom Smart IP Multiple Remote Access Applications
The Smart IP Extender can be used for a wide range of applications:
- Remote KVM access to any single computer or racks of servers
- Network administrators maintaining servers across the campus or
the world
- Technicians troubleshooting remote PCs from their own offices or
homes
- Call Centers providing remote computer support for home workers
- Help desks supplying technical support to customers
- Software vendors providing remote support
Minicom Smart IP Features
-
Extend your
KVM via IP across the building or across the world
-
Remote KVM
access to any single computer or racks of servers
-
Highly
secure encryption protects sensitive corporate data
-
BIOS-level
access gives complete network and OS independence
-
Slash the
costs of downtime, travel expenses, and service calls
-
Choose
access via Internet, LAN, or modem
-
DSL, ISDN or
analog modem back up in case of network failures
-
Browser-based access
-
1 year
warranty
Minicom
Smart IP Downloads & Manuals
|
Minicom Smart IP Specifications |
| Operating System |
Novel, Linux, Windows 98, ME,
2000, XP and later
Windows 98, ME, 2000, XP and later, Linux (Local Computer)
Internet browser with full Java support (Remote Computer) |
| Resolution |
Up to 1280x1024 @60Hz
(recommended resolution should be higher than resolution on local
computer) |
| Local Mouse Driver |
Microsoft Driver or Operating
System default mouse driver |
| Smart IP Unit to Local KVM
Connection |
Screen - HDD15 Keyboard/Mouse
MiniDin6 |
| Smart IP Unit to Local KVM
Connection |
3 in 1 Cable 1.8m
HD15-MiniDIN6-MiniDIN6(both supplied with system) |
| Line Connection |
RJ45 - LAN, Autosensing 10/100
Mbit/s
RJ45 - Euro ISDN (EMEA Version only) 2x64 kbit/s |
| Serial connection |
2 x DB9 COM1 for initial
configuration and external modem, COM2 for power management only |
| Shipping Weight |
Product Weight: 1.48 Kg/3.26 lb |
| Dimensions |
43Hx223Dx225Wmm/1.69Hx8.78Dx8.86W" |
| Power Supply |
85 - 265 VAC
50/60 Hz |
| Warranty |
1 year |
| Operating Temp |
0°C to 40°C |
| Storage Temp |
-40°C to 40°C |
|
Minicom Smart IP Ordering Information |
Part Number |
Online Pricing |
| Smart IP Extender |
0SU21022 |
 |
