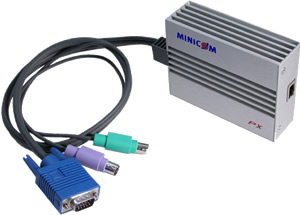

Minicom PX KVM IP Gateway
|
|
The Minicom PX is a high performance KVM
IP Gateway providing complete BIOS level access and control
of your computer or server, from any location. The
compact PX comes with 128-bit SSL security as standard, and
is equally adept in small business environments, remote
support applications, and Enterprise data centers.
This KVM IP Gateway is available in a USB or PS/2 version.
The PX USB features virtual media technology allowing a
remote user to effortlessly move files from his USB or
CD-ROM drive to target servers that may be anywhere in the
world. With PX you no longer have to be physically present
at each server in order to install or recover software
applications and install OS patches. This KVM solution
multiplies the power and reach of every technician or small
business administrator, giving them immediate and total
control over their computer or server whether they are in
the office, at home, or even on the road.
Minicom PX is remotely supports mission-critical
computers and devices - where every instant of added
downtime may be critical to service provision. PX lets you
instantly access the remote computer's BIOS, and accurately
diagnose and even fix system faults - saving you the time
and cost of a field technician roll out. PX is ideal for
market applications running mission critical services on a
single computer/server such as medical, telecom, security,
Software as a Service, and banking and finance.
The single-port PX solves the problem of blocked server
access in the data center. With a number of PX devices
connected, multiple remote users can control multiple
servers, all at the same time. Additional PX IP gateway
devices can be added as your data center grows and the
entire inventory can be managed under Minicom's KVM.net
global
centralized server management system. The combination of
KVM.net and PX is ideal for corporations operating servers
at multiple sites such as testing labs, university campuses,
branch offices, and multi-floor facilities. The
rack-mountable PX also uses Power over Ethernet (PoE)
technology for efficient, clutter free power management.
Minicom PX KVM IP Gateway Application Diagram
Minicom PX IP Gateway Features
- Choice of PS/2 or USB versions
- Single port, palm-sized device
- Virtual Media for complete remote management
- Absolute Mouse Support for reduced installation
hassle
- BIOS level access over IP connection
- Cost-effective & easily scalable
- KVM.net enabled
- Ideal for isolated/widely distributed servers
- Power over Ethernet & external power option
PX Specifications:
|
Mechanical |
 |
Dimensions (HxWxD) |
|
1.2 x 4.13 x 3.15 in. (33 x 105 x 80
mm.) |
|
Product Weight |
|
0.66 lbs. (0.3 kg.) |
|
Shipping Dimensions (HxWxD) |
|
4.1 x 9.0x 5.9 in
(105 x 230 x 150 mm) |
|
Shipping Weight |
|
1.54 lbs (0.7 kg.) |
|
|
|
|
|
|
Environmental |
Operating Temperature |
|
0°C to 40°C / 32° to 104°F |
|
System |
Power Supply |
|
Both PX's - PoE 4.5W.
PX USB, optional external power supply 12V, 1000mA |
| |
Maximum Current Consumption |
|
Less than 135mA from PoE |
| |
Operating Systems |
|
Host Computer - PX PS/2
DOS, Windows, Novell, Linux and SUN Solaris
Host Computer - PX USB
Windows 98 and higher, Novell, Linux, SUN Solaris
and MAC
Client Computer - Both PX's
Windows: 2000, XP, 2003 Server or Vista. With IE 6.0
or 7.0. |
| |
Resolution |
|
Host Computer
Up to 1600x1200@85Hz
Client Computer
Recommended - client computer resolution should be
higher than resolution on the host computer |
| |
Video and Mouse Synchronization |
|
Both auto and manual modes |
|
|
| |
Connections |
|
Both PX's - Ethernet - RJ45 -
10/100 Mbit/sec autosensing
PX PS/2 - Computer - Built-in cable - Screen
HDD15, Keyboard/Mouse MiniDIN6
PX USB - 26 pin connector for interchangeable
Video and USB (keyboard, mouse and virtual media)
cable |
| |
| PX
PS/2 |
0SU70018 |
|
PX USB |
0SU70028 |
|
|
|
|
|
