Lightwave Secure Console Server 3220 with SSH
Centralized Management High-Performance alternative to terminal servers configurable to 32 devices and 17 users (including optional modem card)\

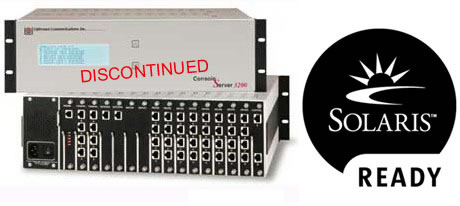

Lightwave Secure ConsoleServer 3220
Enhancing the Console Server 3200 product line, the Secure Console Server 3220 offers the following benefits and features over the conventional CS3200 product: Free KVM Switch / Remote Console Management Project Evaluation
- 10/100 Network Port (TCP/IP)
- Secure Console Server with SSH
- One RS-232 Terminal port (for your local Console) The SCS3220 replaces the standard CONTROL card with the new combination NETWORK / CONTROL card, and fills the four Network / Terminal Card slots with
"Channel Extender" cards. The Channel Extenders are used by the new Network / Control card to extend the number of channels available to the 10/100 IP network connection. [The Channel Extender cards are the same as used with the other 10/100 Network card for the CS3200 system.]

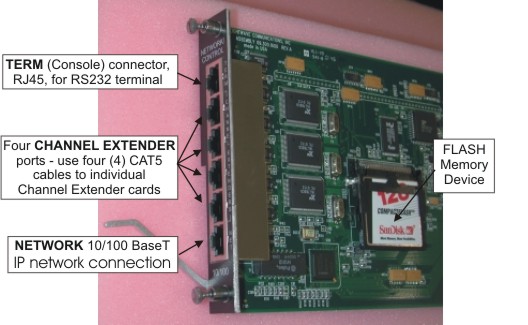

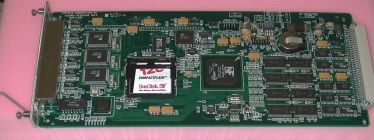

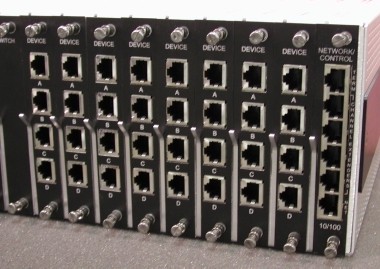

The NETWORK / CONTROL Card replaces the CONTROL card
(far right slot) in 3220

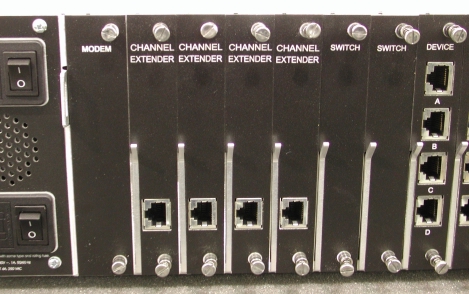

The (4) Channel Extenders are used in place of the
NETWORK or TERMINAL cards.

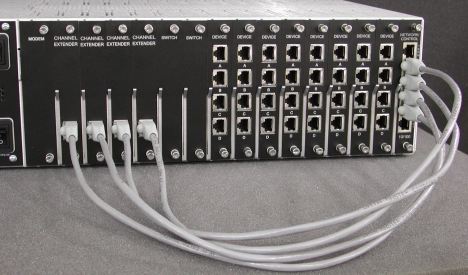

Four (4) short (24 inch long) CAT5 cables (straight-through, fully pinned) are used
between the Channel Extenders and the NETWORK / CONTROL card.

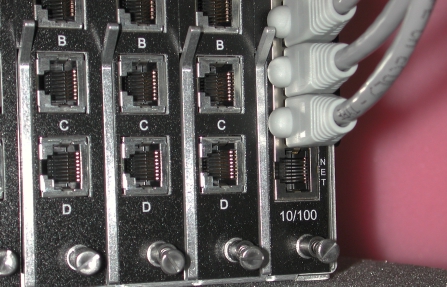

Network Port
The 10/100 BaseT Network connection is accessible on the bottom
RJ45 connector on the Network / Control card.

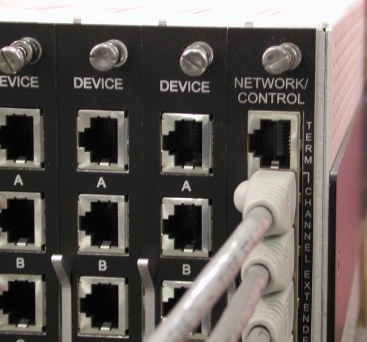

Terminal Port
A Terminal port, or Console (labeled TERM) is available at the top RJ45 connector on the NETWORK / CONTROL Card. This is an RS232-compliant terminal position, the same as found on the TERMINAL card in the CS3200 system. Kit Part Numbers The following 'kit'includes all of the cards and cables required: 500.000.0010 - 10/100 BT SECURE 3220 CARD KIT includes:
- (1) 500.000.0014 -- 10/100 BT CNTL/NTWK Card
- (4) 500.000.0012 -- 3220 CHANNEL EXTENDER Card
- (4) 200.0161 -- CAT5 Cable, 24 inch long
