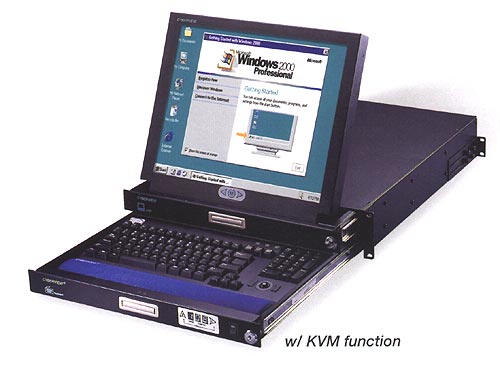

2U Rackmount 17" LCD Monitors with
Keyboard Drawer
2U
Folding Rackmount LCD Monitor with Keyboard Features
- Unique monitor
flip up design allows viewing through closed glass door of cabinet
- Adjustable
mounting brackets from 390 to 650mm ( front to rear 19" mounts)
- Suitable for
600mm deep 19" cabinet
- May be fitted
into an 800mm deep rack by the use of extended brackets on request
- Lightweight
aluminum construction - with a black anodize finish
- Three models to
choose from 13.3", 15", 17" LCD panel
- 17" TFT panel
with 1024 x 768 native resolution
- Built in on
screen display controlled by integral membrane switches
- Keyboard
options supporting twelve languages
- Optional video
input or touch screen
- Custom colors
available for OEM
- All mounting
hardware included
Optional KVM Switch
- Built in KVM
switch function for easy controlling and monitoring up to 8 residing
servers/ platforms
- Support eight
characters password protection and search PC server name
- Auto scan mode
for monitoring PCs and flexible scan time from 5-99 seconds
- LED display for
easy status monitoring
- Supplied with
eight screened cables 6ft long
2U Rack Mount 17" LCD
Monitor & Keyboard Contents
Active matrix
TFT LCD panel
Rear metal case
Analog-to-digital signal converter board
Inverter
8-port KVM
control board
Adjustable
mounting bracket
Ball bearing
telescopic slides
Security lock
KVM LED display
Front handle
Gel wrist-pad
Keyboard w/
trackball
OSD membrane
switches
Front metal
case
2U Rack Mount
17" LCD Monitor Features
-
Panel
17"
LCD panel
-
Display type
TFT/ LCD active
matrix color
-
Resolutions
1280 x 1024 (17") -
Response time
Tr=20ms/ Tf=15ms -
Contrast ratio
300
: 1 typical
-
Brightness
150 cd/ m2 typical
-
Pixel pitch
0.264mm (H) x 0.264mm (W ) -
Panel color
16.7 million display
colors
Viewing angle
160º (Horiz.)/160º
(Vert.) -
Storage temp.
0ºC to 50ºC
-
Operating temp.
-25ºC to 60ºC
-
MTBF
35,000 hours
Power
supply
-
Remote adapter:
110V - 220V AC
input 12V 5A Output
-
Adapter Size:
10.8(L) x 6.1 (W) x
3(H)cm
-
Cable length from mains plug to adapter:
182cm
-
Cable length from adapter to unit:
180cm
-
Safety approval:
UL, CE
-
Mains plug options available
-
Optional -48V DC input
Dimensions
-
Product dimension-
43.9(w) x 8.8(H) x
55(D)cm -
Packing dimension-
70(L) x 57(W) x
20.5(H)cm
