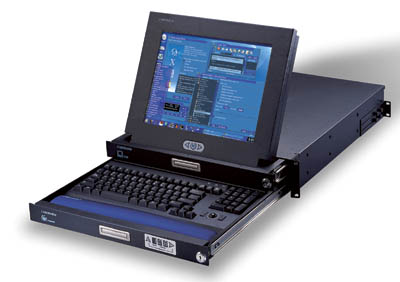

2U 15" Rack Mount LCD Monitor

2U 15" Rack Mount LCD Monitor
2U Rackmount 15" LCD Monitors with Keyboard Drawer

2U Folding Rackmount LCD Monitor with Keyboard Features

  • Unique monitor flip up design allows viewing through closed glass door of cabinet
  • Adjustable mounting brackets from 390 to 650mm ( front to rear 19" mounts)
  • Suitable for 600mm deep 19" cabinet
  • May be fitted into an 800mm deep rack by the use of extended brackets on request
  • Lightweight aluminum construction - with a black anodize finish
  • Two models to choose from 15" or 17" LCD panel
  • 15" TFT panel with 1024 x 768 native resolution
  • Built in on screen display controlled by integral membrane switches
  • Keyboard options supporting twelve languages
  • Optional video input or touch screen
  • Custom colors available for OEM
  • All mounting hardware included

Optional KVM Switch

  • Built in KVM switch function for easy controlling and monitoring up to 8 residing servers/ platforms
  • Support eight characters password protection and search PC server name
  • Auto scan mode for monitoring PCs and flexible scan time from 5-99 seconds
  • LED display for easy status monitoring
  • Supplied with eight screened cables 6ft long




rack mount lcd monitor

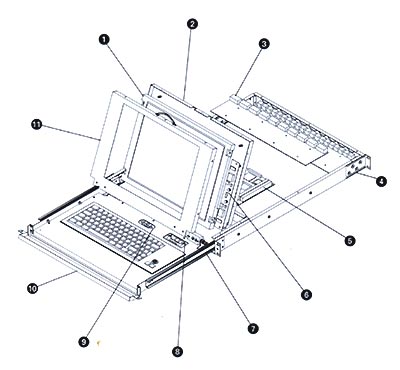

2U Rack Mount 15" LCD Monitor & Keyboard Contents

  • Active matrix TFT LCD panel
  • Rear metal case
  • Analog-to-digital signal converter board
  • lnverter
  • 8-port KVM control board
  • Adjustable mounting bracket
  • Ball bearing telescopic slides
  • Security lock
  • KVM LED display
  • Front handle
  • Gel wrist-pad
  • Keyboard w/ trackball
  • OSD membrane switches
  • Front metal case
  • 2U Rack Mount 15" LCD Monitor Features

    • Panel
      15" LCD panel
    • Display type
      TFT/ LCD active matrix color
    • Resolutions
      Up to 1024 x 768
    • Response time
      Tr=5ms/ Tf=20ms
    • Contrast ratio
      300 : 1 typical
    • Brightness
      250 cd/ m2 typical
    • Pixel pitch
      0.297mm (H) x 0.297mm (W )
    • Panel color
      16.7 million display colors
      Viewing angle
      140º (Horiz.)/120º (Vert.)
    • Storage temp.
      0ºC to 50ºC
    • Operating temp.
      -25ºC to 60ºC
    • MTBF
      35,000 hours

    Keyboard


    • Keyboard:
      Integrated, high-quality PS/2 compatible 16mm Logitech trackball
      84 keys (European layouts), 83 keys ( US layout)

    • Cursor keys retained
      Product dimension - 43.9(W) x 8.8(H) x 44(D)cm
      Packing dimension - 59.5(L) x 57(W) x 22(H)cm

    Power supply

    • Remote adapter:
      110V - 220V AC input 12V 5A Output
    • Adapter Size:
      10.8(L) x 6.1 (W) x 3(H)cm
    • Cable length from mains plug to adapter:
      182cm
    • Cable length from adapter to unit:
      180cm
    • Safety approval:
      UL, CE
    • Mains plug options available
    • Optional -48V DC input

    Dimensions

    • Product dimension-
      43.9(w) x 4.45(H) x 60(D)cm
    • Packing dimension-
      79(L) x 57(W) x 15.5(H)cm

    Discounted Pricing / Online Ordering
    Already know what you need and would just like to view discounted pricing or place an online order?  Rack Mount LCD Monitors
