The Minicom Smart 216IP & 232IP are multi-user IP KVM Switches which enable one local and
two remote users, access and control of up to 32 servers. In addition, two
remote users can operate serial sessions for controlling serial devices such as
routers, managed network switches or PDU's. These rack-mountable, 1U sized
switches feature KVM over CAT5 technology that directly connects the switch to
each computer in the server room, eliminating cable clutter and providing up to
30m/100ft of distance between server and switch. The Smart 216 IP has built-in
web servers enabling two remote users seamless access to target servers via a
single IP address. This IP KVM Switch offers seamless integration into
Minicom's centralized management system - KVM.net® II.

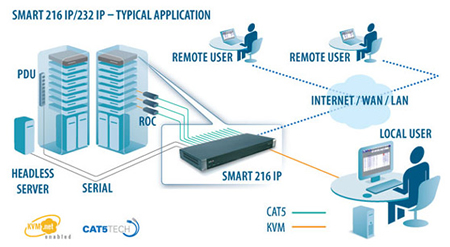

Minicom Smart 216IP / 232IP Application Diagram
Minicom Smart 216 IP & 232 IP Features:
- 3 simultaneous KVM users (2 remote and 1 local)
- 2 additional serial session users
- BIOS level access
- USB keyboard and mouse console
- Compatible with KVM.net ® II centralized management
system
- Innovative Minicom KVM over CAT5 technology
- Multi-platform - PS/2 and USB support
- Extends distance between servers and switch up to 30
meters/100 feet
- Space saving - sleek, 1U rack mountable
- Seamless power control
Smart 216 IP & 232 IP Specifications:
|
Mechanical |
Dimensions (HxWxD) |
 |
1.7 x
17 x 10.6in. (44 x 431 x
270mm.) |
|
Product Weight |
|
5.165lbs. (2.343kg.) |
|
Shipping Weight |
|
7.936lbs (3.6kg.) |
|
Environmental |
Operating Temperature |
|
0°C to 40°C / 32° F to 104°F |
| |
Storage Temperature |
|
-40°C to 70°C / -40° F to 158°F |
|
Humidity |
|
80% non-condensing
relative humidity |
|
System |
Power Supply |
|
100 - 240 VAC 50 / 60 Hz |
| |
Operating System |
|
Target Server
Windows, Novell, Linux, SUN Solaris
Client Computer
Windows 2000 or higher with IE 6.0 or higher and
ActiveX |
| |
Resolution |
|
Target Server
1600x1200@85Hz
Client Computer
Recommended: Resolution should be higher than local
computer resolution |
| |
Video & Mouse Sync |
|
Both auto and
manual modes |
| |
Distance Switch to ROCs |
|
100ft. (30 m.) |
| |
Security |
|
128-bit SSL encryption |
| |
System Cable ROC to Switch |
|
CAT5 UTP/FTP Solid
Wire 2x4x24 AWG |
| |
Connection Type |
|
Ethernet - RJ45 -
10/100 Mbit/sec autosensing
Serial - RJ45 x 2
Local KVM Connection - Screen HDD15, keyboard/mouse
- 2 USB
Servers - RJ45 |
ROC Dongle Specifications:
|
Connection |
ROC PS/2 |
ROC USB |
|
VGA - HDD15 |
VGA
- HDD15 |
|
KM - MiniDin6 |
KM - USB |
|
System - RJ45 |
System - RJ45 |
|
Power |
From computer's Keyboard port |
From USB port |
|
Mechanical |
Dimensions (HxWxD) |
|
0.21 x 0.08 x 0.08 in (65 x 25 x 25mm) |
| |
Product Weight |
|
0.20lb (100g) |
