AutoView Wireless
The Avocent AutoView Wireless solution provides wireless
connectivity between computers and monitors, keyboards, mice
and audio devices. The wireless Transmitter(s) and Receiver(s)
are the building blocks for a user definable 2 x 16 KVM switching
and/or 1 to 8 video broadcasting solution. The firmware features
a user-friendly OSD for managing the connectivity, making adjustments
and tuning the video settings. The industry standard design
makes the AutoView Wireless compatible with virtually any PC,
display technology and operating system, requiring no new drivers,
software or OS upgrades.
AutoView Wireless Features and Benefits
-
AutoView Wireless KVM Connectivity.
Enables wireless connectivity between 2 workstations and
up to 16 computers, and/or wireless video broadcasting from
one VGA source to 8 displays.
-
AutoView Wireless 802.11a Standards-Based
Design. The design uses the 802.11a standard and proprietary
link layer protocol that allows greater throughput performance
while achieving greater security.
-
Secure Connectivity. Advanced Encryption
Standard (AES) provide secure connections.
-
AutoView Wireless Plug-and-play Installation.
Requires no new operating system, drivers or application
software.
-
Convenient OSD. Features a graphical OSD
for making adjustments and tuning the video settings.
-
AutoView Wireless Transmitter. Connects
directly to the computer and serves as the radio interface
device enabling the computer to transmit audio and video
data.
-
AutoView Wireless Receiver. Connects
directly to the user interface devices (keyboard, video
monitor, mouse and audio speakers or headphones), serving
as the radio interface device for these components.
-
AutoView Wireless Configurable. The
number of transmitters and receivers can be easily scaled
for specific configurations.

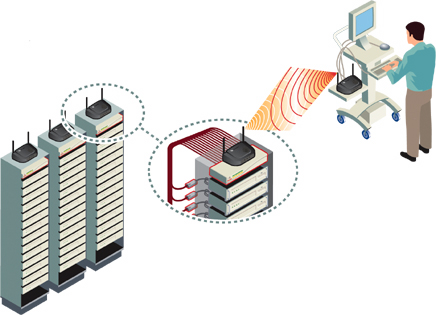

Avocent AutoView Wireless Diagram
Avocent AutoView Wireless Specifications
|
Mechanical |
 |
Height
|
|
1.75” |
|
Width
|
|
6.25” |
|
Depth
|
|
5.25”
|
|
Weight
|
|
1 lb. Transmitter
and Receiver |
|
Antennas
|
|
Extend
4 ¾” above lower surface of housing |
|
|
|
|
|
|
Environmental |
Operating
Temp
|
|
32° F (0°
C) to 104° F (+40° C) |
|
Storage
Temp
|
|
4° F (-20°
C) to 122° F (50° C) |
|
|
|
|
|
|
Power |
Operating
Voltage
|
|
12 VDC@1A
from supplied 100-240 VAC 50/60 Hz switching power supply |
|
Power
Connector
|
|
2.1mm ID,
5.5mm OD, 9.5mm length barrel connector, tip positive |
|
|
Input
|
|
|
|
|
|
|
|
|
Multimedia |
Video
Link Performance
|
|
640x480,
800x600, 1024x768 |
|
Video
Link Compatibility
|
|
VGA, SVGA,
XGA |
|
Video
Interface
|
|
VGA compatible
Analog RGB (15, pin D-shell), non-interlaced
60 Hz refresh rate |
|
Audio
Support
|
|
Digital
audio |
|
|
|
|
|
|
Supported
Hardware |
Computers
|
|
Most standard
IBM compatible computers (with the exception of Macintosh) |
|
Monitors
|
|
VGA, SVGA,
XGA |
|
Peripherals
|
|
PS/2 keyboard,
PS/2 mouse, extended speakers |
|
|
|
|
|
|
Radio |
Radio
Protocol
|
|
IEEE 802.11a |
|
Radio
Frequency
|
|
5150-5250;
5250-5350; 5725-5825 MHz |
|
Radio
Modulation
|
|
Proprietary |
|
Nominal
Output Power
|
|
17 dBm |
|
Range
|
|
XGA video
resolution to 100 feet |
|
Security
|
|
AES encryption,
proprietary 802.11a link layer and proprietary video
compression |
|
|
|
|
|
|
AutoView Wireless Receiver |
AVW3500R-001 |
$595 |
|
AutoView Wireless Transmitter |
AVW3500T-001 |
$595 |
|
Corporate &
Government Discount Pricing is available at 1-800-638-2638
|
Avocent AutoView Wireless Configurations
|
Application
|
No. of users /displays
|
No. of Computers
|
No. of Receivers
|
No of Transmitters
|
|
AVW3500R - 001 |
AVW3500T- 001 |
|
1 x 8 KVM switch
|
1
|
8
|
1
|
8
|
|
2 x 8 KVM switch
|
2
|
8
|
2
|
8
|
|
2 x 16 KVM switch
|
2
|
16
|
2
|
16
|
|
1 x 4 video broadcast
|
4
|
1
|
4
|
1
|
|
1 x 8 video broadcast
|
8
|
1
|
8
|
1
|
