The Minicom Remote Power Switch (0SU52063) allows remote
power management of your data center over the internet. The
switch is ideal for powering and rebooting servers and other
devices in data centers and server farms. The two-in-one
Remote Power Switch also performs environmental monitoring
of the server room.
The Remote Power Switch is part of a comprehensive remote
management solution for the modern data center. It adds to
your existing remote access capabilities, saving you the
time and cost of visiting geograpically remote sites. The
0SU52063 gives you the necessary functionality to complete
remote operations that require you to reboot the server,
complementing out-of-band remote access to servers and
devices from your KVM switching systems.
There are three configurable modes of shutdown operations:
instant shutdown, safe shutdown, and safe reboot. You can
power up, power down, and reboot up to 128 connected servers
and devices from anywhere over the Internet. You can easily
configure power settings of the sockets via the Remote Power
Switch web interface.
The environmentally aware power switch monitors temperature
and humidity to protect your rack or server room from
extreme, and possibly damaging, conditions. Temperature and
humidity triggers can be configured to send administrative
alerts or to perform a power operation under specified
conditions. For example, you can configure the remote power
switch to regulate the temperature in the room if it exceeds
a specified trigger.

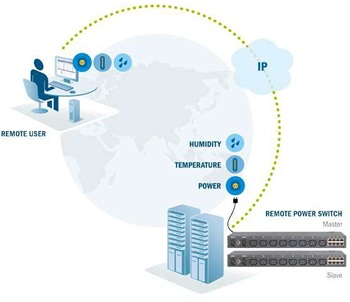

Minicom Remote Power Switch Diagram
Minicom 0SU52063 Features
- Two-in-one power management and environmental
monitoring
- Power UP and Power DOWN devices via any browser
- Monitor temperature and humidity
- Control up to 128 devices
- Safe shutdown mode
- Customizable alerts & timers
Minicom 0SU52063 Specifications
|
Mechanical |
 |
Dimensions
|
|
1.73H x
16.96W x 6.37D in.
(4.4 x 43.1 x 16.2
cm) |
Weight |
|
5.51 lb (2.5 kg) |
|
|
|
|
|
|
Environmental |
Operating Temp |
|
0°C to 40°C / 32°F to 104°F |
Storage Temp
Relative Humidity |
|
-40°C to 40°C / -140°F to
104°F
0 - 95% non - Amp circuit breaker |
|
|
|
|
|
|
Power |
Nominal
input voltage |
|
220V model and 110V model |
| |
Frequency |
|
50/60HZ full range |
| |
Power
Protection |
|
7 amp circuit
breaker |
| |
Power
Control |
|
2 AC inputs each
feeding 4 outputs |
| |
Input |
|
2 input connectors IEC320P |
| |
Output |
|
8 x IEC320R |
| |
Maximum
output capacity |
|
2 x 7Amp |
|
|
|
|
|
|
|
|
Connectors |
Link
Interface |
|
2 x RJ11, connection to
cascaded unit |
|
|
Safe
shutdown |
|
8 x RJ11 |
|
LEDs |
Red |
|
On/Off status 1 LED for each
outlet |
|
|
Yellow |
|
Indicates the ID no. of iLink
cascade- 16 LEDs |
|
|
Remote
Power Switch Manager |
|
Remote
Power Switch Slave |
|
LAN Interface |
RJ45, 10/100M Auto Detect |
|
N/A |
|
Modem |
RS232 |
|
N/A |
|
Environmental |
RJ11 |
|
N/A |
|
Reset button |
Yes |
|
N/A |
