Dataprobe ip815, ip820
Dataprobe ip815 Remote Reboot Solutions

Dataprobe ip815, ip820

Dataprobe iP815 Remote Reboot
Dataprobe iP815

Dataprobe iP815/iP820 Web/Telnet controlled 8-Outlet Power Strip
These Remote Controlled Power Strips allow web browser control of eight A/C power outlets. These units connect directly to 10baseT Ethernet and are IP addressable. Each outlet can be independently turned on, off or cycled for power-on reset (re-boot). 4 outlet models can be easily expanded to eight outlets. These units use standard NEMA 5-15 North American Line cord and Outlets.

Dataprobe iP815/iP820 Operation

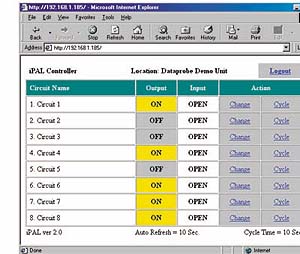

The iP-815 and iP-415 are controlled from a web browser. Once a connection is established and a security login is approved, each of the outlets can be controlled by clicking on the appropriate hotlinks. Toggle and Timed Cycle functions are provided. The status of each outlet is clearly displayed. The unit can also be controlled from a Telnet client using menu selections.

Dataprobe iP815/iP820 Remote Reboot Features:

Indicator lamps display status of each outlet

User defined names for each outlet

Serial Port for Out-of-Band Backup Access

Internal Modem Option

Dataprobe iP815/iP820 Remote Reboot Specifications:

Physical:  EIA rack mount metal enclosure 1.75" H x 19.0" W x 8.75" D
A/C Input:  15 Amp Models: NEMA 5-15 plug, Six foot line cord 14/3
20 Amp Models: NEMA N5-20 plug, Six foot line cord 12/3

Control Port:   10base-T Ethernet, D9 Serial or RJ11 Line with Modem Option

Switched Outlets:  Standard 3 prong NEMA 5-15 connection. 12 Amps max. per receptacle

TOTAL Max. Current Rating For All Connected Devices:  15 Amps for iP-815 and iP-415, 20 Amps for iP-820 and iP-420

Dataprobe iP415/iP420 & iP815/iP820 Remote Reboot Models:

iP-815        Web Controlled 8 Outlet Power Strip, 15 Amps
iP-815-M   Web Controlled 8 Outlet Power Strip, 15 Amps with internal modem
iP-820-M   Web Controlled 8 Outlet Power Strip, 20 Amps with internal modem
