Raritan Dominion XRO Solution
|
|
The Raritan Dominion XRO family has been discontinued.
Please go to the
Raritan Dominion KSX II page for alternate product
information.
The Raritan Dominion XRO is a combination of the Dominion
SX and KX101 models. Together the DSX and DKX101 units
pack secure, out-of-band, remote KVM access and control, serial
device control and power control in a 1U form factor. The DXRO
enables remote management of servers, headless Servers, LAN
and WAN equipment, serially controlled power strips, telecom
equipment --- anything likely to be found in a small office
or branch office server closet. Unlike software-based in-band
solutions, the Raritan XRO's out-of-band capability assures
device access even if the OS fails or the network is down. A
built-in modem provides emergency access if the network or internet
is down.
Dominion XRO's KVM-over-IP access is enabled by single-user,
single-port devices connected to each target server. With a
dedicated channel to each server, the risk of blocking inherent
in switched KVM architectures is eliminated. Serial-over-IP
access at each site is provided via a 1U, rack-mounted component.
When the Raritan DXRO is deployed with Raritan's CommandCenter
Secure Gateway centralized management appliance, hundreds of
remote sites can be consolidated into a single logical network,
with access via a single sign-on to a single IP address, to
streamline administration, security and regulatory compliance
reporting.

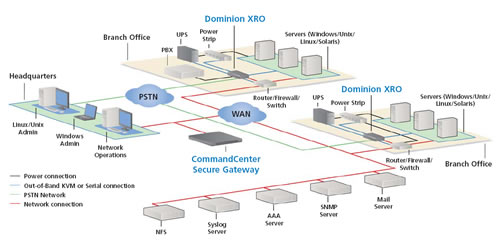

Raritan Dominion XRO Diagram
Dominion DXRO is available in 6 models which
provide a choice of port densities and price points for businesses
with just a few or many remote sites.
- Supports remote management of 1 to 3 servers and 4 to
8 serial devices.
- KVM-over-IP access provided via
KX101
units; Serial-over-IP access provided by
Dominion SX
- Integrated remote power control for remote server reboots
- Out-of-Band access via built-in modem for emergency
access
- Plug-and-play appliance architecture means no external
software or servers required
- Certified to work with CommandCenter Secure Gateway
Raritan Dominion XRO Features & Benefits
- Appliance-based architecture for “Plug and Play” operation
(no software required)
- Built-in modem
- Dedicated power control port
- Local port for rack access
- Supports multiple hardware platforms (PS/2, Sun and
USB servers)
- 128 Bit Encryption – SSH & SSL
- Choose from 4 or 8 Serial Ports
- Up to 3 KVM console ports
- Single, consolidated view of all IT devices (when deployed
with CC-Secure Gateway)
- Single sign-on
- Idle Timeout and Session Disconnect
Raritan Dominion XRO Serial Unit (Dominion SX) Specifications:
|
Mechanical |
 |
Dimensions
|
|
11.34"W x 10.7"D x 1.75"H
288mm x 270mm x 44mm |
|
Form
Factor
|
|
1U rack mountable |
|
Weight
|
|
4-Port Models:
4.61lbs / (2.08 kg) to 4.81 lbs / (2.17 kg)
8-Port Models: 4.81lbs / (2.17 kg) to 5.0 lbs
/ (2.26 kg) |
|
|
|
|
|
|
Environmental |
Operating Temp
Humidity
Altitude
|
|
32°F (0°C) to 104°F (40°C)
20% - 85% RH non-condensing
Operates properly at any altitude between 0 to 10,000
ft. |
|
|
|
|
|
|
Power |
Operating Voltage
Dual Power
|
|
110/220V auto-switching
50-60 Hz
DXRO-81, DXRO-82 and DXRO-83 only |
|
|
|
|
|
|
|
|
Remote
Connection |
Network
|
|
10/100 Ethernet (RJ45)
port — one or two |
|
Protocols
|
|
TCP/IP, PPP, PAP, HTTP,
HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP |
|
Modem
Connectivity
|
|
Dedicated Modem Port |
Raritan Dominion XRO KVM Unit (KX101) Specifications:
| |
| Dominion
DXRO-41 4 serial ports; 1 KVM port, power control
port and built-in modem, with optional 19" rack
mount kit |
DXRO-41 |
$1,700 |
| Dominion DXRO-42
4 serial ports; 2 KVM ports, power control port
and built-in modem, with optional 19" rack mount
kit |
DXRO-42 |
$1,900 |
| Dominion
DXRO-43 4 serial ports; 3 KVM ports, power control
port and built-in modem, with optional 19" rack
mount kit |
DXRO-43 |
$2,100 |
| Dominion DXRO-81
8 serial ports, 1 KVM port, power control port and
built-in modem, with optional 19" rack mount kit |
DXRO-81 |
$2,200 |
| Dominion DXRO-82
8 serial ports, 2 KVM ports, power control port
and built-in modem, with optional 19" rack mount
kit |
DXRO-82 |
$2,400 |
| Dominion DXRO-83
8 serial ports, 3 KVM ports, power control port
and built-in modem, with optional 19" rack mount
kit |
DXRO-83 |
$2,600 |
|
Corporate & Government
Discount Pricing is available at 1-800-638-2638
|
|
|
Click here for a Free Serial / Console Management Switch Project
Evaluation
Raritan Dominion Downloads & Manuals
|
