Raritan Dominion II DKX2-108
Raritan KVM Over IP Enterprise Solution

Raritan Dominion KX2-108

The Dominion KX II 108 is an enterprise-class, secure, KVM-over-IP switch that provides remote BIOS-level control of up to 8 servers. This KVM-over-IP solution has standard features such as Virtual Media and dual power, that maximize performance, security, reliability and versatility. Raritan's Universal Virtual Media lets administrators perform tasks such as installing software, transferring files and backing up data. A user can mount drives and media from the user's desktop to servers in the data center during a KVM session. Raritan's Virtual KVM Desktop allows users to scale a target server's display to any size, from thumbnails to full screen video. Transparent keyboard handling sends virtually every keystroke combination straight to the server, for a user experience that's nearly indistinguishable from an at-the-rack connection. Plus, it provides an intuitive user experience – whether the target servers are being accessed locally or remotely – through a common browser-based user interface.

This interface supports the industry's widest range of operating systems and browsers. The Dominion KX II also features Absolute Mouse Synchronization, which reduces installation time and sets a new standard for mouse synchronization. Combined with high-quality, 1600 x 1200 video resolution, Virtual KVM Desktop and Virtual Media features, it provides the industry's most flexible and responsive remote user experience available.

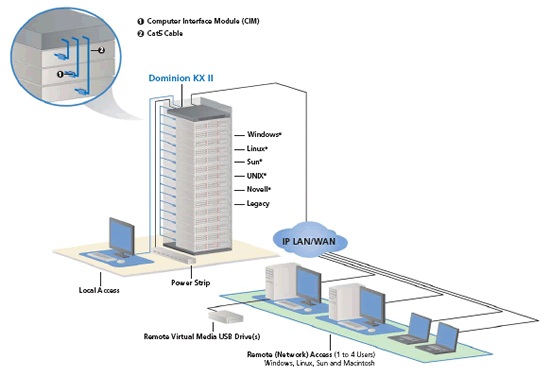

The Dominion KX II solution consists of the KVM-over-IP switch and Computer Interface Modules (CIMs).

• CIMs connect to the server's KVM ports and can be located up to 150 feet away from the switch using UTP (Cat5/5e/6) cabling. CIMs also provide keep-alive keyboard/mouse emulation.
• Access from Windows, Linux, Sun or Mac desktops via a wide range of Web browsers or standalone client.
• Raritan's remote client software is automatically downloaded via Web browser; standalone versions of client software can be pre-installed.
• Provides its entire feature set out of the box: Virtual Media, 128-bit AES or RC4 encryption, dual power supplies and dual gigabit Ethernet ports with failover, SNMP, Syslog, as well as integration with LDAP, Radius and Active Directory authentication.

Dominion KX II Features

• One, two or four remote KVM-over-IP channels
• Dual power supplies with failover
• Dual gigabit Ethernet ports with failover
• Browser-based local user port for at-the-rack access
• SNMP management and syslog logging
• Plug-and-play installation
• Platform Independent - CIMs available for PS/2, USB,
• USB with Virtual Media, Sun and Sun USB
• Flash firmware upgrades

Universal Virtual Media

• Standard on all Dominion KX II models
• Works standalone or with CommandCenter Secure Gateway (CC-SG)
• Exchange installation files and other media between a target server and a remote user over KVM ports
• Works across conforming USB enabled operating systems
• Includes DVD/CD-ROMs, USB storage devices and others

Virtual KVM Desktop

• Integrated, browser-based access and control
• Universal KVM Client supports Windows, Linux, Sun and Mac clients
• Multi-browser access for Internet Explorer, Firefox and Mozilla
• Full screen video display
• Transparent keyboard handler
• Flexible video scaling
