Avocent DSR DSR1161 offers the ability to control dozens to thousands of servers / CPU's. As a Digital KVM over IP switch, the Avocent DSR1161 allows you to have either local administrators within your data center or authorized users can securely access and control your servers over IP from anywhere in the world. This single user 16-port switch provides both digital and analog connectivity to PC-based servers. The Avocent DSR1161 model contains one local port for access at the rack and one Ethernet port for IP access. Avocent's patented OSCAR on-screen GUI reporting interface provides reliable rack level access and control.
Avocent's DSView Windows application offers powerful access for IP-based server management from any location in the world: from your desk, in the NOC or from any location in the world. The Avocent DSR1161 works with the Avocent DSRIQ smart cable for CAT 5 cabling connectivity from the switch to the server. With its CAT 5 design, the Avocent DSRIQ significantly reduces cable bulk in the rack and is well suited for high-density installations. Avocent DSR1161 is a KVM over IP network appliance which combines digital and analog technology, featuring connections for 16 servers in a 1U chassis Avocent DSR1161 is managed with Avocent's patented OSCAR on-screen GUI for access at the rack Avocent DSR1161 is managed with Avocent's DSView Windows application for KVM OVER IP access from any location
Avocent DSR1161 IP KVM Specifications: | Mechanical |  | Dimensions | | Height 1.75 in. (4.45 cm)
Width 17.00 in. (43.18 cm)
Depth 11.00 in. (27.94 cm) | Weight | | 8 lbs. (3.6 kg) without cables | | | | | | Environmental | Operating Temp | | 32 to 104 degrees F (0 to 40 degrees C) | Storage Temp | | -4 to 158 degrees F (-20 to 70 degrees C) | | | | | | Power | Operating Voltage & Power Supply | | Operating Voltage: 100 to 240 VAC
Power Frequency: 50 - 60 Hz Auto Sensing.
Input: Power 40W maximum | | | | | | | Supported Hardware | Computer | | PS/2, Sun and USB | Monitor | | VGA, SVGA (XGA, XGA-II with adaptor) Maximum resolution Local Port (DSR1161 & DSR1161 only): 1600 x 1280 @75Hz, Digital Port Maximum: 1280 x 1024 @75Hz | Peripherals | | PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse | | | | | | Standards | Certifications | | EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15 Class A, VCCI Class A, IEC950,EN60950,UL 1950 third edition,CSA C22.2 No.950 |

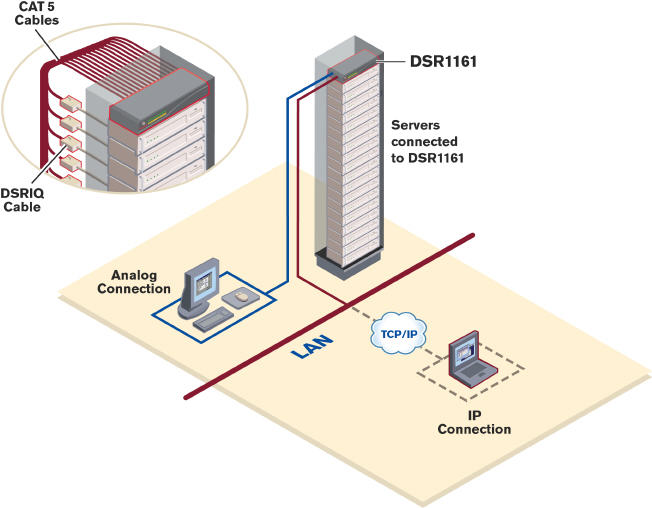

Click on the image to view the diagram for the
Avocent DSR1161 Digital KVM Switch Click here for a Free Avocent DSR KVM over IP Project Evaluation
|
