Share your peripherals with Avocent SwitchView USB 4 Port (Audio) KVM Switch!
The SwitchView USB 4-port is an integrated USB hub and KVM switch that lets you share peripherals between multiple computers. It controls up to four attached computers from a single keyboard, monitor and mouse. The SwitchView USB 4-port audio version even allows you to share speakers and microphone too. SwitchView USB KVM switches are also flash upgradeable for fast and easy updates. With Avocent’s SwitchView USB KVM switches you can switch between PCs and share your USB devices. Now you can use one compact device to consolidate control of multiple PCs and share access to your connected digital camera, external hard drive, CD ROM, PDA, scanner or printer! SwitchView USB is available in 2-port and two 4-port versions. | Mechanical |  | Height | | 1.75 in (4.45cm) | Width | | 8.25 in. (20.95cm) | Depth | | 5.60 in. (14.22 cm) | Weight | | 2 lbs. (0.91 kg) without cables | | | | | | Environmental | Operating Temp | | 32° to 104°F (0° to 40° C) | Storage Temp | | -4°F to 158°F (-20° to 70° C) | | | | | | Power | Operating Voltage | | | Power Frequency | | 12V DC @.1 A delivered by a region specific external transformer | | Input | | | | | | | | Supported Hardware | Computers | | PS/2 and USB | Monitors | | (VGA, SVGA,XGA,QVGA,SXGA,UXGA,QXGA) Maximum resolution of 2048 X1536@ 85Hz
OS Support: Windows XP Professional SP 1, Windows XP home, Windows 2000 Professional SP3, Windows ME, Windows 98 SE, Windows 98 (Limited USB Support) Linux 7.3, Linux 8.0, Sun Solaris | Peripherals | | USB Mouse, Logitech Mini optical USB, Logitech MX 500 Optical, Mouse, Logitech Optical Mouse, Microsoft Intellimouse Explorer, Microsoft Intellimouse Optical, Micro-innovations USB mouse, Microsoft Mouse (Basic), Microsoft Wheel Mouse Optical, Microsoft Wireless IntelliMouse Explorer, Kensington Studio Mouse, Kensington Pocket Mouse Pro, Kensington Optical Elite, Kensington Mouse in a box Optical USB/PS2, Kensington Optical Elite, Kensington Mouse in a box Optical USB/PS2, Kensington 2 button USB Pocke mouse, Memorex Scroll Pro Mouse SE MX4600, Memorex Scroll Pro Mouse SE MX4600 USB Keyboard, Microsoft Office Keyboard, Microsoft Internet Keyboard Pro, Microsoft Natural Keyboard Elite, Logitech Elite, Logitech Internet Navigator Keyboard, Logitech Cordless Access, Keytronic KT800USBUS-C, Keytronic E3601, Keytronic E06101, Keytronic E06101, Keytronic E06101, Keytronic E05351USIMM_C, Memorex Multimedia Keyboard MX3300, Adesso Multimedia Internet Keyboard MCK-800USB Audio: Microphone Input and Stereo Speaker Output | | | | | | Standards | Approved Agency | | EN55022 Class B, EN55024, 61000-3-2, 61000-3-3, FCC 15 Class B, VCCI Class B,
Power Adaptor: UL 1950/60950, CSA 22.2 #950, CB Scheme IEC 60950, PSE
(Actual Safety mark depends on region and adaptor purchased) |

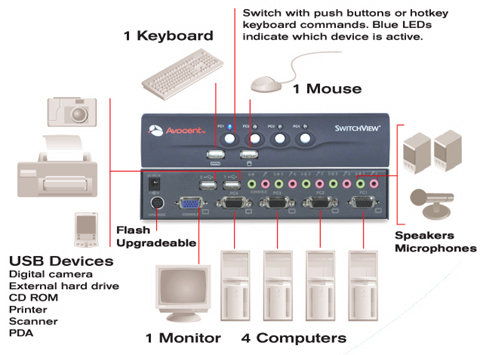

Avocent SwitchView USB 4 Port Audio KVM Switch Diagram
| SwitchView USB 4 Port (Audio) Order Details | Part Number | List Price | | 4-port, single user KVM switch with audio | SV400UA-AM | $169.95 |
Corporate & Government Discount Pricing is available at 1-800-638-2638 | | | | | | SwitchView USB 4 Port (Audio) Cables | Part Number | List Price | | 6ft USB cable with integrated speaker and microphone jacks (for SV400UA-AM) | SVAUSB-6 | $24.99 | | 9ft USB cable with integrated speaker and microphone jacks (for SV400UA-AM) | SVAUSB-9 | $29.99 | Corporate & Government Discount Pricing is available at 1-800-638-2638 |
|
|
Avocent SwitchView Audio Downloads & Manuals
|
