Avocent DSR4030
Avocent DSR4030 KVM over IP Solutions

The Avocent 16-port, 4 digital pathway DSR4030 KVM over IP switch provides 4 users with simultaneous remote BIOS-level control of sixteen PS/2, USB, Sun and serial based computers or network devices over UTP cabling. In addition, Virtual Media access allows remote users to accomplish remote file transfers, operating system patches and testing from CDs from their remote location. The advanced DSRIQ server interface cables implemented with each computer automatically assigns and maintains unique server names for each attached device along with providing users with a reduction in cable clutter. Local PS2 and USB ports provide users with access to all attached computers at the rack. Additional ports included on the DSR4030 provides users with remote power cycling capabilities along with allowing fail-safe remote access with use of an external modem if the network is down. DSView 3 management software presents users with failover authentication by implementing a hub and spoke architecture. This unique and secure KVM over IP access method allows DSR users to authenticate with a central management Hub server or one of 15 mirror Spoke servers.

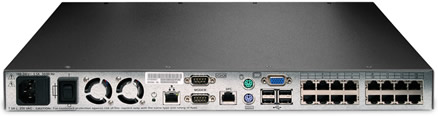

Avocent DSR4030 (rear view)

The 16-port four digital path DSR4030 KVM over IP switch gives administrators virtual media capability through DSView 3 software as well as all the features of the DSR1020. Administrators can remotely load software by mapping a local removable media or mass storage device to a remote server. This allows file transfers, application and OS patches, and diagnostic testing from a CD.

DSView 3 management software, with hub and spoke architecture, provides failover authentication. Users authenticate to a central management server (the hub) or one of 15 mirror servers (the spokes). SNMP and IPMI support are also provided.

Avocent DSR4030 16-port KVM over IP Features and Benefits:

• 16-port Digital-Analog KVM over IP Switch
• Compact, KVM over IP appliance integrates KVM, an external modem and power control in one solution
• Includes five USB 2.0 local ports
• Local and remote access for at-the-rack and remote data center management
• Required login at the local port for increased security
• Provides access to an unlimited number of servers or serial devices, no matter their location
• Includes 16 configurable ports for maximum flexibility when connecting to servers or serial devices
• Offers IT administrators the ability to dial into a remotely located server or serial device
• Virtual media capability allows remote loading of software for file transfers, application and OS patches and diagnostic testing
• DSView 3 management software, with hub and spoke architecture, provides failover authentication
• Remotely reboot the server to the BIOS level or even power cycle remote devices --- all from a single DSView 3 software interface
  Uses the same management interface for the data center and the branch offices
• Designed for multi-platform servers, including PS/2, Sun and USB
• DSView advanced security includes audit logs and the ability to assign individual user rights

DSView3 software required. Sold separately.

Avocent DSR4030 16-port KVM over IP Specifications

Mechanical		Height		1.72 in. (4.37 cm)
		Width		17.00 in. (43.18 cm)
		Depth		10.98 in. (27.98 cm)
		Weight		7.3 lbs. (3.31 kg) without cables
Environmental		Operating Temp		32 to 122 degrees F (0 to 50 degrees C)
		Storage Temp		-4 to 158 degrees F (-20 to 70 degrees C)
Power		Operating Voltage		100 to 240 VAC
		Power Frequency		50 - 60 Hz Auto Sensing
		Input		40W maximum
Supported Hardware		Computers		PS/2, Sun, USB
		Monitors		VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1280, Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz
		Peripherals		PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse
Standards		Approved Agency		UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST

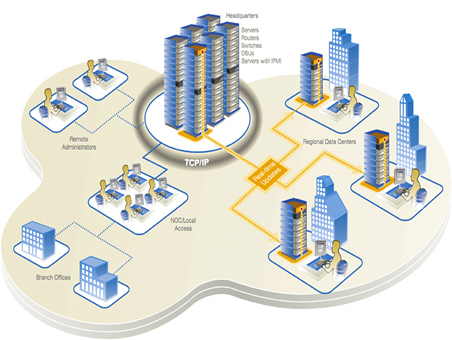

Avocent DSR4030 KVM over IP Diagram
