Avocent DSR4020
Avocent DSR4020 KVM over IP Solutions

The Avocent 16-port, 4 digital pathway DSR4020 KVM over IP switch provides 4 simultaneous users with remote BIOS-level control of sixteen PS/2, USB, Sun and serial based computers and network devices over UTP cabling. The advanced DSRIQ server interface cables implemented with each computer automatically assigns and maintains unique server names for each attached devices along with providing users with a reduction in cable clutter. Local USB and PS2 ports provide users with access to all attached computers at the rack. Also included on the DSR4020 is a port to enable users to remotely power cycle down servers and an external modem port for fail-safe remote access if the network is down. DSView 3 management software provides users with failover authentication by implementing a hub and spoke architecture. This unique and secure KVM over IP access method allows DSR users to authenticate with a central management Hub server or one of 15 mirror Spoke servers.

Avocent DSR4020 (rear view)

The 16-port DSR4020 switch provides local and remote access for at the rack and remote data center management. The switch includes four digital paths for simultaneous access of up to four remote servers; the ability to remotely power cycle connected devices; and external modem support when the network is down.

Combined with DSView 3 management software, the Avocent DSR4020 switch provides browser-based access to any connected device in your data center. DSView 3 software, with hub and spoke architecture, increases security with failover authentication. Users authenticate to a central management server (the hub) or one of 15 mirror servers (the spokes). SNMP and IPMI support are also provided.

Avocent DSR4020 16-port IP KVM Switch Features and Benefits:

• Compact, KVM over IP appliance integrates KVM, an external modem and power control in one solution
• Includes a USB local port
• High-resolution video with the Dambrackas Video Compression (DVC) algorithm
• Local and remote access for at the rack and remote data center management
• Required login at the local port for increased security
• Provides access to an unlimited number of servers or serial devices, no matter their location
• DSView 3 management software, with hub and spoke architecture, provides failover authentication
• Includes 16 configurable ports for maximum flexibility when connecting to servers or serial devices
• Offers IT administrators the ability to dial into a remotely located server or serial device
• Remotely reboot the server to the BIOS level or even power cycle remote devices --- all from a single DSView 3 software interface
• Uses the same management interface for the data center and the branch offices
• Built on patented, field-proven KVM over IP technology
• Designed for multi-platform servers, including PS/2, Sun and USB
• DSView 3 advanced security includes audit logs and the ability to assign individual user rights

Avocent DSR4020 16-port IP KVM Switch Specifications

Mechanical		Height		1.72 in. (4.37 cm)
		Width		17.00 in. (43.18 cm)
		Depth		10.98 in. (27.98 cm)
		Weight		7.3 lbs. (3.31 kg) without cables
Environmental		Operating Temp		32 to 104 degrees F (0 to 40 degrees C)
		Storage Temp		-4 to 158 degrees F (-20 to 70 degrees C)
Power		Operating Voltage		100 to 240 VAC
		Power Frequency		50 - 60 Hz Auto Sensing
		Input		40W maximum
Supported Hardware		Computers		PS/2, Sun, USB
		Monitors		VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1280, Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz
		Peripherals		PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse
Standards		Approved Agency		UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST

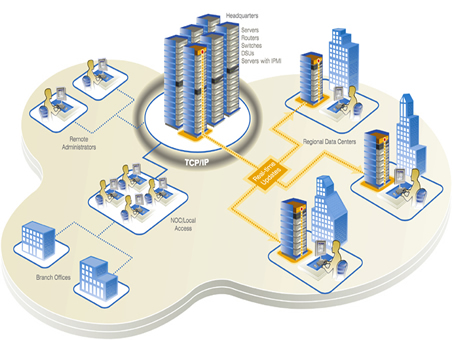

Avocent DSR4020 Diagram
