Avocent DSR4010
|
| For upgrade options, please call 1-800-NET2NET (638-2638).Avocent DSR4010 Features and Benefits
The Avocent 16-port DSR4010 KVM switch gives you digital and analog access to all major server platforms. It provides simultaneous access for up to 4 users – all 4 being remote or 3 remote and 1 local. The newest addition to the Avocent DSR KVM over IP DSR4010 KVM over IP switching system works with the patented OSCAR graphical user interface for access at your rack. DS management software combined with KVM over IP provides centralized control of all your remote appliances, including serial-based devices, no matter where they are located. - The ability to conduct local and IP sessions in a single KVM switch
- Grows with your expanding IT environment -- provides control of an unlimited number of servers
- 1U design optimizes your valuable rack space
- “Smart” DSRIQ CAT 5 cable reduces bulk in the rack; assigns and retains server names
- Designed to accommodate high-density installations
- Supports all major server platforms and VT100 serial-based devices
- Flash-upgradeable for future firmware compatibility
- The patented OSCAR on-screen graphical user interface provides local access at the rack
- Works with Avocent DS management software for secure, centralized control of all connected devices:
- DSView 2 software to access all devices via a standard IP connection
- DSView 2 software also creates and configures your network access environment
- DSWebview software for browser-based remote access to devices
- DSAuth software for user authentication/permissions, topology and per-device contact information
- Eliminates distance limitations. Gives you the power to control when, where and how you manage your system
Avocent DSR4010 Specifications | Mechanical |  | Height | | 1.75 in. (4.45 cm) | Width | | 17.00 in. (43.18 cm) | Depth | | 11.00 in. (27.94 cm) | Weight | | 8 lbs. (3.6 kg) without cables | | | | | | Environmental | Operating Temp | | 32 to 104 degrees F (0 to 40 degrees C) | Storage Temp | | -4 to 158 degrees F (-20 to 70 degrees C) | | | | | | Power | Operating Voltage | | 100 to 240 VAC | Power Frequency | | 50 - 60 Hz Auto Sensing | | Input | | 40W maximum | | | | | | Supported Hardware | Computers | | PS/2, Sun, USB and VT100 serial-based devices | Monitors | | VGA, SVGA (XGA, XGA-II with adaptor) Maximum resolution Local Port: 1600 x 1280 @75Hz, Digital Port Maximum: 1280 x 1024 @75Hz | Peripherals | | PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse | | | | | | Standards | Approved Agency | | EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15 Class A, VCCI Class A, IEC950,EN60950,UL 1950 third edition,CSA C22.2 No.950 |

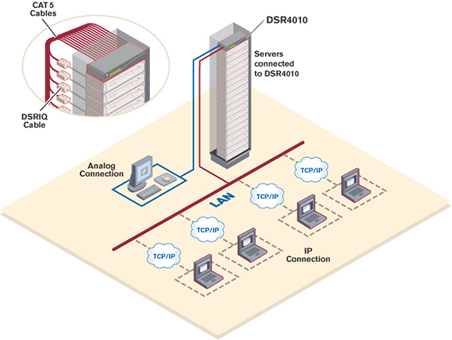

Avocent DSR4010 Diagram
| Avocent DSR4010 Order Details | Part Number | List Price | | Digital-analog KVM switch Discontinued | DSR4010-AM | Discontinued | DS Authentication server software license (one required per
installation) | DSAUTH1 | $1,000 | | DSView 3 software - 1 User add-on license | DSV3-1 | $795 | | DSView 3 software - 5 User add-on license | DSV3-5 | $2,995 | | DSView 3 software - 1 Spoke Add-on License | DSV3-SPOKE | $2,500 | | DSView 3 Portfolio B - 1 Hub/1 Spoke/5 Users | DSV3-SW | $4,495 | | DSView 3 Portfolio A - 1 Hub/5 Users | DSV3-SWA | $2,495 | DSView 3 software - Upgrade 1 Hub/5 Users (Existing
DSView 2 customers upgrading to DSView 3) Discontinued | DSV3UG-SW | Discontinued | | DSView 3 software - Upgrade 1 Hub/5 Users (Existing DSView 2 customers upgrading to DSView 3) Discontinued | DSV3UG-SW | Discontinued | DSView 2 user software for 1 user (Required: DSVIEW1-1
or 1-5 or 1-100) Discontinued | DSVIEW1-1 | Discontinued | DSView 2 user software for 5 users (Required: DSView1-5
or 1-1 or 1-100) Discontinued | DSVIEW1-5 | Discontinued | | DSWebview browser-based software | N/AA | $0 | Rack mount kit for DSR800, DSR1010, DSR2010 and
DSR4010 | RMK-37 | $45 | | Corporate & Government Discount Pricing is available at 1-800-638-2638 | | | | |
| Modules for Avocent DSR4010 | Part Number | List Price |
| Server interface module for VGA video,
PS/2 keyboard and mouse, with 14 in. PS/2 cables |
DSRIQ-PS2 |
$99 |
| Server interface module for VGA video,
PS/2 keyboard and mouse, with 20 in. PS/2 cables |
DSRIQ-PS2L | $105 | |
Server interface module for VT100 serial devices
(requires UPD-AM) |
DSRIQ-SRL | $125 | |
Server interface module for VGA video, USB keyboard and
mouse |
DSRIQ-USB | $99 | | Server interface module for USB 2.0 w/14 inch cable Discontinued |
DSRIQ-USB2 | $125 |
| Virtual Media server interface module for
VGA video and USB 2.0 w/ 14 in. cable, required for DSR and AutoView
virtual media switches |
DSAVIQ-USB2 | $125 |
| Virtual Media server interface module for
USB 2.0 w/ 20 in. cable, required for DSR and AutoView virtual media
switches |
DSAVIQ-USB2L | $125 | | Server interface module for USB 2.0 w/20 inch cable |
DSRIQ-USB2L | $125 | |
Server interface module for VGA or 13W3 video, Sun
keyboard and mouse |
DSRIQ-VSN | $105 | Corporate & Government Discount Pricing is available at 1-800-638-2638 |
