Avocent DSR2035
Avocent DSR2035 32-Port IP KVM Switch

Avocent Certified Partner


The Avocent 32-port, 2 digital pathway DSR2035 KVM over IP switch provides 2 users with simultaneous remote BIOS-level control of thirty-two PS/2, USB, Sun and serial based computers or network devices over UTP cabling. In addition, Virtual Media access allows remote users to accomplish remote file transfers, operating system patches and testing from CDs from their remote location. The advanced DSRIQ server interface cables implemented with each computer automatically assigns and maintains unique server names for each attached device along with providing users with a reduction in cable clutter. Local PS2 and USB ports provide users with access to all attached computers at the rack. Additional ports included on the DSR2035 provides users with remote power cycling capabilities along with allowing fail-safe remote access with use of an external modem if the network is down. DSView 3 management software presents users with failover authentication by implementing a hub and spoke architecture. This unique and secure KVM over IP access method allows DSR users to authenticate with a central management Hub server or one of 15 mirror Spoke servers.

Avocent DSR2035

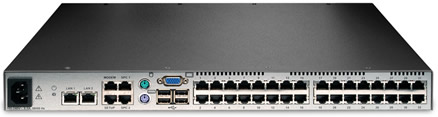

Avocent DSR2035 (rear view)

KVM over IP switch with BIOS-level control of all connected servers and serial-based devices in your data center – scalable for future growth

The 32-port two digital path DSR2035 KVM over IP switch features on-board Web browser support allowing direct access to target devices without additional software. This is a benefit for companies who want an easily scalable system. DSView 3 management software can be added later as the system grows. Adding DSView 3 software that features virtual media allows administrators to remotely load software by mapping a local removable media or mass storage device to a remote server. This allows file transfers, application and OS patches, and diagnostic testing from a CD.

DSView 3 management software, with hub and spoke architecture, provides failover authentication. Users authenticate to a central management server (the hub) or one of 15 mirror servers (the spokes). SNMP and IPMI support are also provided.


Avocent DSR2035 32-Port IP KVM Switch Hardware Features

  • 32-port KVM over IP Switch featuring 2 digital paths
  • Compact, KVM over IP appliance integrates KVM, an external modem and power control in one solution
  • Includes five USB 2.0 local ports and two SPC power management ports
  • Includes dual network interfaces for failover redundancy
  • Local and remote access for at the rack and remote data center management
  • Requires login at the local port for increased security
  • Provides access to an unlimited number of servers or serial devices, no matter their location
  • Includes 32 configurable ports for maximum flexibility when connecting to servers or serial devices
  • Offers IT administrators the ability to dial into a remotely located server or serial device
  • Designed for multi-platform servers, including PS/2, Sun and USB
  • On-board Web browser support allows direct access to target devices without additional software, a benefit for companies who want a scalable system that can easily grow with them. DSView 3 management software can be added later as the system grows.


DSView 3 (software for Avocent DSR2035) Features

  • Virtual media capability allows remote loading of software for file transfers, application and OS patches and diagnostic testing
  • DSView 3 management software, with hub and spoke architecture, provides failover authentication
  • Remotely reboot the server to the BIOS level or even power cycle remote devices --- all from a single DSView 3 software interface
  • Uses the same management interface for the data center and the branch offices
  • DSView advanced security includes audit logs and the ability to assign individual user rights

Supported by DSView 3 software. Sold separately. A USB 2.0 module and DSView 3 software required for virtual media.

Avocent DSR2035 32-Port IP KVM Switch Specifications

Mechanical
Height
1.72 in. (4.37 cm)
Width
17.00 in. (43.18 cm)
Depth
14.25 in. (36.20 cm)
Weight
10 lbs. (4.5 kg) without cables
Environmentall
Operating Temp
32 to 122 degrees F (0 to 50 degrees C)
Storage Temp
-4 to 158 degrees F (-20 to 70 degrees C)
Power
Operating Voltage
100 to 240 VAC
Power Frequency
50 - 60 Hz Auto Sensing
Input
40W maximum
Supported Hardware
Computers
PS/2, Sun, USB
Monitors
VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1280, Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz
Peripherals
USB keyboard and mouse,PS/2 keyboard, PS/2 mouse, IntelliMouse
Standardss
Approved Agency
UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST

Avocent DSR2035 Diagram
Avocent DSR2035  IP KVM Switch Diagram

GSA Schedule Click here to see a list of the Avocent DSR products available on our GSA contract!

Avocent DSR Part Number List Price
Avocent DSR8035: Digital-analog KVM switch DSR8035-001 $8,495
Avocent DSR1020: 16-port Digital-Analog KVM Over IP Switch DSR1020-001 $3,195
Avocent DSR1021: 1x8 Digital-Analog KVM Switch DSR1021-001 $1,695
Avocent DSR1022: 4-port Digital KVM switch DSR1022-001 $1,195
Avocent DSR1024: 1-port Digital KVM Switch w/PS2 or USB DSR1024 $949
Avocent DSR1030: Digital-analog KVM switch DSR1030-001 $3,495
Avocent DSR1031: Digital KVM switch with virtual media DSR1031-001 $1,949
Avocent DSR2020: Digital-analog KVM switch DSR2020-001 $4,195
Avocent DSR2030: Digital-analog KVM switch DSR2030-001 $4,695
Avocent DSR2035: 2x32 Port Digital Switch DSR2035-001 $4,995
Avocent DSR4020: Digital-analog KVM switch DSR4020-001 $5,995
Avocent DSR4030: Digital-analog KVM switch DSR4030-001 $6,495
Avocent DSR8020: 16-port digital-analog KVM switch DSR8020-001 $7,495
Avocent DSR8030: Digital-analog KVM switch DSR8030-001 $7,995

Corporate & Government Discount Pricing is available at 1-800-638-2638


Avocent DSR2035 Order Details Part Number List Price
2x32 Port Digital Switch DSR2035-001 $4,995
DSView 3 software - 1 User add-on license DSV3-1 $795
DSView 3 software - 5 User add-on license DSV3-5 $2,995
DSView 3 software - 1 Spoke Add-on License DSV3-SPOKE $2,500
DSView 3 Portfolio B - 1 Hub/1 Spoke/5 Users DSV3-SW $4,495
DSView 3 Portfolio A - 1 Hub/5 Users DSV3-SWA $2,495
DSView 3 software - Upgrade 1 Hub/5 Users (Existing
DSView 2 customers upgrading to DSView 3)Discontinued
DSV3UG-SW Discontinued

Corporate & Government Discount Pricing is available at 1-800-638-2638


Modules for Avocent DSR2035 Part Number List Price
Server interface module for VGA video, PS/2 keyboard and mouse, with 14 in. PS/2 cables DSRIQ-PS2 $99
Server interface module for VGA video, PS/2 keyboard and mouse, with 20 in. PS/2 cables DSRIQ-PS2L $105
Server interface module for VT100 serial devices (requires UPD-AM) DSRIQ-SRL $125
Server interface module for VGA video, USB keyboard and mouse DSRIQ-USB $99
Server interface module for USB 2.0 w/14 inch cable Discontinued DSRIQ-USB2 $125
Virtual Media server interface module for VGA video and USB 2.0 w/ 14 in. cable, required for DSR and AutoView virtual media switches DSAVIQ-USB2 $125
Virtual Media server interface module for USB 2.0 w/ 20 in. cable, required for DSR and AutoView virtual media switches DSAVIQ-USB2L $125
Server interface module for USB 2.0 w/20 inch cable DSRIQ-USB2L $125
Server interface module for VGA or 13W3 video, Sun keyboard and mouse DSRIQ-VSN $105

Corporate & Government Discount Pricing is available at 1-800-638-2638



Click here for DSView 3 Maintenance Information

Click here for a Free Avocent DSR KVM over IP Project Evaluation

Avocent DSR2035 Downloads & Manuals
