The Avocent DSR2020 has been replaced by the
Avocent DSR2030.
Avocent DSR2020 16-port IP KVM
The Avocent 16-port, 2 digital pathway DSR2020 KVM over
IP switch provides 2 users with remote BIOS-level control
of sixteen PS/2, USB, Sun and serial based computers and
network devices over UTP cabling. The advanced DSRIQ server
interface cables implemented with each computer automatically
assigns and maintains unique server names for each attached
devices along with providing users with a reduction in cable
clutter. Local USB and PS2 ports provide users with access
to all attached computers at the rack. Also included on
the DSR2020 is a port to enable users to remotely power
cycle down servers and an external modem port for fail-safe
remote access if the network is down. DSView 3 management
software provides users with failover authentication by
implementing a hub and spoke architecture. This unique and
secure KVM over IP access method allows DSR users to authenticate
with a central management Hub server or one of 15 mirror
Spoke servers.

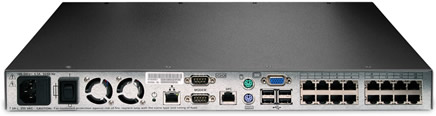

Avocent DSR2020 (rear view)
The Avocent DSR KVM over IP 16-port DSR2020 KVM over
IP switch provides two digital paths for simultaneous access
of two remote servers; the ability to remotely power cycle
connected devices; external modem support when the network
is down. The Avocent DSR2020 also gives you BIOS-level control
of all connected servers and serial-based devices from any
location in the world.
Combined with DSView 3 management software, the Avocent
DSR2020 provides browser-based access to any connected device
in your data center. DSView 3 software, with hub and spoke
architecture, increases security with failover authentication.
Avocent DSR2020 16-port IP KVM Features and Benefits:
- Compact, KVM over IP appliance integrates KVM, an
external modem and power control in one solution
- Includes a USB local port
- High-resolution video with the Dambrackas Video
Compression (DVC) algorithm
- Local and remote access for at the rack and remote
data center management
- Required login at the local port for increased security
- Provides access to an unlimited number of servers
or serial devices, no matter their location
- DSView 3 management software, with hub and spoke
architecture, provides failover authentication
- Includes 16 configurable ports for maximum flexibility
when connecting to servers or serial devices
- Offers IT administrators the ability to dial into
a remotely located server or serial device
- Remotely reboot the server to the BIOS level or
even power cycle remote devices --- all from a single
DSView 3 software interface
- Uses the same management interface for the data
center and the branch offices
- Built on patented, field-proven KVM over IP technology
- Designed for multi-platform servers, including PS/2,
Sun and USB
- DSView 3 software advanced security includes audit
logs and the ability to assign individual user rights
Avocent DSR2020 16-port IP KVM Specifications
|
Mechanical |
 |
Height
|
 |
1.72 in. (4.37 cm) |
|
Width
|
 |
17.00 in. (43.18 cm) |
|
Depth
|
 |
10.98 in. (27.98 cm) |
|
Weight
|
 |
7.3
lbs. (3.31 kg) without cables |
 |
 |
 |
 |
|
Environmental |
Operating Temp
|
 |
32 to 104 degrees F (0 to 40 degrees
C) |
|
Storage Temp
|
 |
-4 to 158 degrees F (-20 to 70 degrees
C) |
 |
 |
 |
 |
|
Power |
Operating Voltage
|
 |
100 to 240 VAC |
|
Power Frequency
|
 |
50
- 60 Hz Auto Sensing |
 |
Input
|
 |
40W
maximum |
 |
 |
 |
 |
|
Supported Hardware |
Computers
|
 |
PS/2, Sun, USB |
|
Monitors
|
 |
VGA, SVGA (XGA, XGA-II with adaptor),
Maximum Local Port: 1600 x 1280, Maximum Remote
Port using a DSRIQ module: 1280 x 1024 @ 75 Hz |
|
Peripherals
|
 |
PS/2 keyboard, PS/2 mouse, IntelliMouse
(PS/2 only), IBM Scrollpoint, Logitech Mouseman+,
Logitech Marble Plus, Logitech Marble FX and Kensington
Expert mouse |
 |
 |
 |
 |
|
Standards |
Approved Agency
|
 |
UL, FCC, cUL, ICES-003, CE, GS, VCCI,
MIC, C-Tick, GOST |

Avocent DSR2020 16-port IP KVM Diagram
 |
Click here to see a list of the
Avocent DSR products available on our GSA
contract! |
| |
| Avocent DSR Series |
Users |
Ports |
Platforms |
|
Branch |
|
Avocent DSR1024 |
1 digital, 1 local |
1 |
PS/2, SUN, USB, Serial |
|
Branch with Virtual Media |
|
Avocent DSR1031 |
1 digital, 1 local |
8 |
PS/2, SUN, USB, Serial |
|
Enterprise with Virtual Media |
|
Avocent DSR1030 |
1 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR2030 |
2 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR2035 |
2 digital, 1 local |
32 |
PS/2, SUN, USB, Serial |
|
Avocent DSR4030 |
4 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR8030 |
8 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR8035 |
8 digital, 1 local |
32 |
PS/2, SUN, USB, Serial |
|
Avocent Server Interface Modules |
|
Avocent DSRIQ |
|
PS/2, SUN, USB, Serial |
|
DSRIQ-PS2 |
VGA video, PS/2 keyboard and mouse, with 14
in. PS/2 cables |
PS/2 |
|
DSRIQ-PS2L |
VGA video, PS/2 keyboard and mouse, with 20
in. PS/2 cables |
PS/2 |
|
DSRIQ-SRL |
VT100 serial devices (requires UPD-AM) |
Serial |
|
DSRIQ-USB |
VGA video, USB keyboard and mouse |
USB |
|
DSRIQ-USB2L |
USB 2.0 w/20 inch cable |
USB |
|
DSRIQ-VSN |
VGA or 13W3 video, Sun keyboard and mouse |
|
|
DSAVIQ-USB2 |
Virtual Media VGA video and USB 2.0 w/ 14 in.
cable, required for DSR and AutoView virtual
media switches |
USB |
|
DSAVIQ-USB2L |
Virtual Media USB 2.0 w/ 20 in. cable, required
for DSR and AutoView virtual media switches |
USB |
|
|
|
|
|
