Avocent DSR2010
|
| This product has been discontinued. For upgrade information please call 1-800-NET2NET.Avocent DSR2010 Features and Benefits
The Avocent DSR2010 KVM switch offers the flexibility of multi-user, multi-location solutions with both local and IP access for all major server platforms and serial-based devices. The 16-port Avocent DSR2010 KVM over IP switching system contains one local port for access at the rack and two digital ports for IP remote access. - Works with DSRIQ CAT 5 “smart” cable to significantly reduce cable bulk in the rack
- Features connections for 16 servers in a 1U chassis
- Provides anywhere, anytime digital IP KVM access
- The patented OSCAR® on-screen graphical user interface provides local access at the rack
- Eliminates distance limitations
- Works with Avocent DS management software for secure, centralized control of all connected devices:
- DSView® 2 software to access all devices via a standard IP connection
- DSView 2 software also creates and configures your network access environment
- DSWebview software for browser-based remote access to devices
- DSAuth software for user authentication/permissions, topology and per-device contact information
Avocent DSR2010 Specifications | Mechanical |
 | Height | | 1.75 in. (4.45 cm) | Width | | 17.00 in. (43.18 cm) | Depth | | 11.00 in. (27.94 cm) | Weight | | 8 lbs. (3.6 kg) without cables | | | | | | Environmental | Operating Temp | | 32 to 104 degrees F (0 to 40 degrees C) | Storage Temp | | -4 to 158 degrees F (-20 to 70 degrees C) | | | | | | Power | Operating Voltage | | 100 to 240 VAC | Power Frequency | | 50 - 60 Hz Auto Sensing | | Input | | 40W maximum | | | | | | Supported Hardware | Computers | | PS/2, Sun, USB and VT100 serial-based devices | Monitors | | VGA, SVGA (XGA, XGA-II with adaptor) Maximum resolution Local Port: 1600 x 1280 @75Hz, Digital Port Maximum Input Resolution: 1280 x 1024 @75Hz | Peripherals | | PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse | | | | | | Standards | Approved Agency | | EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15
Class A, VCCI Class A, IEC950,EN60950,UL 1950 third edition,CSA C22.2 No.950 |

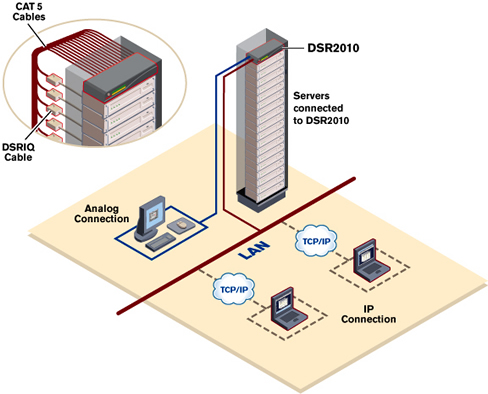

Avocent DSR2010 Diagram
| Avocent DSR2010 Order Details | Part Number | List Price | | Digital-Analog KVM switch | DSR2010-AM | $4,495 | | DS Authentication server software license (one required per installation) | DSAUTH1 | $1,000 | | DSView 3 software - 1 User add-on license | DSV3-1 | $795 | | DSView 3 software - 5 User add-on license | DSV3-5 | $2,995 | | DSView 3 software - 1 Spoke Add-on License | DSV3-SPOKE | $2,500 | | DSView 3 Portfolio B - 1 Hub/1 Spoke/5 Users | DSV3-SW | $4,495 | | DSView 3 Portfolio A - 1 Hub/5 Users | DSV3-SWA | $2,495 | DSView 3 software - Upgrade 1 Hub/5 Users (Existing
DSView 2 customers upgrading to DSView 3) Discontinued | DSV3UG-SW | $995 | | DSView 3 software - Upgrade 1 Hub/5 Users (Existing DSView 2 customers upgrading to DSView 3) Discontinued | DSV3UG-SW | $995 | | DSView 2 user software for 1 user (Required: DSVIEW1-1 or 1-5 or 1-100) | DSVIEW1-1 | $750 | | DSView 2 user software for 5 users (Required: DSView1-5 or 1-1 or 1-100) | DSVIEW1-5 | $2,500 | | DSWebview browser-based software | N/A | $0 | | Rack mount kit for DSR800, DSR1010, DSR2010 and DSR4010 | RMK-37 | $45 | Corporate & Government Discount Pricing is available at 1-800-638-2638 | | | | |
| Modules for Avocent DSR2010 | Part Number | List Price |
| Server interface module for VGA video,
PS/2 keyboard and mouse, with 14 in. PS/2 cables |
DSRIQ-PS2 |
$99 |
| Server interface module for VGA video,
PS/2 keyboard and mouse, with 20 in. PS/2 cables |
DSRIQ-PS2L | $105 | |
Server interface module for VT100 serial devices
(requires UPD-AM) |
DSRIQ-SRL | $125 | |
Server interface module for VGA video, USB keyboard and
mouse |
DSRIQ-USB | $99 | | Server interface module for USB 2.0 w/14 inch cable Discontinued |
DSRIQ-USB2 | $125 |
| Virtual Media server interface module for
VGA video and USB 2.0 w/ 14 in. cable, required for DSR and AutoView
virtual media switches |
DSAVIQ-USB2 | $125 |
| Virtual Media server interface module for
USB 2.0 w/ 20 in. cable, required for DSR and AutoView virtual media
switches |
DSAVIQ-USB2L | $125 | | Server interface module for USB 2.0 w/20 inch cable |
DSRIQ-USB2L | $125 | |
Server interface module for VGA or 13W3 video, Sun
keyboard and mouse |
DSRIQ-VSN | $105 | Corporate & Government Discount Pricing is available at 1-800-638-2638 |
