Avocent DSR1024 Single-port IP KVM
The Avocent single-port DSR1024 KVM over IP switch provides
1 user with remote BIOS-level control of one PS/2, USB,
Sun and serial based computers or network devices over UTP
cabling. The advanced DSRIQ server interface cables implemented
with each computer automatically assigns and maintains unique
server names for each attached device along with providing
users with a reduction in cable clutter. Local PS2 ports
provide users with access to all attached computers at the
rack. Additional ports included on the DSR1024 provides
users with remote power cycling capabilities along with
allowing fail-safe remote access with use of an external
modem if the network is down. DSView 3 management software
presents users with failover authentication by implementing
a hub and spoke architecture. This unique and secure KVM
over IP access method allows DSR users to authenticate with
a central management Hub server or one of 15 mirror Spoke
servers.

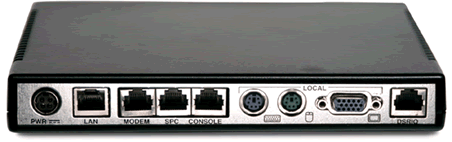

Avocent DSR1024 (rear view)
The Avocent DSR1024 KVM over IP switch is specifically
designed for BIOS-level management of branch devices controlled
by a single computer, such as ATM machines. Remote access
via the one-port Avocent DSR1024 switch can help eliminate
on-site maintenance costs and service calls. The switch
includes one target device interface, one digital channel
and a local port.
Attached devices can be cycled on/off with the dedicated
power control port. External modem support is available
if your network is down. Supported by DSView 3 management
software, SNMP and IPMI, the DSR1024 switch provides hub
and spoke failover capability ? users can authenticate even
when a primary server is unavailable.
Avocent DSR1024 Single-port IP KVM Features and Benefits:
- Compact, KVM over IP appliance integrates KVM, an
external modem and power control in one solution
- Offers IT administrators the ability to dial into
a remotely located server or serial device
- Remotely reboot the server to the BIOS level or
even power cycle remote devices --- all from a single
DSView 3 software interface
- Uses the same management interface for the data
center and the branch offices
- Built on patented, field-proven KVM over IP technology
- Designed for multi-platform servers, including PS/2,
Sun and USB
- DSView 3 software advanced security includes audit
logs and the ability to assign individual user rights
Avocent DSR1024 Single-port Specifications
|
Mechanical |
|
Height
|
 |
1.10 in. (2.80 cm) |
|
Width
|
 |
8.08 in. (20.51 cm) |
|
Depth
|
 |
6.30 in. (16.00 cm) |
|
Weight
|
 |
1.1 lbs. (0.50 kg) without cables |
 |
 |
 |
 |
|
Environmental |
Operating Temp
|
 |
32 to 104 degrees F (0 to 40 degrees C) |
|
Storage Temp
|
 |
-22 to 158 degrees F (-30 to 70 degrees C) |
 |
 |
 |
 |
|
Power |
Operating Voltage
|
 |
100 to 240 VAC |
|
Power Frequency
|
 |
50
- 60 Hz Auto Sensing |
 |
Input
|
 |
40W
maximum |
 |
 |
 |
 |
|
Supported Hardware |
Computers
|
 |
PS/2, Sun and USB |
|
Monitors
|
 |
VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local
Port: 1600 x 1280, Maximum Remote Port using a DSRIQ
module: 1280 x 1024 @ 75 Hz
|
|
Peripherals
|
 |
PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only),
IBM Scrollpoint, Logitech Mouseman+, Logitech Marble
Plus, Logitech Marble FX and Kensington Expert mouse
|
 |
 |
 |
 |
|
Standards |
Approved Agency
|
 |
UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick,
GOST |

Avocent DSR1024 Single-port IP KVM Diagram
 |
Click here to see a list of the
Avocent DSR products available on our GSA
contract! |
| |
| Avocent DSR Series |
Users |
Ports |
Platforms |
|
Branch |
|
Avocent DSR1021 |
1 digital, 1 local |
8 |
PS/2, SUN, USB, Serial |
|
Avocent DSR1022 |
1 digital, 1 local |
4 |
PS/2, SUN, USB, Serial |
|
Avocent DSR1024 |
1 digital, 1 local |
1 |
PS/2, SUN, USB, Serial |
|
Branch with Virtual Media |
|
Avocent DSR1031 |
1 digital, 1 local |
8 |
PS/2, SUN, USB, Serial |
|
Enterprise |
|
Avocent DSR1020 |
1 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR2020 |
2 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR4020 |
4 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR8020 |
8 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Enterprise with Virtual Media |
|
Avocent DSR1030 |
1 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR2030 |
2 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR2035 |
2 digital, 1 local |
32 |
PS/2, SUN, USB, Serial |
|
Avocent DSR4030 |
4 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR8030 |
8 digital, 1 local |
16 |
PS/2, SUN, USB, Serial |
|
Avocent DSR8035 |
8 digital, 1 local |
32 |
PS/2, SUN, USB, Serial |
|
Avocent Server Interface Modules |
|
Avocent DSRIQ |
|
PS/2, SUN, USB, Serial |
|
DSRIQ-PS2 |
VGA video, PS/2 keyboard and mouse, with 14
in. PS/2 cables |
PS/2 |
|
DSRIQ-PS2L |
VGA video, PS/2 keyboard and mouse, with 20
in. PS/2 cables |
PS/2 |
|
DSRIQ-SRL |
VT100 serial devices (requires UPD-AM) |
Serial |
|
DSRIQ-USB |
VGA video, USB keyboard and mouse |
USB |
|
DSRIQ-USB2L |
USB 2.0 w/20 inch cable |
USB |
|
DSRIQ-VSN |
VGA or 13W3 video, Sun keyboard and mouse |
|
|
DSAVIQ-USB2 |
Virtual Media VGA video and USB 2.0 w/ 14 in.
cable, required for DSR and AutoView virtual
media switches |
USB |
|
DSAVIQ-USB2L |
Virtual Media USB 2.0 w/ 20 in. cable, required
for DSR and AutoView virtual media switches |
USB |
|
|
|
|
|
