Avocent DSR1022
Avocent DSR1022 KVM over IP

The Avocent DSR1022 has been replaced by the Avocent DSR1031.

Avocent DSR1022 4-port  IP KVM Switch
The Avocent 4-port, single digital pathway DSR1022 KVM over IP switch provides 1 user with remote BIOS-level control of four PS/2, USB, Sun and serial based computers and network devices over UTP cabling. The advanced DSRIQ server interface cables implemented with each computer automatically assigns and maintains unique server names for each attached devices along with providing users with a reduction in cable clutter. Local PS2 ports provide users with access to all attached computers at the rack. Also included on the DSR1022 is a port to enable users to remotely power cycle down servers and an external modem port for fail-safe remote access if the network is down. DSView 3 management software provides users with failover authentication by implementing a hub and spoke architecture. This unique and secure KVM over IP access method allows DSR users to authenticate with a central management Hub server or one of 15 mirror Spoke servers.

Avocent DSR1022 (rear view)

With support for multiple network devices and remote management, the Avocent DSR1022 KVM over IP switch gives you greater access to branch office devices. The Avocent DSR1022 switch is specifically designed for you to easily troubleshoot, reboot or even power cycle servers or serial devices in branch offices, avoiding the need for costly on-site service calls. The Avocent DSR1022 switch includes four configurable ports for maximum flexibility and supports PS/2 and USB servers. External modem support is available if your network is down.

Combined with DSView 3 management software, SNMP and IPMI support, and a Web browser, the Avocent DSR1022 switch provides one-screen, BIOS-level control of your branch office's servers, routers and DSUs. Hub and spoke failover capability allows users to authenticate when a primary server is unavailable.

Avocent DSR1022 4-port  IP KVM Switch Features and Benefits:

• Compact, KVM over IP appliance integrates KVM, an external modem and power control in one solution
• Provides access to an unlimited number of servers or serial devices, no matter their location
• Includes four configurable ports for maximum flexibility when connecting to servers or serial devices
• Offers IT administrators the ability to dial into a remotely located server or serial device
• Remotely reboot the server to the BIOS level or even power cycle remote devices --- all from a single DSView 3 software interface
• Uses the same management interface for the data center and the branch offices
• Built on patented, field-proven KVM over IP technology
• Designed for multi-platform servers, including PS/2, Sun and USB
• DSView 3 software advanced security includes audit logs and the ability to assign individual user rights

Avocent DSR1022 IP KVM Switch Specifications

Mechanical		Height		1.72 in. (4.37 cm)
		Width		17.00 in. (43.18 cm)
		Depth		8.08 in. (20.51 cm)
		Weight		5.3  lbs. (2.40 kg) without cables
Environmental		Operating Temp		32 to 104 degrees F (0 to 40 degrees C)
		Storage Temp		-4 to 158 degrees F (-20 to 70 degrees C)
Power		Operating Voltage		100 to 240 VAC
		Power Frequency		50 - 60 Hz Auto Sensing
		Input		40W maximum
Supported Hardware		Computers		PS/2, Sun, USB
		Monitors		VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1280, Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz
		Peripherals		PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse
Standards		Approved Agency		UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST

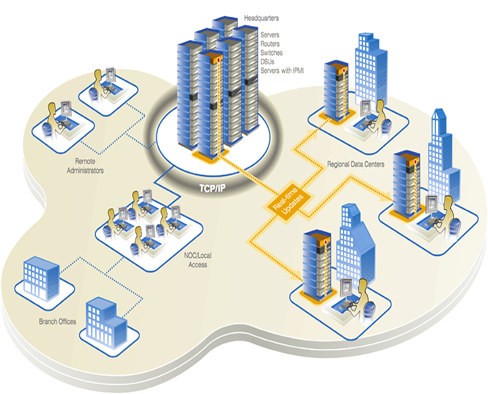

Avocent DSR1022 KVM over IP Switch Diagram
