Avocent AutoView AV3200 KVM Over IP Switch
Avocent AV3200-001 AutoView KVM Solutions

Avocent AutoView AV3200 KVM Switch

Avocent AutoView AV3200 KVM Switch Overview
The AutoView AV3200 digital KVM switch provides access to your servers from any location via an on-board Web browser. The Avocent AV3200-001 AutoView is designed for the needs of small to medium-size businesses, the switch also includes an analog port for local access.

Avocent AV3200-001 AutoView KVM Switch Back View

The Avocent AutoView AV3200 switch is a 16-port KVM system providing server access for two remote digital user and one local analog user. The Avocent AV3200-001 switch includes local USB peripheral support and provides convenient access to PS/2, Sun, and USB servers and serial-based devices. The on-board Web interface means that no additional software is required for remote server access.

Avocent AutoView AV3200 KVM Switch Features & Benefits:

• User Access:  16-port KVM switch provides flexible remote server access with two remote digital path and one local analog user.

• User On-board Web interface:  The user’s PC requires no additional software for remote server access.

• Management Multi-platform support:  Local PS/2 and USB connections and multi-platform target devices, including PS/2, USB, Sun and serial support

• Management Integrated access cabling or AVRIQ support:  Lowers overall cost with CAT 5-designed integrated access cables for PS/2 or USB connectivity

• Security encrypted IP communication: Switch supports SSL-128bit, DES, 3DES or AES encrypted communication

• Powerful user access control:  64 user accounts with access control lists for each user classified by- User KVM access only,  User Administrator KVM access, and ability to configure users and user admin.  Appliance Administrator KVM, ability to configure user, user admins, and appliance administration and configuration

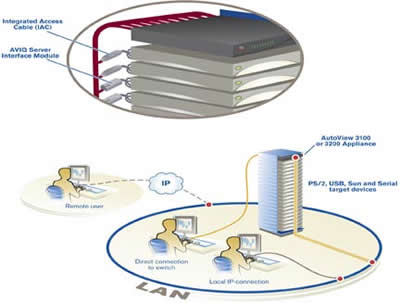

Avocent AV3200-001 KVM Switch Solution Diagram

Avocent AutoView AV3200 KVM Switch Specifications

Mechanical		Height		1.72 in. (4.37 cm)
		Width		17.00 in. (43.18 cm)
		Depth		10.98 in. (27.98 cm)
		Weight		7.3 lbs (3.31 kg)
		Style		Rackmount
Environmental		Operating Temp		32 to 104 F (0 to 40 C)
		Storage Temp		-4 to 158 F (-20 to 70 C)
Power		Operating Voltage & Power Supply		Operating Voltage 100 - 240 VAC Power Frequency 50/60 HZ auto-sensing Input 40 W maximum
Supported Hardware		Computers		PS/2, Sun, USB
		Monitors		VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1200; Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz
		Peripherals		USB keyboard and mouse, PS/2 keyboard, PS/2 mouse, IntelliMouse
Standards		Approved Agency		UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST
