Avocent AMX AMX5111 CAT5 User Station

Avocent AMX5111
The Avocent AMX5111 desktop user station provides access from your desk to one AMX KVM matrix switching system and one local computer. The AMX5111 user station supports PS/2 and USB keyboards and mice.

The AMX5111 user station connects to your multi-platform KVM peripherals and sends the KVM signals over an industry-standard UTP cable to an Avocent AMX matrix switch.

Avocent exclusive AutoTuning technology allows the AMX5111 user station to automatically compensate for varying UTP cable types and lengths, such as CAT 5, CAT 5e and CAT 6, include GigaFlex. AutoTuning technology adjusts for signal losses each time a switch is made to a server.

The AMX5111 user station works with the OSCAR graphical user interface (GUI). The OSCAR interface uses multi-lingual, intuitive menus for click and connect system configuration and server selection.

Avocent AMX5111 Features & Benefits

• Full bandwidth and real-time access to servers. Facilitates access to multiple servers and applications where full bandwidth video quality is critical
• Easy to use OSCAR graphical user interface. The OSCAR interface uses intuitive menus for point and click system configuration and server selection. Allows immediate user interaction with the target computers without any training.
• The user station ships with the AMIQ-PS/2 server interace module. Provides convenient connectivity from PS2-based servers to the AMX switch
• Automatically compensates for varying cable types and lengths such as CAT 5, 5e and 6 including GigaFlex. This ensures a very clear, high-quality, crisp video image for all users.
• High video resolution. Optimal video resolutions up to 1280 x 1024 at 1,000 feet for demanding graphical applications
• Compact design. Doubles as a monitor stand with zero footprint on the desk
• Multi-platform support. Lets you use PS/2 and USB peripherals to connect to the KVM matrix
• Local PC access. Lets you access and control one local computer


Avocent AMX5111 Specifications
Mechanical	Height		1.74 in. (4.4 cm)
	Width		10.9 in. (27.9 cm)
	Depth		11.5 in. (29.2 cm)
	Weight		4.41 lbs. (2.0 kg)
Environmental	Operating Temp		32 to 104 F (0 to 40 C)
	Storage Temp		-4 to 140 F (-20 to 60 C)
Power	Operating Voltage		100 - 240 VAC
	Power Frequency		50 - 60 Hz autosensing
	Input		25 W max
Supported Hardware	Computers		PS/2, Sun and USB
	Monitors		VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75Hz resolution
	Peripherals		PS/2 keyboard and mouse, USB keyboard and mouse
Standards	Approved Agency		UL, FCC, cUL, CE, VCCI, C-TICK, NEMKO-GS, GOST

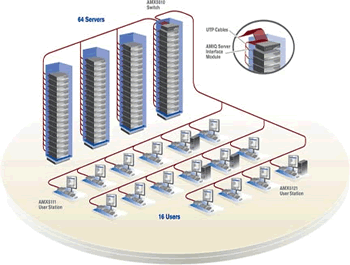

Avocent AMX5111 Diagram
