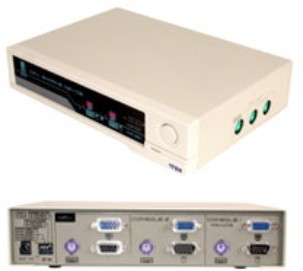

Aten CS221 MasterView Sharing
The CS221 is a powerful microprocessor controlled CPU sharing
device that enables two users to share a single computer. With
two keyboards, mice and monitor consoles, this multiuser-single
tasking device is ideal for any small office environment. All
programs, files, data, and resources can be easily shared without
having to implement networking.
Aten CS221 Features:
- VGA, SVGA Multisync Monitor Split Function
- Auto/Manual Mode Selectable
- Autoscan/Autoswitch are fully transparent to the user
- Private mode for privileged operation
- Screen saver to protect the monitor
- Easy to install and operate
Aten CS221 Requirements:
- 1 VGA, SVGA, or Multisync monitor capable of the highest
resolution that you will be using on any PC in the installation
- 1 PS/2 Style Mouse
- 1 PS/2 Style Keyboard
- 1 VGA, SVGA or Multisync card
- 1 6-pin mini-DIN (PS/2 Style), or DB-9 (standard serial),
mouse port
- 1 6-pin mini-DIN (PS/2 Style) keyboard port with +5V
DC on pin 4 and Ground on pin 3, or 1 5-pin mini-DIN
(AT Style) keyboard port with + 5 DC on pin 5 and Ground
on pin 4
Aten CS221 Package Content:
1 CS221 CPU Sharing Device
1 User Manual
Aten CS221 Specifications:
| Function |
CS221 |
| Case |
|
| Width
|
13.75 |
| Height
|
9.5 |
| Case Qty.
|
5 |
| Length
|
20.25 |
| Connectors |
|
| Video
|
15 pin HDB Female |
| Keyboard
|
6 pin mini-DIN
Female |
| Mouse
|
6 pin mini-DIN
Female |
| LEDs |
|
| Input
|
2 |
| Manual
select |
1 |
| Housing |
|
| Case
|
Plastic / Metail |
| Weight |
|
| Unit Wt.
|
2.4 Lb |
| Case Wt.
|
21.80 Lb |
| Dimensions |
|
| Length
|
9" ( 224 mm) |
| Width
|
6.08" (152 mm) |
| Height
|
2.08" (52 mm) |
| Number
of Users |
2 |
| Shared
Functions |
Keyboard/mouse |
| VGA
port signal |
RGB Analog and
HSYNC VSYNC |
| Video
Resolution |
1024 x 768 |
| Power
Consumption |
AC 9V 200mA (Max.) |
| Function
Keys |
Auto/Manual selection |
