Rose UltraMatrix 8x 8-User
|
|
Rose UltraMatrix 8-User
|
Rose UltraMatrix 8x Rear View
|
Rose UltraMatrix offers the ability to control dozens to
thousands of servers/CPU's. The Rose UltraMatrix can have
either local administrators or in combination with the
Rose UltraLink, authorized users
can securely access and control your servers over IP from anywhere
in the world. Click here for a
Free Rose UltraMatrix Project
Evaluation for detailed configuration information and to
learn if the Rose UltraMatrix would be the best solution for
your needs.
Rose UltraMatrix 8x 8-user KVM
matrix switch
- Connect 1,000 computers to sixteen or more user stations
- Supports PC, Sun, Apple, USB, workstations, and serial
devices
- Plug-in cards makes the system versatile and easy to
expand and maintain
Rose UltraMatrix Features and
Benefits
- UltraMatrix modular design makes units simple to install,
expand, and maintain
- Rose UltraMatrix Security system with user ID, password,
and profile prevents unauthorized configuration and access
- UltraMatrix uses UltraCable for superior cable management
with lengths of up to 100 feet
- UltraMatrix supports video resolution up to 1600 x 1280
- Rose UltraMatrix has an Advanced Visual Interface (AVI)
on-screen display informs you of connection status with
user friendly messages
- Multi-lingual AVI - English, French, German, Spanish,
Italian, Portuguese
- UltraMatrix status screen shows inter-box communication,
connections, computer power, and other information
- Pre-configuration feature allows installation without
powering down servers
- Connect more than 4 users by adding local KVM stations
at each switch
- UltraMatrix has flash memory with free lifetime upgrade
of firmware keeps compatibility with latest devices

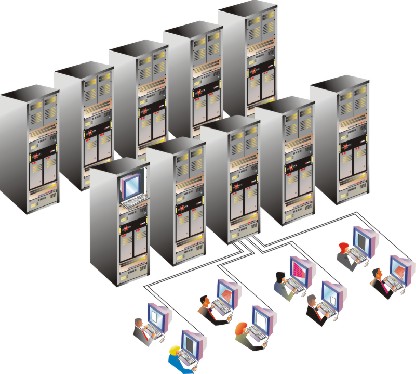

Rose UltraMatrix 8x Application Diagram
The Rose UltraMatrix 8 Advantage...
Rose UltraMatrix 8X offers the latest in KVM switch technology
with the ability to connect up to sixteen non-blocking connections
between keyboards, monitors, and mice to as many as 1,000 computers.
UltraMatrix 8X reduces clutter, saves physical space, and
reduces equipment and power costs. Use the Advanced Visual Interface
to configure the unit, name computers, select computers, and
to show computer connections.
UltraMatrix units connect together with a bus connection
to make a seamless and truly scalable KVM matrix switch. The
advanced distributed design of the UltraMatrix uses networking
communication technology to reduce cost, eliminate single points
of failure, and increase reliability.
Local monitor connection, security, flash memory, system
status, and a long list of other features ensures the UltraMatrix
will streamline your data center or server room. Call us for
more information on this and other excellent Rose products.
Rose UltraMatrix Models UltraMatrix 8X is based on a six-card
chassis which accepts up to four computer/user cards and two
expansion cards. Ultra Matrix comes ready-to-go with the cards
installed according to your order. The maximum you can populate
in one chassis is sixteen computers and four users. You connect
the units together to get more computers and users. The chassis
is versatile for changing as you grow. It makes maintenance
and service easy and supports future hardware.
Rose UltraMatrix 2x (2-Users) |
Rose UltraMatrix 2x Rear
View |
Rose UltraMatrix 4x (4-Users) |
Rose UltraMatrix 4x (4-Users) |
Rose UltraMatrix Cables Roses UltraCable streamlines the
cable connections to UltraMatrix, simplifying cable management
and improving system reliability. Order the computer or user
cable by the computers keyboard, monitor, and mouse connector
style and desired length. We stock a large variety of cable
types in lengths up to 100 feet. You should specify standard
resolution (800x600 or less) or high resolution (greater than
800x600). Expansion cables are ordered by length and are connected
in a ring. You need one cable between boxes for every two global
user stations.
Rose UltraMatrix Installation Rose UltraMatrix is easy to
install. You simply connect your computers and keyboards, monitors,
and mice to the Rose UltraMatrix ports using the UltraCable.
Configure each switchs address and connect the switches together
with the expansion cables. Access the on-screen display from
the Advanced Visual Interface (AVI), configure settings such
as computer names and security, and save it in flash memory.
You'll be impressed by the simplicity and appearance of the
AVI. Since the switches are networked together, configuring
one switch configures them all.
Rose UltraMatrix Operation You can tailor Rose UltraMatrix
to suit your style of operation by configuring the level of
security that you desire. You can either auto-assign security
settings to KVM stations or require users to log into the switch
with a user ID and password. The user profile then grants access
rights to designated computers and controls other characteristics.
Use simple keyboard commands to access computers and system
status. The Advanced Visual Interface gives helpful messages
to indicate the status of all connections. To allow maximum
versatility, users can connect in four different modes: view,
share, control, and private. Each card also has a serial port
if you wish to control the connection of any user station to
any computer by the serial data link of another computer.
Keyboard and Mouse Rose UltraMatrix fully emulates the keyboard
and mouse, so computers can be booted at any time. It supports
all operating systems such as Windows 95/98/NT/2000, Linux,
Sun Solaris/Open Windows, Apple, and Unix workstations. Keyboard
and mouse can be PC or Sun. Five types of computer mice are
directly supported including wheel mice. USB and Apple are supported
with inexpensive external converters.
Rose UltraMatrix Flash Memory To support the latest devices,
Rose UltraMatrix contains flash memory. We provide free lifetime
firmware upgrades, available from our FTP site. Load new firmware
into the Rose UltraMatrix to add new features or support new
equipment.
Advanced Visual Interface Rose UltraMatrix excels with its
Advanced Visual Interface (AVI) on-screen display technology.
The interface is intuitive since it uses pop-up boxes to make
selections. Help lines are shown for each item to make the interface
even more user-friendly. The interface can be programmed for
English, French, German, Spanish, Italian, or Portuguese. You
can easily configure the computer names, security, appearance,
screen saver and many other features with ease and style. Use
the AVI to connect to computers by name, see connection status,
and observe system status in real time.
Rose UltraMatrix Options To locate your computer, keyboard,
monitor, or mouse further than 20 feet, use our coax high-resolution
cables, ViewLink extenders, or CrystalView extenders to go as
far as 1000 feet. Rack mount kits are available for 19li, 23li,
or 24li racks.
| Rose UltraMatrix 8X Part
Numbers
|
| UM8-aXbU/Ec |
where "a" is the number of users (0-4)
where "b" is the number of computers (4-16)
where "c" is the number of expansion cards
|
| UM8-CH* |
6-card
chassis with 8 user video backplane
and universal switching power supply
|
| UMC-14U* |
Plug-in card for 4 computers and 1 user |
| UMC-04U* |
Plug-in card for 4 computers and no
users |
| UMC-EXP8* |
Plug-in card for expansion, supports
8 users |
| RM-UM8/nn |
Rack mount kit, nn= 19", 23", or 24" |
| * Can be ordered separately,
standard unit has cards populated |
| |
|
| Rose UltraMatrix Specifications
|
| Dimensions |
16.7" W x 7.0" D x 7.0" H (4 RU) |
|
42.4 x 17.8 cm x 17.8 cm. |
| Weight Fully populated |
17 lb. (7.7 kg.) |
| Power |
Auto Switching, 90 - 240 VAC, 60 watts |
| Connectors |
Power: IEC 320 standard receptacle CPU/KVM
connector: DB25 female
Expansion: HD15 male/female RS232: RJ45 6 conductor
|
| Video |
250MHz |
| Video sync |
Accepts HV, composite, and sync-on-green
|
| Chassis |
Electro galvanized steel, black powder
coated |
| Controls |
Lighted Power On / Off Switch |
| Indicators |
None |
| Environmental |
0 - 45° C, 5%-80% non-cond. relative
humidity |
| Approvals |
UL, cUL, TUV, CE |
|
