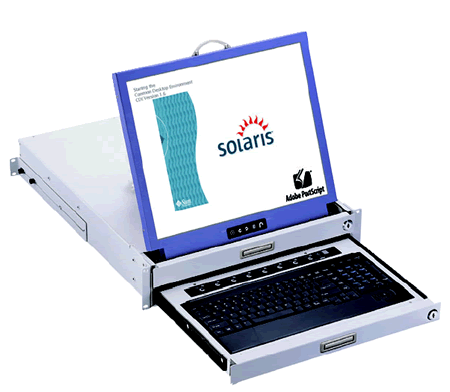

2U Rackmount 20" LCD Monitors with SUN Keyboard
2U Rackmount 20" LCD Monitors with SUN Keyboard

This SUN Rackmount LCD monitor is a combination of keyboard, mouse and monitor in a drawer with features such 1U slim design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.  This rackmount drawers are available with and without an integrated USB or CAT5 KVM Switch.

Rackmount LCD Monitor Supported Software

2U 20" SUN Rackmount LCD Monitor Features

  • 2U 20" TFT LCD screen
  • Allow viewing through closed glass cabinet door
  • The screen will sync with most SUN resolution, including 1152 x900 @ 66 or 76Hz
  • 1600 x 1200 native graphic resolution
  • Compatible with SUN, Apple, IBM, DELL, HP and USB server
  • 104-key SUN-compatible keyboard w/ 3 button trackball supports SUN keys, including Stop, Cut, Paste, Compose, etc.
  • Adjustable mounting brackets compatible with SUN rack depths of 24 to 36 inch
  • All mounting hardware included
  • Single and two console USB KVM options
  • 12, 24, 48-Volt DC power supply options

Integrated KVM Switch Features (only available on models w/ KVM switch)

  • Standard USB KVM or USB two Console KVM Option
  • 8 or 16 PC ports USB KVM option
  • Support VGA resolution up to 1920 x 1440
  • Direct support SUN Micro native resolution 1152 x 900
  • Supplied with 8 x 6ft USB KVM Cable
  • 10ft and 15ft USB KVM cable options available
  • Supplied with 12V 5A remote power adapter (two console model with additional 9 V DC adpater for remote model

2U 20" SUN Rackmount LCD Monitor Specifications

Mechanical
Height
3.5 in. (8.8 cm.)
Width
17.4 in. (44.2 cm.)
Depth
23.6 in. (60 cm.)
Weight
40 lbs. ( 18 kg.)
Environmental
Operation
0 to 50 Degree Celsius
Storage Temp   -5 to 65 Degree Celsius
Relative Humidity   5~90%, non-condensing
Shock   10G acceleration (11ms duration)
Vibration
5~500Hz 1G RMS random vibration
Power
Operating Voltage
110 or 220 VAC
Power Frequency
50 or 60 Hz via AC adapter (12V, 5A)
LCD Screen

LCD Manufacturer / Type

Samsung / grade A industrial TFT LCD Panel
Display Size  20" inch diagonal
Resolution 1152x900 with 66 / 76Hz
1,280 x 1,024 with 60 / 70 / 75Hz
Display color   16.7 M
Brightness   300cd/m2
Contrast Ratio   700:1
Response Time   TR=1.7/ Tf=6.3 ms
Pixel Pitch   0.294 (H) x 0.964 (V) mm
Viewing Angle   75/ 75/ 75/ 60 (L/R/U/D)
Signal Input   VGA, Analog RGB
OSD Control   Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language
LCD MTBF   50,000 hrs

2U 20" Rackmount LCD Monitor Drawer Models w/out KVM Part Number List Price
2U 20" LCD without KVM, 104-keys keyboard with standard SUN hot keys S220 $1857

Corporate & Government Discount Pricing is available at 1-800-638-2638


2U 20" Rackmount LCD Monitor Drawer Models w/ USB KVM Part Number List Price
2U 20" LCD with 8-port USB KVM, (8) CB-6 KVM cable, "S" keyboard w/ SUN hot keys S220-S801 $2279
2U 20" LCD with 16-port USB KVM, (16) CB-6 KVM cables, "S" keyboard w/ SUN
hot keys
S220-S1601 $2500
Corporate & Government Discount Pricing is available at 1-800-638-2638

2U 20" Rackmount LCD Monitor Drawer Models w/ CAT5 KVM Part Number List Price
2U 20" LCD with 16-port CAT5 KVM, "S" keyboard w/ SUN hot keys S220-U1601 $2357
2U 20" LCD with 32-port CAT5 KVM, "S" keyboard w/ SUN hot keys S220-U3201 $2607
2U 20" LCD with 16-port CAT5 KVM, 2 console (1xLocal + 1xRemote), "S" keyboard w/ SUN hot keys S220-U1602 $2586
2U 20" LCD with 32-port CAT5 KVM,  2 console (1xLocal + 1xRemote), "S" keyboard w/ SUN hot keys S220-U3202 $2836
2U 20" LCD with 16-port CAT5 IP KVM, 2 console (1xLocal + 1xIP), "S" keyboard w/ SUN hot keys S220-UIP1602 $2829
2U 20" LCD with 32-port CAT5 IP KVM, 2 console (1xLocal + 1xIP), "S" keyboard w/ SUN hot keys S220-UIP3202 $3079

Corporate & Government Discount Pricing is available at 1-800-638-2638




Discounted Pricing / Online Ordering
Already know what you need and would just like to view discounted pricing or place an online order? May we suggest you visit the following Rackmount LCD Monitor Superstore: Rack mount LCD Monitor Online
