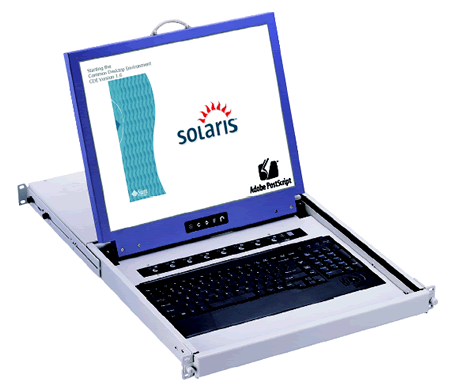

1U Rackmount 17" LCD Monitors with SUN Keyboard
|
This SUN Rackmount LCD monitor is a combination
of keyboard, mouse and monitor in a drawer with features such
1U slim design, adjustable brackets, built in LCD OSD to provide
effective assistant for an administrator to control PC system.
This rackmount drawers are available with and without an integrated
USB or CAT5 KVM Switch.
1U 17" SUN Rackmount LCD Monitor Features
- 1U 17" TFT LCD screen
- The screen will sync with most SUN resolution,
including 1152 x900 @ 66 or 76 Hz
- 1,280 x 1,024 native graphic resolution
- Compatible with SUN, Apple, IBM, DELL, HP
and USB server
- 104-keys SUN-compatible keyboard with 3
button trackball supports SUN keys, including Stop, Cut,
Paste, Compose, etc.
- Adjustable mounting brackets compatible
with SUN rack depth of 24 to 36 inch
- All mounting hardware included
- Single and two consoles USB KVM options
- 12, 24, 48-Volt power supply options
Integrated KVM Switch Features (only
available on models w/ KVM switch)
- Standard USB KVM or USB two Console KVM
Option
- 8 or 16 PC ports USB KVM option
- Support VGA resolution up to 1920 x 1440
- Direct support SUN Micro native resolution
1152 x 900
- Supplied with 8 x 6ft USB KVM Cable
- 10ft and 15ft USB KVM cable options available
- Supplied with 12V 5A remote power adapter
(two console model with additional 9 V DC adapter for remote
model
1U 17" SUN Rackmount LCD Monitor Specifications
|
Mechanical |
 |
Height
|
|
1.75 in. (4.45 cm.) |
|
Width
|
|
17.4 in. (44.2 cm.) |
|
Depth
|
|
23.6 in. (60 cm.) |
|
Weight
|
|
35 lbs. ( 16 kg.) |
|
|
|
|
|
|
Environmental |
Operation
|
|
0 to 50 Degree Celsius |
|
Storage
Temp |
|
-5 to 65 Degree Celsius |
|
Relative Humidity |
|
5~90%, non-condensing |
|
Shock |
|
10G acceleration (11ms duration)
|
|
Vibration
|
|
5~500Hz 1G RMS random vibration |
|
|
|
|
|
|
Power |
Operating
Voltage
|
|
110 or 220 VAC |
|
Power
Frequency
|
|
50
or 60 Hz via AC adapter (12V, 5A) |
|
|
|
|
|
|
|
|
LCD Screen |
LCD Manufacturer / Type
|
|
Samsung / grade A industrial TFT LCD
Panel |
|
Display Size |
|
17" inch diagonal |
|
Resolution |
|
1152x900 with 66 / 76Hz
1,280 x 1,024 with 60 / 70 / 75Hz |
|
Display color |
|
16.2 M |
|
Brightness |
|
300cd/m2 |
|
Contrast Ratio |
|
700:1 |
|
Response Time |
|
TR=2/ Tf=6 ms |
|
Pixel Pitch |
|
0.264 (H) x 0.264 (V) mm |
|
Viewing Angle |
|
75/ 75/ 75/ 60 (L/R/U/D) |
|
Signal Input |
|
VGA, Analog RGB |
|
OSD Control |
|
Brightness, Contrast, Phase & Clock,
Color, H & V Position, Auto-tune, Recall & Language |
|
LCD MTBF |
|
50,000 hrs |
| |
| 1U 17" LCD without
KVM, 104-keys keyboard with standard SUN hot keys |
S117 |
$1415 |
|
Corporate & Government
Discount Pricing is available at 1-800-638-2638
|
| 1U 17" LCD with 8-port
USB KVM, (8) CB-6 KVM cable, "S" keyboard w/ SUN
hot keys |
S117-S801 |
$1808 |
1U 17" LCD with 16-port
USB KVM, (16) CB-6 KVM cables, "S" keyboard w/ SUN
hot keys |
S117-S1601 |
$2046 |
|
Corporate & Government
Discount Pricing is available at 1-800-638-2638
|
| 1U 17" LCD with 16-port
CAT5 KVM, "S" keyboard w/ SUN hot keys |
S117-U1601 |
$1664 |
| 1U 17" LCD with 32-port
CAT5 KVM, "S" keyboard w/ SUN hot keys |
S117-U3201 |
$1914 |
| 1U 17" LCD with 16-port
CAT5 KVM, 2 console (1xLocal + 1xRemote), "S" keyboard
w/ SUN hot keys |
S117-U1602 |
$1893 |
| 1U 17" LCD with 32-port
CAT5 KVM, 2 console (1xLocal + 1xRemote),
"S" keyboard w/ SUN hot keys |
S117-U3202 |
$2143 |
| 1U 17" LCD with 16-port
CAT5 IP KVM, 2 console (1xLocal + 1xIP), "S" keyboard
w/ SUN hot keys |
S117-UIP1602 |
$2163 |
| 1U 17" LCD with 32-port
CAT5 IP KVM, 2 console (1xLocal + 1xIP), "S" keyboard
w/ SUN hot keys |
S117-UIP3202 |
$2386 |
|
Corporate & Government
Discount Pricing is available at 1-800-638-2638
|
|
|
| |
|
|
