Raloy 1U 15" Rack Mount
LCD Monitor |

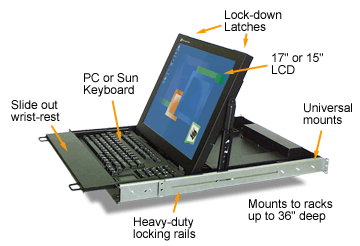

Raloy 1U 15" Rackmount LCD Monitor with Drawer
The Raloy 15",
17" and
19" Rack Mount
LCD Monitor Drawers are 1U high (1.75") pull out trays equipped
with a high resolution, wide viewing angle 15",
17" or
19" LCD. The
unit is designed to fit in a standard 19" rack and to be slid
out for use. Using a Rackmount LCD in your rack allows you to
have more space and use your rack more efficiently - save space...save
money.
Raloy 1U 15" Rackmount LCD Monitor Features
-
15" LCD (specs)
-
250 nits
-
500:1 contrast
ratio
-
1280 x 1024 resolution
at 70Hz
-
25ms seek time
-
11.41" x 15.21
viewing dimensions
-
80-degree viewing
from all four directions
-
Uses only 40watts
-
HD-15 video connector
-
Windows compatible
PS/2 keyboard with touchpad
-
Sun compatible
USB or 8-pin serial keyboard with trackball
-
Fits most 19"
racks from 24" to 38" deep
-
24v, 48v and
400Hz power supplies offered (optional)
-
Built to Mil
Spec 901 - 410 - 461 - 810
-
Solaris Ready
Certified
Raloy 1U 15" Rackmount LCD Monitor
Sun Microsystems Features
-
Test by Sun Microsystems-UK
-
Fits all current
Sun racks
-
Sun-compatible
keyboard
w/ Trackball - Optional
-
Will synch most
Sun resolutions
including 1152x900@66 or 76Hz!
|
Raloy 15" PC, Unix, Sun Rackmount
LCD Monitor Specifications |
|
LCD Technology: |
. Active
matrix TFT color LCD
. 15.1" diagonal screen size
. 1024 x 768 addressable pixels
. 1280 x 1024 maximum resolution
. 0.264mm x 0.26mm pixel pitch
. 250cd/m² (typ.) brightness
. 300:1(typ.) contrast ratio
. Tr: 25ms / Tf: 15ms (typ.)
. L/R=75° / 75°, U/D=55° / 65° viewing angle
. 4 CCFLs backlights lamp with 30,000 hours life (min.)
|
|
Display Resolution: |
1024
pixels(H) x 768 lines(V) |
|
Active Display Area: |
304.1mm(H)
x 228.1mm(V) |
|
Displayable Color: |
16.7M
colors |
|
Horizontal Scan: |
31.5kHz
to 80kHz |
|
Vertical Refresh: |
56Hz
to 75Hz |
|
Pixel Frequency: |
135MHz |
|
Compatibility: |
IBM &
VESA VGA 640 x 350, 70Hz
640 x 400, 70Hz
720 x 400, 70Hz
640 x 480, 60Hz
VESA VGA 640 x 480, 60 / 72 / 75Hz
VESA SVGA 800 x 600, 56 / 60 / 72 / 75Hz
VESA XGA 1024 x 768, 60 / 70 / 75Hz
VESA SXGA 1280 x 1024, 60 / 75Hz
Apple Macintosh 640 x 480, 67Hz
832 x 624, 75Hz
1024 x 768, 75Hz
SunMicro 1152 x 900, 66 / 76Hz
|
|
Input Signal: |
. Video:
analog RGB 0.7 Vp-p
. Sync: separate sync, composite sync, sync. on green |
|
Auto-adjustment: |
Yes |
|
VESA Mounting Interface: |
VESA
Standard 100mm x 100mm |
|
I/O Connectors: |
. DC
power in
. VGA in D-sub 15 pin |
|
User Controls: |
. Multilingual
on screen menu adjustments
. External adjustment button
. External brightness adjustment
. Screen image control items: Auto-Adjustment, Contrast,
Horizontal Position, Vertical Position, Frequency, Tracking,
Display Mode, OSD Off-Time, Language, Text-Graphic,
Reset, Volume, Mute, Color setting, Color adjustment
(R.G.B) |
|
Power Saving: |
VESA
DPMS standard (4 mode) |
|
Power Consumption: |
40 watt
(max.), < 5 watt (off mode) |
|
LCD Agency approval: |
FCC-B,
CE-B, VCCI-II, BSMI, CCIB, UL, CUL, TUV, CB, TCO'99 |
|
Operating Temperature: |
. 0°~40°C
/ 32°~104°F
. Humidity: 80% maximum |
|
Storage Temperature: |
. -20°~60°C
/ -4°~140°F
. Humidity: 95% maximum |
| |
|
|
Raloy Part Number |
Raloy Rackmount LCD Product
Description |
|
RA15-sun-usb |
Raloy
15" Rackmount LCD with SUN USB keyboard |
|
RA15-sun-serial |
Raloy
15" Rackmount LCD with SUN 8-pin Serial keyboard |
|
|
