Avocent SPC1600-AM
Avocent SPC1600-AM Remote Reboot

Avocent SPC1600-AM Solutions

Avocent SPC1600-AM: 16-Port, 20AMP
Secure Power Management over IP

The Avocent SPC1600-AM has been discontinued.  The recommended replacements are the Cyclades Power Management solutions.

Avocent’s SPC1600-AM power management over IP solution sets new standards in the way you securely monitor and manage power to your business-critical servers and other data center network devices. Using Avocent’s DSView Windows application, you can remotely reboot or power cycle servers and network devices from any location using TCP/IP connectivity.

Combined with Avocent’s CPS serial-based network appliance, the SPC1600-AM power distribution unit delivers advanced power management and security. The SPC1600-AM provides enhanced security options, including password protection, port-specific access rights and port groupings. The CPS adds authentication and multiple levels of data encryption for advanced user security.

With DSView, you can access all of your data center devices from a single screen, making complex network access and control remarkably easier. For added user security, Avocent's DSAuth user authentication software stores permissions, topology and per-device contact information for the DS Series. It also performs third party authentication during connection to the switch.

SPC1600-AM, SPC1600-AM, SPC1600-AM1

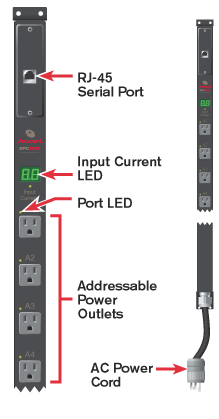

The Avocent SPC1600 16-port intelligent remote reboot power strip allows user to remotely manage and securely control power requirements of up to 16 attached devices from anywhere in the world with an internet connection. Additional remote access and control is granted through implementing the DSView 3 management software program. DSView 3 enables users to easily configure and associate SPC ports with server names of the actual power outlet ports. Combined with the Avocent CCM serial console server network appliance, the SPC remote management device provides users with innovative power control and superior security.

Remote Reboot or power cycle data center devices with Avocent’s secure power management over IP solution.

Avocent SPC1600-AM: Secure Power Management over IP Features

  • Intelligent Power Management. Individual, addressable power outlets let you remotely reboot devices from any location in the data center or across the globe.

  • Security. In addition to port specific and command specific access control, the SPC1600-AM solution provides advanced user authentication and data encryption when combined with Avocent's CPS.

  • Power Monitoring. Dynamically measures and reports total input current load and indicates on/off state for every port.

  • Power Control. Features command-line local and remote power on/off cycling.

  • Energy Efficient. Power-on sequencing eliminates in-rush current overload, which lets you maximize the number of devices on a single circuit.

  • Click and Connect Access. When used with Avocent's DSView Windows application, the SPC1600-AM lets you access power to virtually any connected data center device.

  • Space Saving. Mounts vertically and conserves critical rack space with zero U form.

    Available in 8 and 16 outlet models, with configurable port grouping and naming, multi-port commands and enhanced administration.

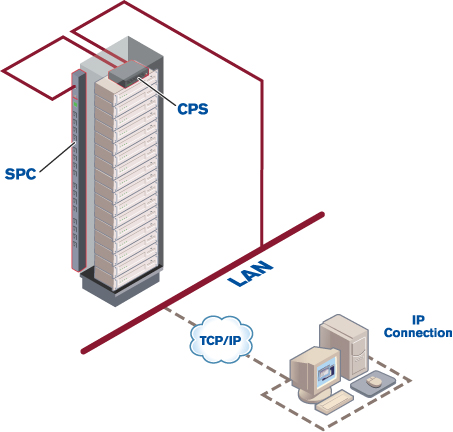

SPC1600-AM, SPC1600-AM, SPC1600-AM1 Diagram

SPC Model # Description Ports Voltage List Price
SPC1600-AM 16 port 115 VAC 20 Amp Twist Lock 16 115 VAC $995.00
SPC1600-AM1 16 port 115 VAC 30 AMP Twist Lock 16 115 VAC $995.00
SPC800-AM 8 Port 115 VAC 20 Amp Twist Lock 8 115 VAC $895.00

Corporate & Government Discount Pricing is available at 1-800-638-2638



SPC1600-AM: Secure Power Management Over IP
Mechanical
Height:
1.75 in.
Width:
2.0 in.
Depth:
62 in
Weight:
12 lbs.
Environmental
Operating Temp:
Storage Temp:

Power
Operating Voltage:
Power Frequency:
60 Hz
Input Power:
120 VAC
Supported
Hardware
Computers:
Monitors:
Peripherals:

Standards
Approved Agency:
US & Canada (cTUVus mark) to UL 60950 3rd Ed. and CAN/CSA 22.2 No. 60950-00


*Avocent SPC1600-AM comes with a One-Year Warranty
