SmartAVI SmartNetX
SmartNet-X SNX16X08 Video Matrix Switch

SmartAVI SNX16X08 Video Switch
SmartAVI SmartNetX SNX16X08

The SmartNet-X SNX16X08 is a 16x8 UXGA/AUDIO/IR over CAT5 video matrix switch with RS422 control. This switch is a high-quality switching matrix for video and stereo audio type signals. All signal formats are catered for including VGA, SVGA, XGA and UXGA. Standard VGA connectors (HD15 sockets) are used on the rear of the video switch for ease of installation of video connectivity and RCAs for computer audio.

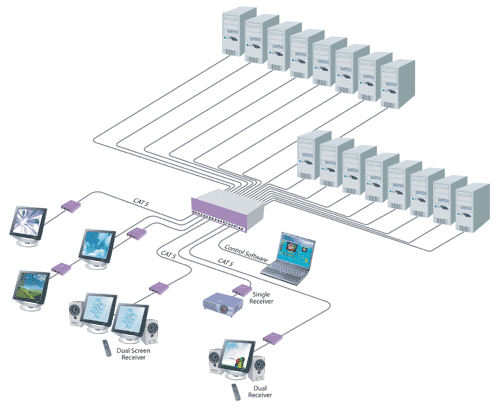

Standard SmartAVI SmartNet-X receiver units are used at the end on each CAT5 cable to recover the signals. High quality receiver circuits incorporating cable loss compensation provide results up to resolutions of 1600 x 1200 @85Hz.

SmartAVI SmartNetX Features & Benefits

High Quality Audio Switching

High Quality Video Switching

High resolution up to 1600 x 1200

InfraRed and RS422 control

PC Windows software control

Integral UTP distribution

Cable compensation up to 300m

Compact metal housing for receivers

Can be mixed with other video signal (RGB, YUV, RGBS)

SmartAVI SNX16X08 Specifications

Mechanical
Height
3.5 in. (88.9 mm.)

Width
19 in. (482 mm.)

Depth
17 in. (450 mm.)

Rack Units
2U

Weight
20 lbs. (9 kg.)

Power
Voltage
90-230V IEC 1A A/S 50/60 Hz

Video Bandwidth 400MHz

Input Signal Level 1Volt pk-pk into 75R

Output Impedance 100 Ohms

Input Impedance 75R Ohms

Connector HD15 socket

Format VGA/SVGA/XGA/RGBHV/
RGsB/CVBS/YC/YUV/RGBS

Syncs TTL5VDC

Audio Signal 15KHz 0dB unbalanced 100ohms impedance

Connector RCA or 3.5mm Stereo Jack

Control IR Individual Control

RS422 Dual RJ45 Sockets

SmartAVI SmartNetX Matrix Video Switches Part Number List Price

SNX16X08S UXGA/AUDIO/IR over CAT5 16x8 matrix with RS422 control including SNX16X08, SRS422 RS232 adapter, SCONTROL software SNX16X08S $7,999

SNX16X04S UXGA/AUDIO/IR over CAT5 16x4 matrix with RS422 control including SNX16X04, SRS422 RS232 adapter, SCONTROL software SNX16X04S $6,999

SNX08X08S UXGA/AUDIO/IR over CAT5 8x8 matrix with RS422 control including SNX08X08, SRS422 RS232 adapter, Smart CONTROL software SNX08X08S $5,999

SNX16X16S UXGA/AUDIO/IR over CAT5 16x16 matrix with RS422 control including SNX16X16, SRS422 RS232 adapter, SCONTROL software SNX16X16S $9,500

SNX32X16S UXGA/AUDIO/IR over CAT5 32x16 matrix with RS422 control including SNX32X16, SRS422 RS232 adapter, SCONTROL software SNX32X16S $15,999

Corporate & Government Discount Pricing is available at 1-800-638-2638

SmartAVI SmartNetX Receivers & Accessories Part Number List Price

16 way IR Blaster breakout unit to allow IR pass-through IRB-16BS $760

UXGA/Audio Point to point Receiver unit SLX-RX100S $199

UXGA/Audio/RS232/IR Point to point CAT5 Receiver unit SLX-RX200S $245

External infrared receiver IR range of 10 to 30ft SM-EYE $45

IR emitter 6ft single LED SM-LED $15

Corporate & Government Discount Pricing is available at 1-800-638-2638
