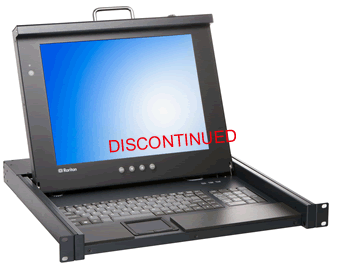

Raritan T1500 LCD Monitor KVM Drawer
The Raritan LCD
Monitor KVM Drawer is one of the first with Integrated
Cat5 Simplicity™. Three models are available to support
multiple data center configurations, each in a compact,
1U rack mount form factor.
The Raritan KVM Drawer is the first
in the industry to offer the convenience of using standard
UTP cabling to connect servers up to 1,000 feet away.
This system integrates Raritan's innovative Z-Series
KVM switch for server management enabling selection
and control of up to 42 servers without consuming precious
rack space. The highly integrated, high density 1U design
allows IT professionals to manage the operations of
their data center servers directly from the racks they
are installed in while maximizing rack space for servers.
Build on the Power of Paragon
The Raritan KVM Drawer offers another
way to access the power of Paragon, the leading KVM
solution used by thousands of major corporations around
the world to control mission-critical servers and other
networking equipment. By combining a Paragon User Station,
15" LCD, keyboard and touch pad mouse in one, compact
1U form factor, the Raritan KVM Drawer enables quick
and efficient access to servers and other network devices.
Raritan T1500 Rackmount Drawer Features
- Industrial design for space critical environments
- High quality Grade A 15" TFT LCD display
- Resolution support up to 1024x768
- Extra strength tempered glass provides safety
in industrial applications
- Heavy duty keyboard and touchpad pointing device
- Physical lock prevents unwanted access to server
consoles
- Space saving 1U design
- Takes up to 85% less space than a standard keyboad,
monitor, and mouse
- Low power consumption: draws less power than
CRT monitors leaving more for servers and storage
- Cable management arm neatly routes all cables
- Ergonomic design: Trackball mouse located below
the space bar for a centrally located input device
- OSD and front panel controls for easy switching
and adjustments
- Compatible with any KVM switch (model T1500)
Raritan T1500 Applications
- Manage the setup, administration, and maintenance
of rackmount servers in data centers, server rooms,
and other space-critical industrial environments
T1500 Specifications
Mounting: 1U Rackmount, 19-inch
(482.6mm)
Display Type : LCD, TFT panel
display
Display Size : 15-inch (381mm)
diagonal
Dimensions (W x H x D) :
17.34” x 1.73” x 19.5”
440mm x 44mm x 495mm
Contrast Ratio : 350:1 (typical)
Viewing Angle :
Horizontal: 60/60 degrees from center
Vertical: 45/55 degrees from center
Display Colors : 16.7 million
Maximum Resolution : XGA
(1024 x 768)
Brightness : 250 nit
Keyboard : PS/2 notebook
style with touchpad
Mouse : Integrated touchpad
with two-button control
Color : Beige
Cable Connector : 15-pin
mini DSUB
Screen Controls : Menu, auto
adjustment, brightness, contrast, phase, H/V position,
pitch, zoom, color, language, and OSD position
Weight : 37.5 lb (17 kg)
Power : 90~264VAC, 47~63Hz,
auto-switching
Agency Approvals : FCC Conformity
with Part 15, Subpart B, UL Listed, CE Conformity
| Part # |
Description |
List Price |
| T1500
|
KVM Drawer with 15 inch flat panel |
Discontinued |
