Raloy 1U 17" Rackmount LCD Monitor
Raloy 1U Rackmount LCD Monitor"
- 17" ultra bright/contrast TFT screen
- Meets EIA-310C & IEC-3 specifications
- Industrial metal
- Available in black
- 105-key keyboard w/built-in touch pad or standard
keyboard optional
- Keyboard available in multiple languages
- 17.1" TFT 1280 x 1024
- Anti-glare tempered glass for added protection to
the LCD screen
- Built-in side railing for instant installation
- 50W, +48V, 80W auto-switching power supply
- Movable front panel provides additional comfort
during data entry
- Custom colors available
- Optional DC power supply
- Optional 8 port kvm switch comes with 8 sets of kvm cables
- Optional 16 port kvm switch comes with 16 sets of kvm cables
- 1 year manufacturer warranty
The integration of data and video, and voice
communication in computers and the subsequent technological advances
have spawn many sophisticated CTI applications that have become
accessible and affordable to the small and mid-sized business. The
increasing CTI applications coupled with the growing demand for
corresponding hardware and systems have created a dilemma: How does one
pack the growing number of equipment into existing space?
Raloy's 1U slim industrial monitor keyboard, the
Raloy, is the solution for compacting more computing power into limited space.
This revolutionary monitor keyboard combines a spectacular display
coupled with a keyboard with built-in pointing device in a compact unit
that measures only 1U in height. Occupying a fraction of the space of
traditional monitor and keyboard units, the installation of the Raloy
leaves ample space for other critical components. With built-in
analog-to-digital conversion board, the Raloy can be connected to
any standard VGA graphics card for immediate on-screen display. The
monitor key-board unit has a built-in slide rail and mounts easily onto
any 19" rackmount cabinet.
*Optional Integrated 8 and 16 Port KVM Switch Available
Raloy 1U Rackmount 17" LCD Monitor (Back)

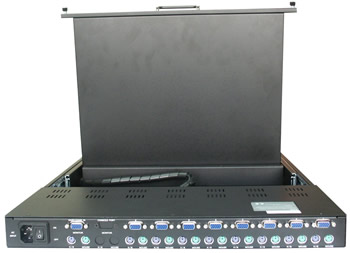

*Raloy 1U Rackmount 17" LCD Monitor with Optional 8 Port KVM
Switch (Back)
*Raloy 1U Rackmount 17" LCD Monitor with Optional 16 Port KVM
Switch
Raloy 1U Rackmount 17" LCD Monitor with Optional 16 Port KVM
Switch (Back)
|
|
I
|
II
|
III
|
|
Model No
|
RA17
|
RA17KVM8
|
RA17KVM16
|
|
Ports switch for
PC
|
none
|
8 ports
|
16 ports
|
|
Weight
|
15kgs (33.3lbs)
|
16kgs (35.5lbs)
|
17.5kgs (38.5lbs)
|
|
Dimension
|
17.5" x 1.75" x 21.65"
(W x H x D)
444.5mmx44.5mmx550mm
(W x H x D)
|
17.5" x 1.75" x 23.22"
(W x H x D)
444.5mm x 44.5mm x 590mm
(W x H x D)
|
17.5" x 1.75" x 24.625"
(W x H x D)
444.5mm x 44.5mm x 625.0mm
(W x H x D)
|
|
Power Supply
|
1U, AC 50W, DC +48V, 80W
auto switching
|
1U, 50W
auto switching
|
1U, 50W
auto switching
|
|
A/D Board
|
CB7301
|
CB7301
|
CB7301
|
|
Extension Cable
|
none
|
3 IN 1
|
3 IN 1
|
|
Extension Rail
|
Up to 35.4"
(900mm)
|
Up to 35.4"
( 900mm)
|
Up to 35.4"
( 900 mm)
|
|
Construction
Material
|
Industrial Metal
|
|
Keyboard
|
Membrane 105 key with touchpad
|
|
Language
|
US, UK, Chinese
*
|
|
Color
|
Black
|
|
Protection
|
Tempered glass
|
|
Security Lock
|
Thumb screw x 2
|
|
Operation
Temperature
|
0-50° C (32-122°F)
|
|
Display
|
|
Diagonal
|
17" (431.8mm)
|
|
LCD Resolution
|
1280 x 1024
|
|
Display Area
|
337.92 x 270.34
|
|
Contrast Ratio
|
400:1
|
|
Frame Rate
|
60Hz (typ), 75Hz (Max)
|
|
KVM Switch
|
|
KVM Switch Port
|
16
|
|
Operating System
|
DOS, Win 3.X, Win
95/98/98SE/2000/ME/XP,
WinNT, Netware, SCO Uix, HP Unix, Linux
|
|
Hot Plug
|
Add PCs or Remove Connected PCs
for Maintenance
without powering down the KVM switch for PCs
|
|
Video Quality
|
Up to 1920 x 1440 with 200 MHz
bandwidth
|
|
Auto Scan Mode
|
5s - 99s
|
|
USB-PS2
|
USB to PS2 for converting KVM
PS2 port to USB PC,
MAC or USB SUN Microsystems (optional)
|
* Other
languages are available upon request.
|
