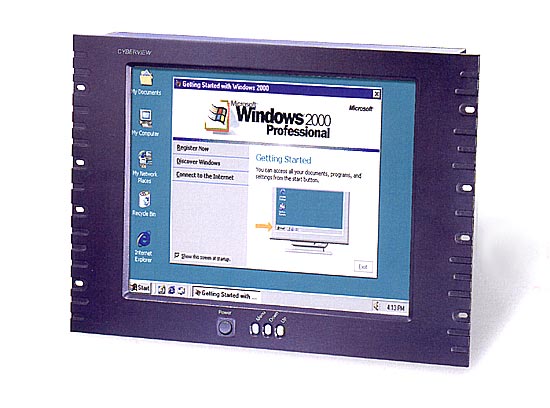

8U 17" Rack Mount LCD Monitor
Rack Mount LCD Monitor Solutions

8U Rackmount 17" LCD Monitors

8U Rackmount LCD Monitor Features

• Styled 6mm aluminum front panel
• 19" design for Rackmount cabinet
• Space-saving - Extra rack mounting space from the back of LCD panel
• Rugged metal construction
• All black cladding is pre-treated and finished in powder coated paint
• Three models to choose from 13.3", 15" or 17" LCD panel
• Front access power switch & status LED
• Built in on screen display for adjustment of screen
• Side to side wide-angle viewing as CRT monitor
• Standard D-sub 15-pin VGA input connector
• Lower power consumption
• EMC shielding around the monitor housing to minimize interference
• All mounting hardware included

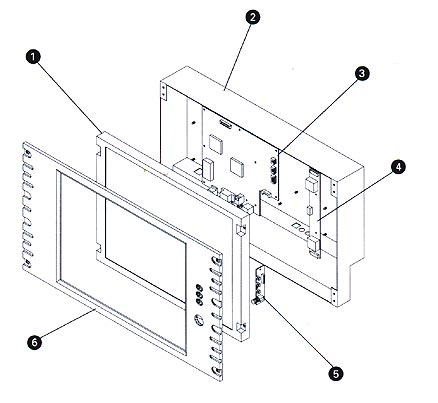

8U Rack Mount 17" LCD Monitor Contents

1. Active matrix TFT LCD panel
2. Rear metal case
3. Analog-to-digital signal converter board
4. inverter
5. OSD controller board
6. Aluminum front panel

8U Rack Mount 17" LCD Monitor Features

• Panel
  17" LCD panel
• Display type
  TFT/ LCD active matrix color
• Resolutions
  1280 x 1024
• Response time
  Tr=20ms/ Tf=15ms
• Contrast ratio
  300 : 1 typical
• Brightness
  200 cd/ m2 typical
• Pixel pitch
  0.264mm (H) x 0.264mm (W )
• Panel color
  16.7million display colors
  Viewing angle
  160º (Horiz.)/160º (Vert.)

• Storage temp.
  0ºC to 50ºC

• Operating temp.
  -20ºC to 60ºC
• MTBF
  20,000 hours

Power supply

• Remote adapter:
  110V - 220V AC input 12V 5A Output
• Adapter Size:
  10.8(L) x 6.1 (W) x 3(H)cm
• Cable length from mains plug to adapter:
  182cm
• Cable length from adapter to unit:
  180cm
• Safety approval:
  UL, CE
• Mains plug options available
• Optional -48V DC input

Dimensions

• Product dimension-
  48(w) x 27(H) x 6.5(D)cm
• Packing dimension-
  51(L) x 57(W) x 21(H)cm
