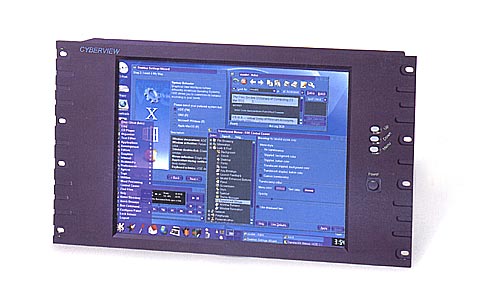

6U Rackmount 15" LCD Monitors
6U Rackmount LCD Monitor Features
- Styled 6mm
aluminum front panel
- 19" design for
Rackmount cabinet
- Space-saving -
Extra rack mounting space from the back of LCD panel
- Rugged metal
construction
- All black
cladding is pre-treated and finished in powder coated paint
- Three models to
choose from 13.3", 15" or 17" LCD panel
- Front access
power switch & status LED
- Built in on
screen display for adjustment of screen
- Side to side
wide-angle viewing as CRT monitor
- Standard D-sub
15-pin VGA input connector
- Lower power
consumption
- EMC shielding
around the monitor housing to minimize interference
- All mounting
hardware included
6U Rack Mount 15" LCD
Monitor Contents
- Active matrix
TFT LCD panel
- Rear metal
case
-
Analog-to-digital signal converter board
- inverter
- OSD
controller board
- Aluminum
front panel
6U Rack Mount
15" LCD Monitor Features
-
Panel
15"
LCD panel
-
Display type
TFT/ LCD active
matrix color
-
Resolutions
1224 x 768 -
Response time
Tr=5ms/ Tf=20ms -
Contrast ratio
300
: 1 typical
-
Brightness
250 cd/ m2 typical
-
Pixel pitch
0.297mm (H) x 0.297mm (W ) -
Panel color
16.7million display
colors
Viewing angle
140º (Horiz.)/120º
(Vert.) -
Storage temp.
0ºC to 50ºC
-
Operating temp.
-20ºC to 60ºC
-
MTBF
35,000 hours
Power
supply
-
Remote adapter:
110V - 220V AC
input 12V 5A Output
-
Adapter Size:
10.8(L) x 6.1 (W) x
3(H)cm
-
Cable length from mains plug to adapter:
182cm
-
Cable length from adapter to unit:
180cm
-
Safety approval:
UL, CE
-
Mains plug options available
-
Optional -48V DC input
Dimensions
-
Product dimension-
48(w) x 27(H) x
6.5(D)cm -
Packing dimension-
42(L) x 57(W) x
21(H)cm
