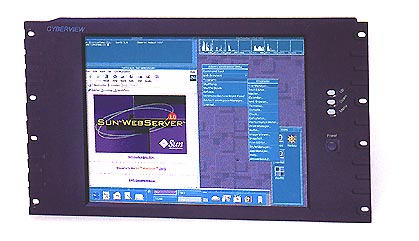

6U Rackmount 13" LCD Monitors
We no longer offer this product. Please visit
6U 15" Rack Mount LCD Monitor
for replacement.
6U Rackmount LCD Monitor Features
- Styled 6mm
aluminum front panel
- 19" design for
Rackmount cabinet
- Space-saving -
Extra rack mounting space from the back of LCD panel
- Rugged metal
construction
- All black
cladding is pre-treated and finished in powder coated paint
- Three models to
choose from 13.3", 15" or 17" LCD panel
- Front access
power switch & status LED
- Built in on
screen display for adjustment of screen
- Side to side
wide-angle viewing as CRT monitor
- Standard D-sub
15-pin VGA input connector
- Lower power
consumption
- EMC shielding
around the monitor housing to minimize interference
- All mounting
hardware included
6U Rack Mount 13" LCD
Monitor Contents
- Active matrix
TFT LCD panel
- Rear metal
case
-
Analog-to-digital signal converter board
- inverter
- OSD
controller board
- Aluminum
front panel
6U Rack Mount
13" LCD Monitor Features
-
Panel
13.3"
LCD panel
-
Display type
TFT/ LCD active
matrix color
-
Resolutions
1024 x 768 -
Response time
Tr=20ms/ Tf=20ms -
Contrast ratio
150
: 1 typical
-
Brightness
100 cd/ m2 typical
-
Pixel pitch
0.264mm (H) x 0.264mm (W ) -
Panel color
262K display colors
Viewing angle
100º (Horiz.)/70º
(Vert.) -
Storage temp.
0ºC to 50ºC
-
Operating temp.
-25ºC to 60ºC
-
MTBF
35,000 hours
Power
supply
-
Remote adapter:
110V - 220V AC
input 12V 5A Output
-
Adapter Size:
10.8(L) x 6.1 (W) x
3(H)cm
-
Cable length from mains plug to adapter:
182cm
-
Cable length from adapter to unit:
180cm
-
Safety approval:
UL, CE
-
Mains plug options available
-
Optional -48V DC input
Dimensions
-
Product dimension-
48(w) x 27(H) x
6.5(D)cm -
Packing dimension-
42(L) x 57(W) x
21(H)cm
