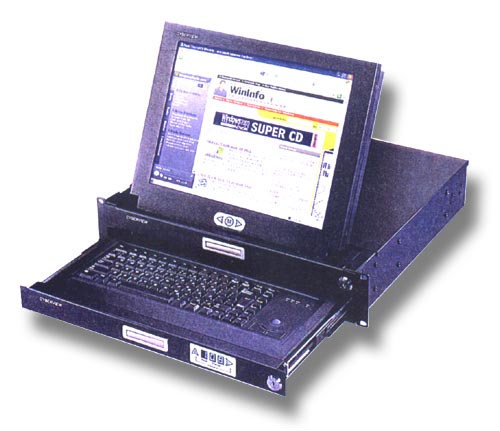

2U 13" Rack Mount LCD Monitor
|
2U Rackmount 13" LCD Monitors with
Keyboard Drawer
Please note that
this product has been discontinued. Please refer to the following link
for the replacement product.
2U
Folding Rackmount LCD Monitor with Keyboard Features
- Unique monitor
flip up design allows viewing through closed glass door of cabinet
- Adjustable
mounting brackets from 390 to 650mm ( front to rear 19" mounts)
- Suitable for
600mm deep 19" cabinet
- May be fitted
into an 800mm deep rack by the use of extended brackets on request
- Lightweight
aluminum construction - with a black anodize finish
- Three models to
choose from 13.3", 15", 17" LCD panel
- 13.3" TFT panel
with 1024 x 768 native resolution
- Built in on
screen display controlled by integral membrane switches
- Keyboard
options supporting twelve languages
- Optional video
input or touch screen
- Custom colors
available for OEM
- All mounting
hardware included
Optional KVM Switch
- Built in KVM
switch function for easy controlling and monitoring up to 8 residing
servers/ platforms
- Support eight
characters password protection and search PC server name
- Auto scan mode
for monitoring PCs and flexible scan time from 5-99 seconds
- LED display for
easy status monitoring
- Supplied with
eight screened cables 6ft long
2U Rack Mount 13" LCD
Monitor & Keyboard Contents
Active matrix
TFT LCD panel
Rear metal case
Analog-to-digital signal converter board
lnverter
8-port KVM
control board
Adjustable
mounting bracket
Ball bearing
telescopic slides
Security lock
KVM LED display
Front handle
Gel wrist-pad
Keyboard w/
trackball
OSD membrane
switches
Front metal
case
2U Rack Mount
13" LCD Monitor Features
-
Panel
13.3"
LCD panel
-
Display type
TFT/ LCD active
matrix color
-
Resolutions
Up to 1024 x 768 -
Response time
Tr=20ms/ Tf=20ms -
Contrast ratio
150
: 1 typical
-
Brightness
100 cd/ m2 typical
-
Pixel pitch
0.264mm (H) x 0.264mm (W ) -
Panel color
16.7 million display
colors
Viewing angle
100º (Horiz.)/70º
(Vert.) -
Storage temp.
0ºC to 50ºC
-
Operating temp.
-25ºC to 60ºC
-
MTBF
35,000 hours
Keyboard
- Keyboard:
Integrated,
high-quality PS/2 compatible 16mm Logitech trackball
84 keys (European
layouts), 83 keys ( US layout)
- Cursor keys
retained
Product dimension
- 43.9(W) x 8.8(H) x 44(D)cm
Packing dimension - 59.5(L) x 57(W) x 22(H)cm
Power
supply
-
Remote adapter:
110V - 220V AC
input 12V 5A Output
-
Adapter Size:
10.8(L) x 6.1 (W) x
3(H)cm
-
Cable length from mains plug to adapter:
182cm
-
Cable length from adapter to unit:
180cm
-
Safety approval:
UL, CE
-
Mains plug options available
-
Optional -48V DC input
Dimensions
-
Product dimension-
43.9(w) x 4.45(H) x
60(D)cm
-
Packing dimension-
79(L) x 57(W) x 15.5(H)cm
|
|
