1U 17" Rack Mount LCD Monitor

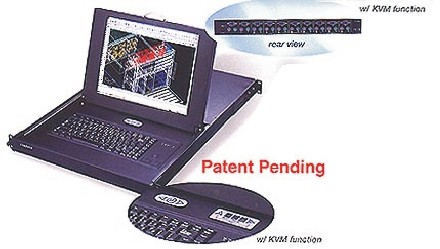

rack mount lcd monitor
1U Rackmount 17" LCD Monitors with Keyboard Drawer

1U Folding Rackmount LCD Monitor with Keyboard Features

  • Unique mechanical design to maximize rack mountable space
  • Adjustable mounting brackets for multiple depth cabinets between 750mm and 1000mm
  • Anodized aluminum front panel
  • High quality Cherry keyboard with integrated trackball
  • Keyboard options supporting twelve languages
  • Three models to choose from 13.3", 15" or 17" LCD panel
  • Side to side wide-angle viewing as CRT monitor
  • Built in on screen display controlled by integral membrane switches
  • Power saving feature for prolonging the life of LCD panel
  • Standard D-sub 15-pin VGA input connector
  • Build-in slide rail and mounts easily in any 19" cabinet
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included

Optional KVM Switch

  • Built in KVM switch function for easy controlling and monitoring up to 8 residing servers/ platforms
  • Support eight characters password protection and search PC server name
  • Auto scan mode for monitoring PCs and flexible scan time from 5-99 seconds
  • LED display for easy status monitoring
  • Supplied with eight screened cables 6ft long




rack mount lcd monitor

1U Rack Mount 17" LCD Monitor & Keyboard Contents

  1. Active martix TFT LCD panel
  2. Rear metal case
  3. 8-port KVM control board
  4. Adjustable mounting bracket
  5. Analog-to-digital signal converter board
  6. lnverter
  7. Ball bearing telescopic slides
  8. KVM LED display
  9. OSD membrane switches
  10. Front cover
  11. Front metal case
  • 1U Rack Mount 17" LCD Monitor Features

    • Panel
      17" LCD panel
    • Display type
      TFT/ LCD active matrix color
    • Resolutions
      1280 x 1024
    • Response time
      Tr=5ms/ Tf=20ms
    • Contrast ratio
      350 : 1 typical
    • Brightness
      250 cd/ m2 typical
    • Pixel pitch
      0.264mm (H) x 0.264mm (W )
    • Panel color
      16.7 million display colors
      Viewing angle
      150º (Horiz.)/125º (Vert.)
    • Storage temp.
      0ºC to 50ºC
    • Operating temp.
      -20ºC to 60ºC
    • MTBF
      20,000 hours

    Power supply

    • Remote adapter:
      110V - 220V AC input 12V 5A Output
    • Adapter Size:
      10.8(L) x 6.1 (W) x 3(H)cm
    • Cable length from mains plug to adapter:
      182cm
    • Cable length from adapter to unit:
      180cm
    • Safety approval:
      UL, CE
    • Mains plug options available
    • Optional -48V DC input
    • Product dimension-
      43.9(w) x 4.45(H) x 60(D)cm
    • Packing dimension-
      73.5(L) x 57.5(W) x 18(H)cm
