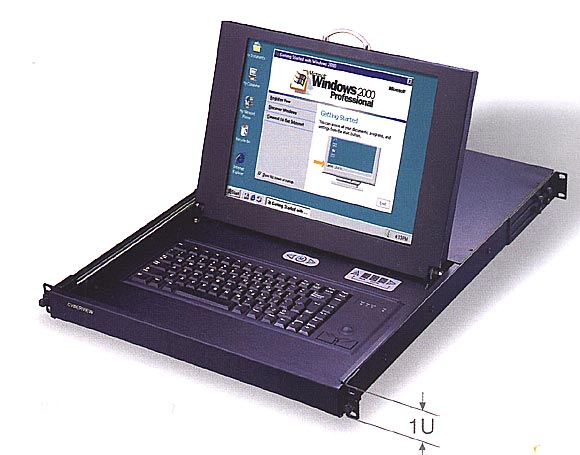

1U 15" Rack Mount LCD Monitor
|
1U Rackmount 15" LCD Monitors with
Keyboard Drawer
1U
Folding Rackmount LCD Monitor with Keyboard Features
- Unique
mechanical design to maximize rack mountable space
- Adjustable
mounting brackets for multiple depth cabinets between 750mm and 1000mm
- Anodized
aluminum front panel
- High quality
Cherry keyboard with integrated trackball
- Keyboard
options supporting twelve languages
- Three models to
choose from 13.3", 15" or 17" LCD panel
- Side to side
wide-angle viewing as CRT monitor
- Built in on
screen display controlled by integral membrane switches
- Power saving
feature for prolonging the life of LCD panel
- Standard D-sub
15-pin VGA input connector
- Build-in slide
rail and mounts easily in any 19" cabinet
- EMC shielding
around the monitor housing to minimize interference
- All mounting
hardware included
Optional KVM Switch
- Built in KVM
switch function for easy controlling and monitoring up to 8 residing
servers/ platforms
- Support eight
characters password protection and search PC server name
- Auto scan mode
for monitoring PCs and flexible scan time from 5-99 seconds
- LED display for
easy status monitoring
- Supplied with
eight screened cables 6ft long
1U Rack Mount 15" LCD
Monitor & Keyboard Contents
- Active martix
TFT LCD panel
- Rear metal case
- 8-port KVM
control board
- Adjustable
mounting bracket
-
Analog-to-digital signal converter board
- lnverter
- Ball bearing
telescopic slides
- KVM LED display
- OSD membrane
switches
- Front cover
- Front metal
case
1U Rack Mount
15" LCD Monitor Features
-
Panel
15"
LCD panel
-
Display type
TFT/ LCD active
matrix color
-
Resolutions
1024 x 768-
Response time
Tr=5ms/ Tf=20ms -
Contrast ratio
300 : 1 typical
-
Brightness
250 cd/ m2 typical
-
Pixel pitch
0.297mm (H) x 0.297mm (W ) -
Panel color
16.7 million display
colors
Viewing angle
140º (Horiz.)/120º
(Vert.) -
Storage temp.
0ºC to 50ºC -
Operating temp.
-20ºC to 60ºC
-
MTBF
35,000 hours
Power
supply
-
Remote adapter:
110V - 220V AC
input 12V 5A Output
-
Adapter Size:
10.8(L) x 6.1 (W) x
3(H)cm
-
Cable length from mains plug to adapter:
182cm
-
Cable length from adapter to unit:
180cm
-
Safety approval:
UL, CE
-
Mains plug options available
-
Optional -48V DC input
-
Product dimension-
43.9(w) x 4.45(H) x
60(D)cm -
Packing dimension-
79(L) x 57(W) x 15.5(H)cm
|
|
