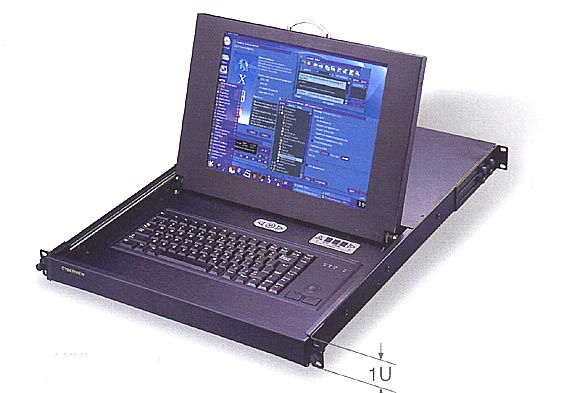

1U 13" Rack Mount LCD Monitor
|
1U Rackmount 13" LCD Monitors with
Keyboard Drawer
Please note that
this product has been discontinued. Please refer to the following link
for the replacement product.
1U
Folding Rackmount LCD Monitor with Keyboard Features
- Unique
mechanical design to maximize rack mountable space
- Adjustable
mounting brackets for multiple depth cabinets between 750mm and 1000mm
- Anodized
aluminum front panel
- High quality
Cherry keyboard with integrated trackball
- Keyboard
options supporting twelve languages
- Three models to
choose from 13.3", 15" or 17" LCD panel
- Side to side
wide-angle viewing as CRT monitor
- Built in on
screen display controlled by integral membrane switches
- Power saving
feature for prolonging the life of LCD panel
- Standard D-sub
15-pin VGA input connector
- Build-in slide
rail and mounts easily in any 19" cabinet
- EMC shielding
around the monitor housing to minimize interference
- All mounting
hardware included
Optional KVM Switch
- Built in KVM
switch function for easy controlling and monitoring up to 8 residing
servers/ platforms
- Support eight
characters password protection and search PC server name
- Auto scan mode
for monitoring PCs and flexible scan time from 5-99 seconds
- LED display for
easy status monitoring
- Supplied with
eight screened cables 6ft long
1U Rack Mount 13" LCD
Monitor & Keyboard Contents
- Active martix
TFT LCD panel
- Rear metal case
- 8-port KVM
control board
- Adjustable
mounting bracket
-
Analog-to-digital signal converter board
- lnverter
- Ball bearing
telescopic slides
- KVM LED display
- OSD membrane
switches
- Front cover
- Front metal
case
1U Rack Mount 13" LCD Monitor Features
-
Panel
13.3"
LCD panel
-
Display type
TFT/ LCD active
matrix color
-
Resolutions
Up to 1024 x 768-
Response time
Tr=20ms/ Tf=20ms -
Contrast ratio
150 : 1 typical
-
Brightness
100 cd/ m2 typical
-
Pixel pitch
0.264mm (H) x 0.264mm (W ) -
Panel color
262K display colors
Viewing angle
100º (Horiz.)/70º
(Vert.) -
Storage temp.
0ºC to 50ºC -
Operating temp.
-20ºC to 60ºC
-
MTBF
35,000 hours
Power
supply
-
Remote adapter:
110V - 220V AC
input 12V 5A Output
-
Adapter Size:
10.8(L) x 6.1 (W) x
3(H)cm
-
Cable length from mains plug to adapter:
182cm
-
Cable length from adapter to unit:
180cm
-
Safety approval:
UL, CE
-
Mains plug options available
-
Optional -48V DC input
-
Product dimension-
43.9(w) x 4.45(H) x
55(D)cm -
Packing dimension-
79(L) x 57(W) x 15.5(H)cm
|
|
