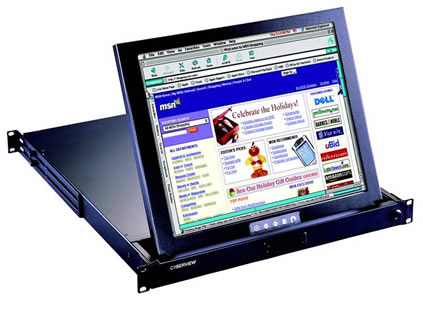

1U Rackmount 17" LCD Monitors with
Drawer

1U Rackmount LCD Monitor Features
- Unique
mechanical design to maximize rack mountable space
- Unique monitor
flip up design allows viewing through closed glass door of cabinet
- Adjustable
mounting brackets for multiple depth cabinets between 650mm and 1000mm
- Lightweight
aluminum construction - with a black anodize finish
- Three models to
choose from 13.3", 15" or 17" LCD panel
- Side to side
wide-angle viewing as CRT monitor
- Built in on
screen display controlled by integral membrane switches
- Power saving
feature for prolonging the life of LCD panel
- Standard D-sub
15pin VGA input connector
- Front-access
lock for security
- EMC shielding
around the monitor housing to minimize interference
- All mounting
hardware included

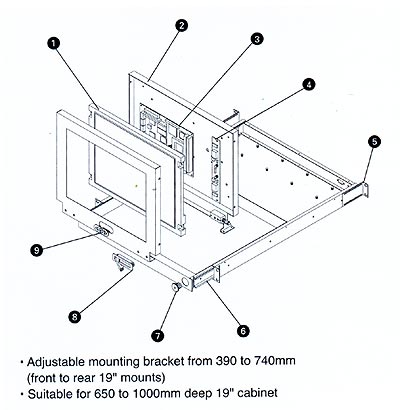

1U Rack Mount 17" LCD
Monitor Contents
Active matrix TFT
LCD panel
Rear metal case
Analog-to-digital
signal converter board
Inverter
Adjustable
mounting bracket
Ball bearing
telescopic slides
Security lock
Front handle
OSD controller
board

1U Rack Mount 17" LCD Monitor Features
-
Panel
17"
LCD panel
-
Display type
TFT/ LCD active
matrix color
-
Resolutions
Up to 1280 x 1024
-
Response time
Tr=20ms/ Tf=15ms -
Contrast ratio
300 : 1 typical
-
Brightness
200 cd/ m2 typical
-
Pixel pitch
0.264mm (H) x 0.264mm (W ) -
Panel color
16.7 million display
colors
Viewing angle
160º (Horiz.)/160º
(Vert.) -
Storage temp.
0ºC to 50ºC -
Operating temp.
-20ºC to 60ºC
-
MTBF
35,000 hours
Power
supply
-
Remote adapter:
110V - 220V AC
input 12V 5A Output
-
Adapter Size:
10.8(L) x 6.1 (W) x
3(H)cm
-
Cable length from mains plug to adapter:
182cm
-
Cable length from adapter to unit:
180cm
-
Safety approval:
UL, CE
-
Mains plug options available
-
Optional -48V DC input
-
Product dimension-
43.9(w) x 4.45(H) x
55(D)cm -
Packing dimension-
70(L) x 57(W) x 15.5(H)cm
