1U 13" Rack Mount LCD Monitor

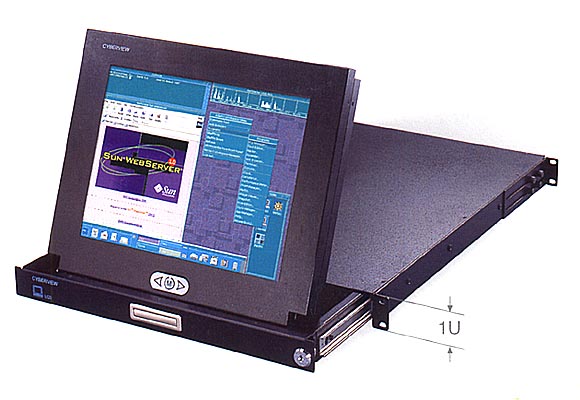

rack mount lcd monitor
1U Rackmount 13" LCD Monitors with Drawer



Please note that this product has been discontinued. Please refer to the following link for the replacement product.

http://www.42u.com/rack-mount-lcd-monitor-15.htm

1U Rackmount LCD Monitor Features

  • Unique mechanical design to maximize rack mountable space
  • Unique monitor flip up design allows viewing through closed glass door of cabinet
  • Adjustable mounting brackets for multiple depth cabinets between 650mm and 1000mm
  • Lightweight aluminum construction - with a black anodize finish
  • Three models to choose from 13.3", 15" or 17" LCD panel
  • Side to side wide-angle viewing as CRT monitor
  • Built in on screen display controlled by integral membrane switches
  • Power saving feature for prolonging the life of LCD panel
  • Standard D-sub 15pin VGA input connector
  • Front-access lock for security
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included

rack mount lcd monitor in rack

1U Rack Mount 13" LCD Monitor Contents

  • Active matrix TFT LCD panel
  • Rear metal case
  • Analog-to-digital signal converter board
  • Inverter
  • Adjustable mounting bracket
  • Ball bearing telescopic slides
  • Security lock
  • Front handle
  • OSD controller board
  • rack mount lcd monitor diagram

    1U Rack Mount 13" LCD Monitor Features

    • Panel
      13.3" LCD panel
    • Display type
      TFT/ LCD active matrix color
    • Resolutions
      Up to 1024 x 768
    • Response time
      Tr=20ms/ Tf=20ms
    • Contrast ratio
      150 : 1 typical
    • Brightness
      100 cd/ m2 typical
    • Pixel pitch
      0.264mm (H) x 0.264mm (W )
    • Panel color
      262K display colors
    • Viewing angle
      100º (Horiz.)/ 70º (Vert.)
    • Storage temp.
      0ºC to 50ºC
    • Operating temp.
      -20ºC to 60ºC
    • MTBF
      35,000 hours

    Power supply

    • Remote adapter:
      110V - 220V AC input 12V 5A Output
    • Adapter Size:
      10.8(L) x 6.1 (W) x 3(H)cm
    • Cable length from mains plug to adapter:
      182cm
    • Cable length from adapter to unit:
      180cm
    • Safety approval:
      UL, CE
    • Mains plug options available
    • Optional -48V DC input
    • Product dimension-
      43.9(w) x 4.45(H) x 55(D)cm
    • Packing dimension-
      70(L) x 57(W) x 15.5(H)cm
