Eaton Powerware BladeUPS

The Powerware BladeUPS is a power quality solution, which expands power protection from 12 kW to 60 kW in a single industry standard 19-inch rack, and most significantly, providing this robust, compact solution without generating the additional heat associated with legacy end-of-row, modular UPS products. The BladeUPS is designed to be the most flexible UPS on the market. It can be deployed in a number of configurations from a distributed architecture (one in every rack), to end of row (up to six units in a rack), to a central system (not on the IT floor, but in the electrical closet). In addition, the exceptionally high efficiency rating is not a large energy cost burden when installed inline with the output of a large, central UPS or in highly critical computing areas where dual UPS redundancy (2N) is required.

Why use Powerware BladeUPS?

High-density computing environments demand more power!
Today, the management of a data center or network operations center places you under the intense pressure to reduce costs while dealing with inescapable operational realities:

Expanding power demands - The blade servers that are satisfying business demands can also raise the demands for power consumption in the same footprint. Rack power requirements that were once at 60 watts per U may now have to be delivered at levels up to 600 watts per U with redundant power supplies.

Increasing power costs - Utility rates have a common recurrence.  They always go up. IDC research reports that energy costs represent a dominant influence on IT spending (IDC U.S. Market Watch Survey, Q2 2006, September 7, 2006). Most organizations are researching and developing plans for the selection of new data center sites based on the proximity of affordable power facilities. The need for more cost-effective power solutions is confirmed in a recent Gartner research report. Power will be 50% of data center operational costs (Gartner RAS Core Research, August 18, 2006).

Excessive heat - Blade servers generate a lot of heat-translating into a high demand for additional energy. A fully loaded rack of blade servers can use close to 30kW of power. This equals over 100,000 BTU/hr in heat generation that requires cooling-wasted heat that is not utilized in any way. Since cooling adds huge costs to data center operations, IT organizations are forced to increase their power efficiency to counteract the inefficient heat and cooling problems.

If you manage, engineer, or plan the present and future of a data center or network operations center, you are already aware of these critical issues and their impact on operations. Your challenge is to make decisions that provide efficient power protection and distribution for growing loads, while managing the heat.

Powerware BladeUPS UPS System
Powerware BladeUPS

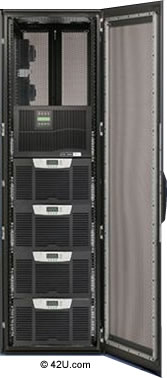

Rack w/ Eaton Powerware BladeUPS
Rack w/ BladeUPS

BladeUPS UPS System Features & Benefits:

  • Grows with expanding IT applications using scalable architecture

  • Featured Article
    Eaton Powerware BladeUPS wins 2007 Product of the Year, Gold Award



    Read more >>>

  • Reduces operating expenses with more flexible, compact configuration options than traditional end-of-row solutions
  • Extends battery life and optimizes battery recharge time with ABM technology
  • Reduces single point of failure with an intelligent bypass design to eliminate human error
  • Simplifies service with hot-swappable battery and electronics modules
  • Protects mission-critical applications with innovative backup power technology designed specifically for high-density computing environments
  • Supports the constant moves, adds, and changes (MAC) of today's dynamic data center with a modular, scalable, and flexible backup power architecture
  • Conserves valuable rack space with 12 kW of power in only 6U of rack height, including batteries
  • Accommodates growth by enabling building-block upgrades from 12 kW to 60 kW in a single rack enclosure
  • Reduces energy costs and cooling needs through best-in-class efficiency performance
  • Delivers highest levels of reliability at the rack with patented Powerware Hot Sync paralleling technology and intelligent bypass design, field proven in thousands of large data centers globally
  • Simplifies installation and service with true plug-and-power connections and hot-swappable batteries and electronics modules
  • Increases battery life through ABM technology, resulting in more uptime and fewer battery replacements

Click here for a Free UPS System Project Evaluation

Powerware BladeUPS Technical Specifications:

General CharacteristicsPower Rating12 kW per UPS Module
Efficiency>97%
Heat Dissipation<371W/1266 BTU/hr. at 100% rated load
CoolingFan cooled, temperature microprocessor monitored; front air entry, rear exhaust
Audible Noise, Normal Operation50 dBA at 1 meter
Altitude Before Derating1000 meters (3300 ft. ASL)
Input CharacteristicsInput Voltage208 Vac and 400 Vac models
Voltage Range208V model: 180 to 265 Vac
400V model: 311 to 519 Vac
Frequency Range50 or 60 Hz, ±5 Hz
Input Current Distortion<5% with IT loads (PFC power supplies)
Input Power Factor>.99 with IT loads (PFC power supplies)
Inrush CurrentLoad dependent
Input RequirementsThree-phase, four wire + ground
Bypass SourceSame as input, (single feed)
Generator CompatibilityFast sync slew rate for generator synchronization
Output CharacteristicsRated Output Voltage 208V model: 180 to 255 Vac, Ph to Ph
400V model: 180 to 240 Vac, Ph to N
 Output Configuration Three-phase, four wire + ground
 Output Frequency (nominal) 50 or 60 Hz auto-detection on startup
 Frequency Regulation 0.1 Hz free running
 Load Power Factor Range Lagging: 0.7
Leading: 0.9
 Total Output
Voltage Distortion
 <3% with IT loads (PFC power supplies)
<5% non-linear or non-PFC power supplies
Battery CharacteristicsBattery Type VRLA - AGM
 Battery Runtime (Internal) 13 minutes at 50% load
4.8 minutes at 100% load
 Battery String Voltage 240 Vdc
 Battery Test Automatic battery test standard (remote scheduling capable).
Manual battery test from front display
 Battery Recharge Profile ABM three-stage charging technology
 Battery Cut-off Voltage Variable from 1.67 VPC at <5 min. runtime to 1.75 VPC at >90 min. runtime
 Battery Low Condition Announced with alarm
 Extended Battery Capability Yes, add up to four additional 3U battery enclosures (~34 min at 100% load, >1 hour at 50% load)
Physical CharacteristicsDimensions (HxWxD)
UPS

EBM


10.3 (6U) x 17.4 x 26.0 inches
267 x 442 x 660 mm

5.2 (3U) x 17.2 x 26 inches
132 x 437 x 660 mm

 Note:
Total Chassis Weight
without batteries or
electronics
Total Chassis Weight
with batteries or
electronics
 100 lb. (46 kg)


307 lb. (140 kg)

 Total UPS Weight without Batteries 135 lb. (61 kg)
 Total UPS Weight with Batteries 307 lb. (140 kg)
 EBM Weight 170 lb. (77 kg)
Communications and User InterfaceSoftware Compatibility UPS ships with Software Suite CD containing LanSafe power management software and trial version of PowerVision
 X-Slot Bays Two available for the cards listed below
 Operating Temperature Optional X-Slot Communication Cards ApplicationPowerware Card
WEB - TCP/IPConnectUPS-X Web/SNMP Card
Modbus RTUModbus Card
IBM eServer
(i5, iSeries,
or AS/400)
Relay Interface Card
N/O, N/C
(dry contacts)
Industrial Relay Card
ParallelPowerware Hot Sync CAN Bridge Card
Remote MonitoringModem card
 Control panel LCD Two lines by 20 characters
Four menu-driven interface buttons
Four status at a glance LEDs
 Multi Language English standard; 20 other languages available
 Configuration Changes User capable, firmware auto configures
 Dry Contact Inputs Two, user configurable
 Dry Contact Outputs One, user configurable
CertificationsSafety 208V model: UL1778, cUL
400V model: CE
 EMI 208V model: FCC Part15 Class A
400V model: EN62040-2 Class A
 Surge Protection ANSI C62.41, Cat B-3
 Hazardous materials (RoHS) EU Directive 2002/95/EC Category 3 (4 of 5)
Powerware BladeUPS Models

DescriptionInput ConnectorOutput ConnectorPart Number
Powerware BladeUPS 12kW 208V w/60A 5W in/5W outIEC309-60, 5 WireIEC309-60, 5 WireZC1212200100000
Powerware BladeUPS 12kW 208V w/60A 5W in/5W out w/SNMPIEC309-60, 5 WireIEC309-60, 5 WireZC1212210100000
Powerware BladeUPS 12kW 208V w/60A 5W in/4W out IEC309-60, 5 WireIEC309-60, 4 WireZC1212600100000
Powerware BladeUPS 12kW 208V w/60A 5W in/4W out w/SNMPIEC309-60, 5 WireIEC309-60, 4 WireZC1212610100000
Powerware BladeUPS 12kW 208V w/60A 5W in/ RPM ONLYIEC309-60, 5 WireRequires RPMZC1212000100000
Powerware BladeUPS 12kW 208V w/60A 5W in/ RPM ONLY w/SNMPIEC309-60, 5 WireRequires RPMZC1212010100000
Powerware BladeUPS 12kW 208V w/parallel cordTo BladeUPS Bar To BladeUPS BarZC121P060100000
Powerware BladeUPS 12kW 208V w/parallel cord w/SNMPTo BladeUPS Bar To BladeUPS Bar ZC121P061100000
