NTI VOPEX VGA Video Splitter
NTI Video Splitter / Monitor Splitter

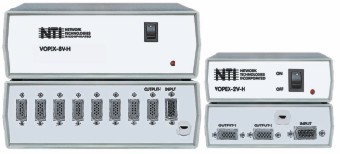

VOPEX-8V-H & VOPEX-2V-H VGA Video Splitters

NTI VGA SPLITTER / VIDEO SPLITTER

Use One PC to Display the Same High-Resolution Image on 100 Monitors

Also known as VGA splitter, video splitter, VGA video splitter, video distribution amplifier, PC video splitter, y connector for monitor, monitor splitter, multiple monitor, video port expander.

NTI VGA Splitter / Video Splitter Features & Applications

These VGA video splitters (video port expanders) enable 2, 4, 8 or 16 VGA or SVGA monitors to be driven by a single PC. The same image is displayed on all monitors. By using our VEXT-xx cables, standard VGA can be extended 500 feet and SVGA can be extended to 250 feet. Ideal for presentations or classrooms. Drive 100 monitors by cascading. Has locking connectors for cables. The hi-resolution unit has 150 MHz bandwidth and its part number ends in "-H". The low-cost unit has 50 MHz bandwidth and its part number ends in "-50M".

-H SERIES SPECIFICATIONS	-50M SERIES SPECIFICATIONS
Male 15 pin HD input connectors. Female 15 pin HD output connectors. Cascade 2, 4, 8, and 16 port units to drive up to 100 monitors. Bandwidth is 150 MHz. All outputs individually buffered. Locking connectors for cables. 110 or 220 VAC at 50 or 60 Hz. 1900x1200 resolution with no degradation. 3-foot multicoax interface cable included.	Male 15 pin HD input connectors. Female 15 pin HD output connectors. Cascade 2, 4, 8, and 16 port units to drive up to 100 monitors. Bandwidth is 50 MHz. All output individually buffered. Locking connectors for cables. 110 or 220 VAC at 50 or 60 Hz. 1024x768 resolution with no degradation. 6-foot VGA interface cable included.

NTI VGA Splitter / Video Splitter
NTI Part #	# of Ports	Size WxDxH(In)
VOPEX-2V-H	2	4.9x5.2x1.65
VOPEX-4V-H	4	8x6.2x2.6
VOPEX-8V-H	8	8x6.2x2.6
VOPEX-16V-H	16	10x7.5x3.3
VOPEX-2V-50M	2	4.9x5.2x1.65
VOPEX-4V-50M	4	8x6.2x2.6
VOPEX-8V-50M	8	8x6.2x2.6
VOPEX-16V-50M	16	10x7.5x3.3
