NTI  SE-13W3 Sun Video Switch

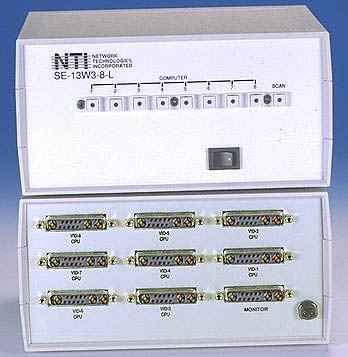

SE-13W3-8-L (Front & Back)
SUN Video Switch

NTI Sun 13W3 Video Only Switch

SHARE ONE MONITOR AMONG MULTIPLE SUN COMPUTERS

Also known as SUN video switch, SUN monitor switch, SUN switch, SUN video only switch, video only switch, share switch, video switches. Features & Applications Sun video switch allows one monitor to be switched to multiple Sun SPARCs

• Ideal for classrooms and boardrooms.
• Eliminate redundant monitors.
• Interconnect NTI switches & splitters for complex applications.
• Rack mount available for units with 4 or more ports.
• 110 or 220 VAC at 50 or 60 Hz.
• A 6-foot multicoax cable included with 2 port units.

Specifications For 2 Port Models	Specifications For 2 Port-TTL Models	Specifications For 4-16 Port Models
Monitor Crisp & clear 1900x1200 resolution. Female 13W3 connectors. Bandwidth is 300 MHz. Control Touch buttons on front with LED indication of port selection.	Monitor Crisp & clear 1900x1200 resolution. Female 13W3 connectors. Bandwidth is 300 MHz. Control Female 9 pin D connector for remote control. Pin 1=Ground. Pin 2=TTL or contact closure signal. LED indication of port selection	Monitor Crisp & clear 1900x1200 resolution. Female 13W3 connectors. Bandwidth is 150 MHz. Control Touch buttons on front with LED indication of port selection. These optional control methods are available: Option Sold Separately: RS232 Option Rackmount Option External UL Transformer Option

AVAILABLE SIZES
Connectors	NTI Part #	# of Ports	Video Cable	Size (In.) WxDxH	Rack Size
					Rack Units	WxDxH (In.)
13W3: All Female	SE-13W3-2	2	SUCEXT-xx (1900x1200)	6x6.2x3.2	Not Available
	SE-13W3-2-TTL	2		6x6.2x3.2	Not Available
	SE-13W3-4-L	4		6x6.2x3.2	1RU	19x12x1.75
	SE-13W3-8-L	8		6x6.2x3.2	1RU	19x12x1.75
