Minicom Smart IP Link:
Hardware remote KVM IP access for
single or multiple computers
The Smart IP Link is an economical,
hardware-based, remote KVM access solution. It is uniquely tailored
for users and IT professionals who wish to add a remote access link to
their computers or servers at a minimal investment, without having to
compromise on security, quality and functionality.

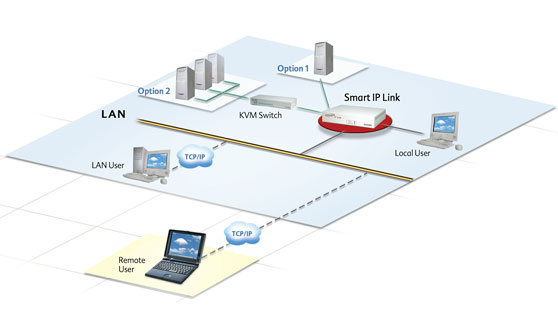

With the Smart IP Link you can easily
and securely manage a single computer or dozens of servers, from any
location using standard LAN, WAN or Internet connections.
Minicom Smart IP Link (rear view)
The Smart IP Link offers a wealth of
features including highest security standards;128 bit SSL encryption,
Java based operation as well as remote control of different serial
devices, superior video and mouse synchronization and user- friendly
functionality - all for an unrivaled price-performance ratio.
Minicom Smart
IP Link Downloads & Manuals
|
Minicom Smart IP Link Specifications |
| Operating System |
Host
Computer - Win 3.1, 9X, 2000, XP, NT4, 2003 Server, Dos, Novell
3.12 - 6, Linux
Client Computer - Win 9X, 2000, XP,
NT4, 2003 Server, Linux, Mac, 10X
Internet browser with full Java
support |
| Resolution |
Host
Computer - Up to 1280x1024 @75Hz
Client Computer - Recommended
resolution should be higher than resolution on local computer |
| Unit
to local KVM connection |
Screen - HDD15, Keyboard/Mouse - MiniDin6 |
| Unit
to computer / switch connection |
3 in
1 Cable 1.8m (supplied with system)
|
|
Video and Mouse Synchronization |
Both
auto and manual modes |
|
Connections |
Ethernet - RJ45
Serial DB9 10/100 Mbit/sec auto sensing |
|
Weight |
Product - 1.1 Kg / 2.42 lb
Shipping - 2.35 Kg / 5.17 lb |
|
Dimensions |
Product - 43Hx175Dx213Wmm / 1.69Hx6.89Dx8.38W"
Shipping - 115Hx255Dx350Wmm / 4.52Hx10.0Dx13.78W" |
|
Power supply |
Internal Switching 85 - 265 VAC 50 /
60 Hz |
|
Operating Temperature |
0°C
to 40°C/32° to 104°F |
| Warranty |
3
years |
|
Minicom Smart IP Link Ordering
Information |
| Smart IP
Link |
0SU21032 |
