Adds Remote KVM IP Access to Existing Servers
Smart IP Access is all you need to add KVM control via IP to your servers. Smart IP Access provides remote KVM access via LAN, WAN, or Internet connections to either a single server or to mixed server environments via an existing KVM switch.
Allows Serial Remote Control over Servers and Devices
Smart IP Access provides built in remote control over two Serial devices. For example, Serial control of power management allows you to reboot remotely and to power servers on and off from any location.
Universal Compatibility
Compatible with all Minicom KVM switches, Smart IP Access also provides hundreds of predefined legacy KVM switch definitions, allowing easy configuration for remote KVM access to most servers.
Military Standard Security
Smart IP Access offers a variety of encryption protocols to prevent security breaches, including SSL (up to 128-bit). In addition, the dual IP connection can be deployed to take advantage of an existing network means of redundancy or security.
Minicom Smart IP Access Features and Benefits:
- Adds remote KVM control via IP to servers, computers, and KVM switches
- Remote Serial control over routers and other devices
- High security and redundancy capabilities
- Plug & Play compatibility with legacy KVM systems
- 3 year warranty

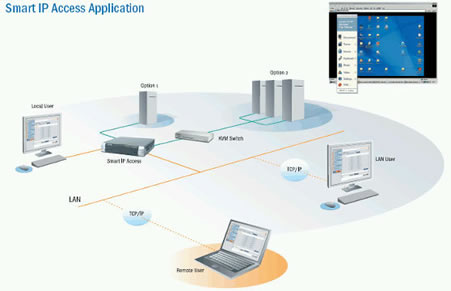

Minicom Smart IP Access Diagram
| Minicom Smart IP Access Technical Specifications |
Operating systems
| Host Computer: Win 3.1, 9X, 2000, XP, NT4, 2003 Server, Dos, Novell 3.12 - 6, Linux | Client Computer: Windows computer with IE 5.5 or higher and ActiveX |
| Resolution
| Host Computer: 1600x1200 @85Hz | Client Computer: Recommended resolution should be higher than resolution on local computer |
| Video and Mouse Synchronization | Both auto and manual modes
|
| Connections | Ethernet - 2 X RJ45 - 10/100 Mbit/sec autosensing
Serial - 2 X RJ45
Local KVM connection - Screen HDD15, Keyboard./Mouse - MiniDin6
Computer / switch connection - Screen HDD15, Keyboard./Mouse - MiniDin6 3 in 1 Cable 1.8m (supplied with system) |
| Weight | 1.204kg/ 2.65lbs |
| Dimensions | 44H X 230D X 215Wmm / 1.7x 9x8.5in |
| Power supply | Internal Switching 85 - 265 VAC 50 / 60 Hz |
| Operating Temperature | 0°C to 40°C/32°F to 104°F |
| Minicom Smart IP Access Ordering Information | Part Number | Online Pricing |
| Smart IP Access | 0SU51068A |  |
