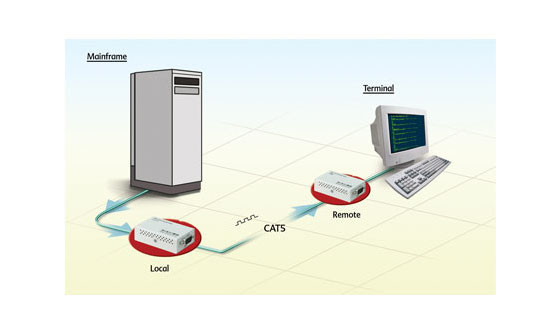

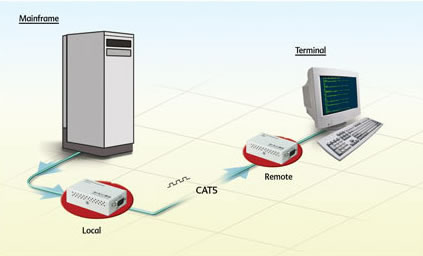

Minicom CAT5 RS-232 Extender



The CAT5 RS-232 Extender is a low cost, hardware-based solution providing remote access and control of any RS-232 protocol device. With regular RS-232 devices you are limited to an immediate area of control. The CAT5 RS-232 Extender extends control to over 1000m/3,300 ft. This provides you with a tremendous amount of flexibility in your topology. Now you can place RS-232 devices in any location you want and control them remotely. The RS-232 Extender also provides full duplex transmission and is compatible with all RS-232 protocols.

Multiple Application

Thanks to its powerful functionality the CAT5 RS-232 Extender is an excellent solution for a variety of applications and environments. For example:

• Place a touch screen outdoors and have it control a computer indoors (with KVM extender)

• Control a third party presentation unit remotely

• Transfer data or files between computers

Easy To Install

Installing the Extender is quick and easy. Thanks to its simple architecture all you do is plug and play! The system itself is composed of two units both made of sturdy metal casing:

• Local Unit

• Remote Unit

The two units are connected via standard CAT5 cable. Because the CAT5 is extremely thin it is easy to install and does not create cable clutter. A single power supply is used to power the system and it can be placed at either end depending on where it is most convenient.

Features and Benefits

• Full-duplex data communication

• Sends RS-232 data at 57.6 kbps up to 1000 m/3,300 ft

• Compatible with all RS-232 protocols

• Low cost solution

• Advanced CAT5 technology – easy to install low density cabling

• Pure hardware solution – real time data transfer, no software conflicts

• Easy plug-and-play installation

• Single power supply placed at either end

• 3 year warranty

Minicom CAT5 RS-232 Extender Downloads & Manuals

Minicom CAT5 RS-232 Extender Technical Specifications
Model	Local Unit	Remote Unit
System Cable	CAT5 UTP
Maximum Distance	1000m/3,300ft
Connection	RJ45 System Jack Power DB9F-RS232	RJ45 System Jack Power DB9M-RS232
DB9 Pin Out	Pin 1 - Pin 2 - Received Data Pin 3 - Transmit Data Pin 4 - Data Terminal Ready Pin 5 - Signal Ground Pin 6 - Data Set Ready Pin 7 - Request To Send Pin 8 - Clear To Send Pin 9 -
Dimensions	23Hx45Dx75Wmm / 0.91Hx1.77Dx2.95W"	23Hx45Dx75Wmm / 0.91Hx1.77Dx2.95W"
Weight	120g	120g
Power Supply	Power Adapter 12VDC 2A
Shipping Weight	680g
Operating Temp	0° to 40° C
Storage Temp	-40 - 70° C
Warranty	3 Years



Minicom CAT5 RS-232 KVM Extender Ordering Information
CAT5 RS-232 Extender	0VS22013
