KoldLok Raised Floor Grommets

Upsite KoldLok
Raised Floor Grommets

Seal cable openings with KoldLok Raised Floor Grommets (often spelled: KoldLock)

KoldLok Grommets Cost Benefits:

• Increases existing cooling unit capacity
• Reduces the need to purchase additional cooling units
• Improves equipment reliability and extends equipment life
• Increases static pressure under the raised floor and improves cool air delivery through perforated tiles or floor grates
• Facilitates Cold Aisle/Hot Aisle best practices

Sealing cable openings with KoldLok products provide a cost-effective airflow and thermal management solution. KoldLok Raised Floor Grommets will:

• optimize your current cooling infrastructure
• mitigate equipment heat loads
• increase data center reliability

Your IT equipment is generating more heat than ever and the cost to cool that equipment is increasing. According to The Uptime Institute, Inc. electricity consumed by IT equipment is the primary driver of data center infrastructure costs. Based on measurements at multiple data centers, 50 - 80% of valuable conditioned air is not reaching the air intake of IT equipment due to unsealed cable openings. This lost air, known as bypass airflow, contributes to equipment hot spots, cooling unit inefficiencies, and increasing infrastructure costs. Sealing cable openings is an essential component of IT equipment reliability and availability.

By installing KoldLok Raised Floor Grommets, you can optimize the effectiveness of your existing cooling equipment and manage the increasing heat loads. The patented KoldLok sealing system specifically addresses bypass airflow and its detrimental effects on data center cooling.

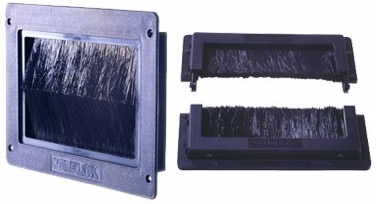

KoldLok Integral Raised Floor Grommets:

KoldLok Raised Floor Grommets Applications:

Airflow management device designed to seal cable openings in new raised-floor systems prior to the installation of communication or power cabling.

• The KoldLok Split Integral Grommets allow tiles to be moved without capturing cables
• The KoldLok Grommets integrate with the raised-floor static dissipation system
• 32 square inch usable cabling area accommodates a variety of cabling requirements, including 100 amp power connectors
• The KoldLok Grommets satisfy NFPA 75 Section 5-4.4 requirement by self-dressing the raw metal edges of raised-floor tile cable cutouts
• The KoldLok Grommets contain no loose or partially fastened parts, which can become separated or fall through the raised floor.
• Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment (RoHS)

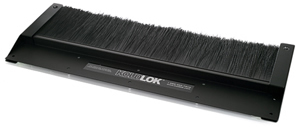

KoldLok Surface Mount Raised Floor Grommets:

KoldLok 2020 Surface Mount Raised Floor Grommets

KoldLok 2030 Surface Mount Raised Floor Grommets - Surface L

KoldLok 2040 Surface Mount Raised Floor Grommets - Surface XL

KoldLok Surface Mount Raised Floor Grommets Applications:

Designed to seal a variety of existing raised-floor tile cutouts and allow the flexibility of removing tiles without capturing cables. Item Nos. 2030 and 2040 allow for larger sealing capacities.

• The Surface Mount Grommet facilitates re-cabling and allows tiles to be moved without capturing cables
• The Grommets integrate with the raised-floor static dissipation system, providing 1 GigaOhm of resistance.
• The Grommets contain no loose or partially fastened parts, which can become separated or fall through the raised floor.
• Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment (RoHS)

Designed to seal a variety of existing larger openings, with the added flexibility of modification for unique openings.

• The Grommets can be modified to seal unique cable openings
• The Grommets integrate with the raised-floor static dissipation system
• Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment (RoHS)

• The new design is compatible with both 24 inch and 600 mm tiles.
• The Grommets can be modified to seal unique cable openings
• The Grommets integrate with the raised floor static dissipation system, providing 1 GigaOhm of resistance
• The Grommets contain no loose or partially fastened parts, which can become separated or fail through the raised floor

Also consider HotLok Blanking Panels for a cost effective way to insure proper airflow within your server racks.

Is the KoldLok the best raised floor grommets solution for your cooling needs?

Our engineers can help you select the best low cost solution for your cooling needs.
Click here or Call 1-800-638-2638 for a free cooling project consultation.

Upsite KoldLok
Raised Floor Grommet

The KoldLok Grommets offer many benefits:

Key Features:

• Robust, Penetrable Raised-Floor Seal- 92% to 100% seal with >25,000 filaments per grommet
• Minimum Sized Opening- Sized to pull 100amp assembly up through 12" under-floor
• Trims Sharp Edges in Floor Tile Cut Outs (Integral)-  NFPA requires metal edges be sealed for cables & people
• Dissipates Static Charge Buildup in Cables- 1 Giga Ohm resistance dissipates static charge thru floor
• Install It & Forget It- Eliminates labor other seals require to regularly police
• Several Models to Seal Most Raised Floor Openings- Openings Sealed: New / Existing / Large / Custom
• RoHS compliant
