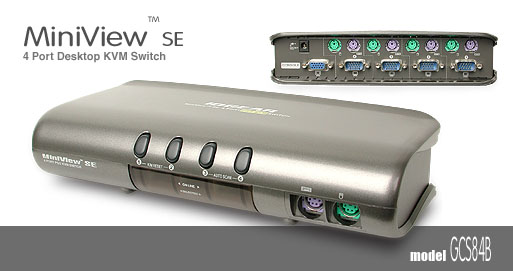

MiniView™ SE GCS84B KVM Switch - MiniView™ SE 4 Port Desktop KVM
Switch, PS/2
A faster Way To Connect! Once again, IOGEAR raised the bar on quality
KVMs. These desktop PS/2 KVMs feature the latest in micro-design and
technology. Setup is fast and easy; simply plug cables into their
appropriate ports. The 2 PS/2 console ports are on the front of the
unit for easy and convenient access. IOGEAR’s MiniView™ SE GCS82A provides
two convenient methods to access the connected computers: use
push-button selection switches, located on the unit's front panel; or
type Hot Key combinations from the keyboard. There is no better way to
save time and money than with IOGEAR’s MiniView™ SE GCS82A.
Cables Included
|
|

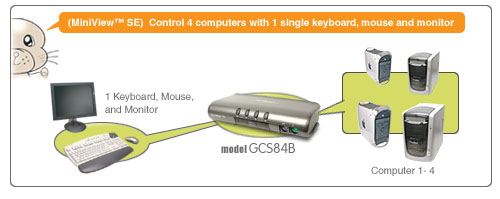

IOGEAR GCS84B Diagram and Application |
 |
|
IOGEAR GCS84B Features and Benefits |
- Use one keyboard, monitor and mouse to control up to four PCs
- Works with PS/2 compliant computers
- Operating System independent
- Plug-n-Play monitor support
- MiniView™ switches support video resolutions up to 2048 x 1536
- Self or Bus-powered
- No software required
- Built in AutoScan mode
- LED's allow for easy status monitoring
- Increases desk space and productivity
- Decreasing power and equipment costs
- Trim-line, compact design
- 3 Year Limited Warranty
|
 |
 |
 |
| PS/2
console placed in front for easy access |
No
DIP switches, software or power supply needed |
VSE:
Patented Video Signal Enhancement technology supports ultra high
resolution up to 2048 x 1536 |
|
|
IOGEAR GCS84B Requirements |
- PS/2 Enabled/Compliant Computer System
|
|
IOGEAR GCS84B Package Contents |
- 1 Miniview SE 4-Port KVM switch
- 4 sets of premium bonded KVM cables
- 1 installation manual
- 1 quick start guide
- 1 product registration card
|
|
IOGEAR GCS84B Specifications |
|
Function |
GCS84B |
|
Computer Connections |
|
Daisy Chain or Cascading |
64 (External power supply may needed) |
|
Direct |
4 |
|
Console Connectors |
|
Keyboard |
1 x 6 pin mini-DIN Female (PS/2) |
|
Monitor |
1 HDB-15 Female (Std. VGA/SVGA)- |
|
Mouse |
1 x 6 pin mini-DIN Female (PS/2) |
|
CPU Connectors |
|
Keyboard |
4 x 6 pin mini-DIN Female (PS/2) |
|
Monitor |
4 HDB-15 Male (Std. VGA/SVGA) |
|
Mouse |
4 x 6 pin mini-DIN Female (PS/2) |
|
Dimensions |
|
Height |
1.7 |
|
Length |
3 |
|
Width |
8 |
|
Emulation |
|
Keyboard |
PS/2; AT |
|
Mouse |
PS/2 |
|
Housing |
|
Case |
Metal |
|
LEDs |
|
On Line |
4 |
|
Selected |
4 |
|
Port Selection |
Pushbutton Switch / Hot Keys |
|
Power |
|
Amps |
40mA (Max.) |
|
Voltage |
DC 9V |
|
Power Consumption |
DC 9V 360 mW (Max.) |
|
Scan Interval |
5 sec. |
|
Video Resolution |
2048 x 1536 (Max.); DDC/ DDC2B/ DDC2AB |
|
Weight |
1.55LBs |
